Hantek TO1154D is a professional, portable digital oscilloscope that combines high measurement precision with exceptional functionality. The device is ideal for both laboratory use and fieldwork, offering mobility without compromise.

Key features:

• 4 analog channels – enable simultaneous analysis of multiple signals.
• 150 MHz bandwidth – precise representation of even complex waveforms.
• Sampling rate up to 1 GSa/s – fast and accurate diagnostics of electronic circuits.
• Built-in digital multimeter – voltage, current, and resistance measurements without additional equipment.
• Time base adjustment: 2 ns/div – 100 s/div and voltage range: 2 mV/div – 10 V/div – full control over measurement parameters.
• 20 MHz low-pass filter – eliminates interference for clean and accurate results.
• Multiple acquisition modes – normal, averaging, peak detect, tailored to signal characteristics.
• Precise triggering – automatic, normal, and single modes for synchronizing dynamic signals.
• Compact and portable design – perfect for field applications.

The Hantek TO1154D is a reliable tool for electronics engineers, service technicians, and electronics enthusiasts who need an oscilloscope that combines precision, functionality, and ease of use.

Hantek TO1000 Series Oscilloscopes – a Multifunctional Measurement Tool

The Hantek TO1000 oscilloscopes are versatile, portable devices that combine a wide range of measurement functions, making them suitable for electronics, automation, and automotive applications alike. Thanks to their compact design, large memory depth, and advanced features, the TO1000 series is a reliable tool for both professionals and hobbyists.

Key features:

Two- or four-channel digital oscilloscope with memory:

• Bandwidth up to 250 MHz
• Sampling rate 1 GSa/s
• Memory depth 8 Mpts
• 42 automatic signal measurements
• Wide selection of trigger modes: edge, slope, pulse width, video, timeout, and others

Digital multimeter function:

• Measurement of AC/DC voltage, current, resistance, capacitance
• Diode test and continuity test
• Data logging and trend graph generation for long-term monitoring

Mobile and rugged design:

• Built-in stand allowing the device to be positioned during operation
• Construction resistant to drops and shocks

Long operating time and fast charging:

• Built-in removable 10,000 mAh lithium battery for extended operation
• Support for 18 W fast charging and compatibility with USB-C mobile chargers and power banks

Technical specifications

Manufacturer: Hantek
Model: TO1154D
Device type: Digital oscilloscope / scopemeter / tablet oscilloscope
Number of analog channels: 4
Bandwidth: 150 MHz
Sampling rate: 1 GSa/s
Memory record length: 8 Mpts
A/D converter resolution: 8 bits
Vertical resolution: 8 bits

Functions and capabilities

• Built-in digital multimeter
• Built-in function generator
• Handheld, portable oscilloscope
• Built-in 20 MHz low-pass filter
• Autoset function
• Cursor measurements
• Automatic measurements: 43 parameters
• Math functions: +, −, ×, ÷, FFT
• FFT: 1024 points
• Waveform interpolation: sin(x)/x
• Acquisition modes: normal, averaging, peak detect, high resolution
• Waveform display types: dots, vectors

Time base and sensitivity

• Time base range: 2 ns/div – 100 s/div (1–2–5 steps)
• Vertical sensitivity: 2 mV/div – 10 V/div

Triggering

• Trigger modes: auto, normal, single
• Trigger types: edge, pulse, video, slope, timeout
• Coupling selection: DC / AC / GND

Inputs and safety

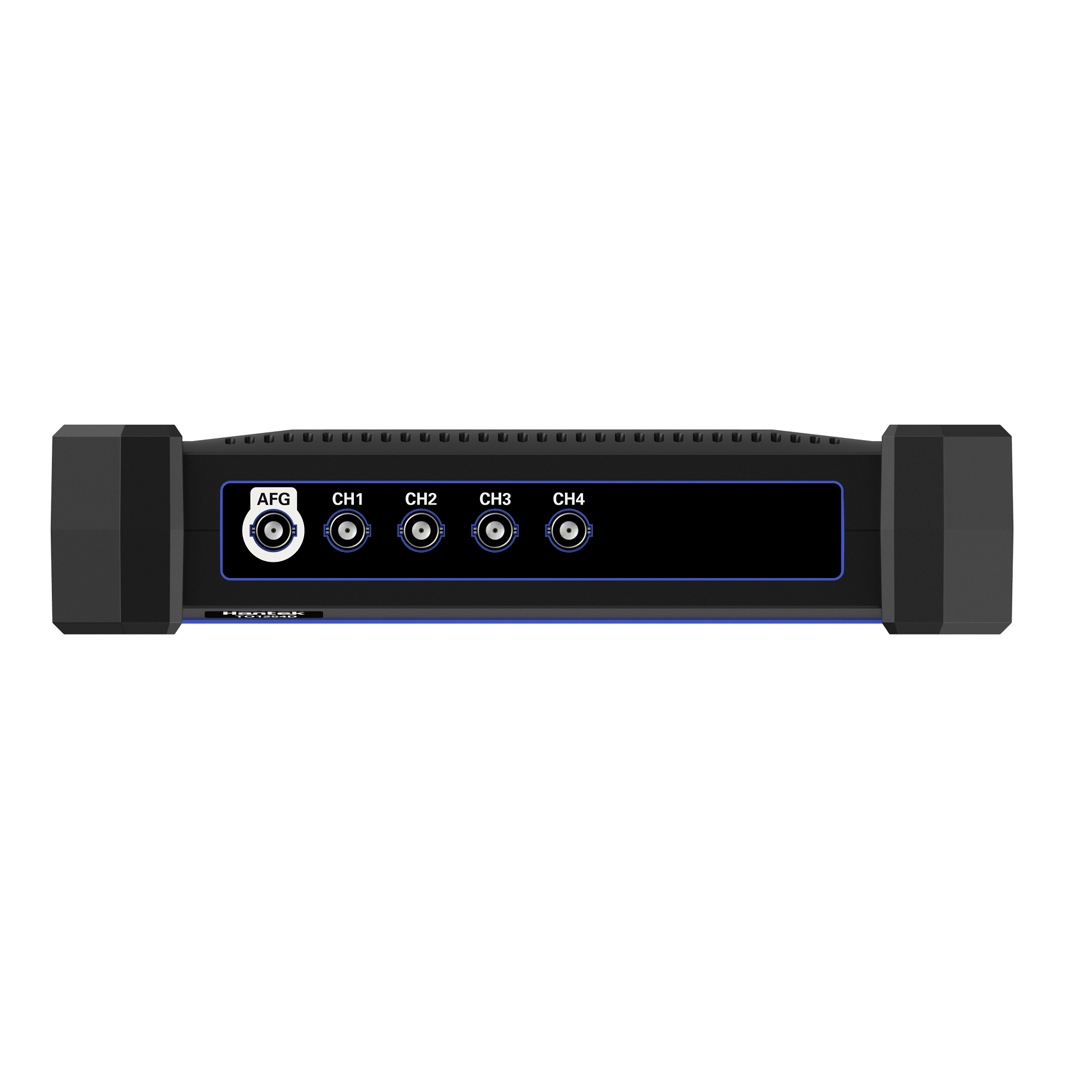

• Input connector: BNC
• Input impedance: 1 MΩ
• Maximum input voltage: 300 Vrms (with 1:10 probe)
• Safety rating: CAT II 300 V

Data recording and storage

• Internal memory storage: waveform recorder
• External storage support:

• • screenshots

  • reference waveforms

  • CSV files

  • binary files

  • settings

• Supported interfaces: USB Host, USB Device

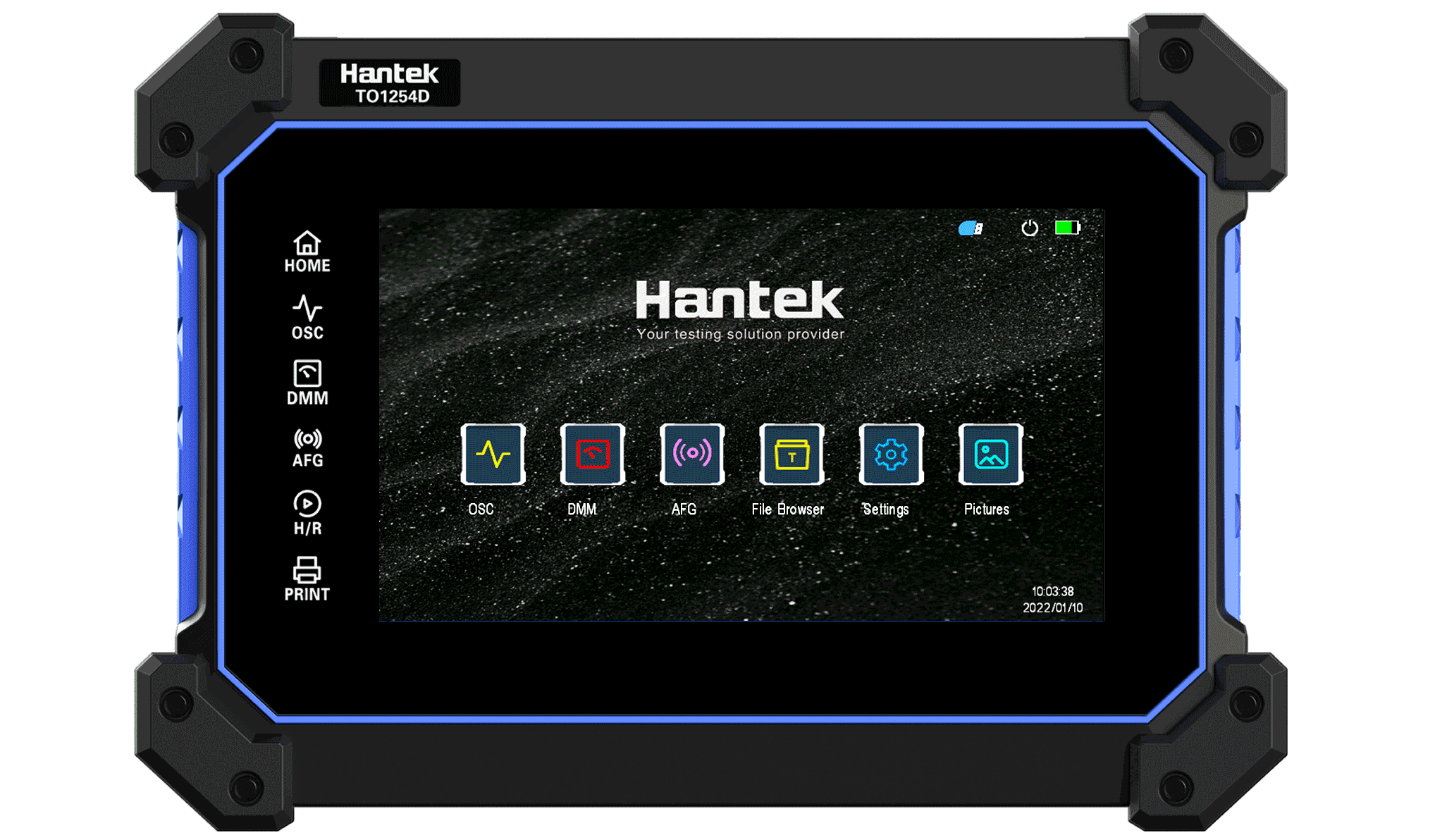

Display

• Type: touchscreen TFT LCD
• Diagonal size: 7 inches
• Resolution: 800 × 480 px
• Gesture support
• Adjustable:

• • display brightness

  • waveform brightness

  • grid brightness

• Adjustable and disableable sleep mode

Power supply

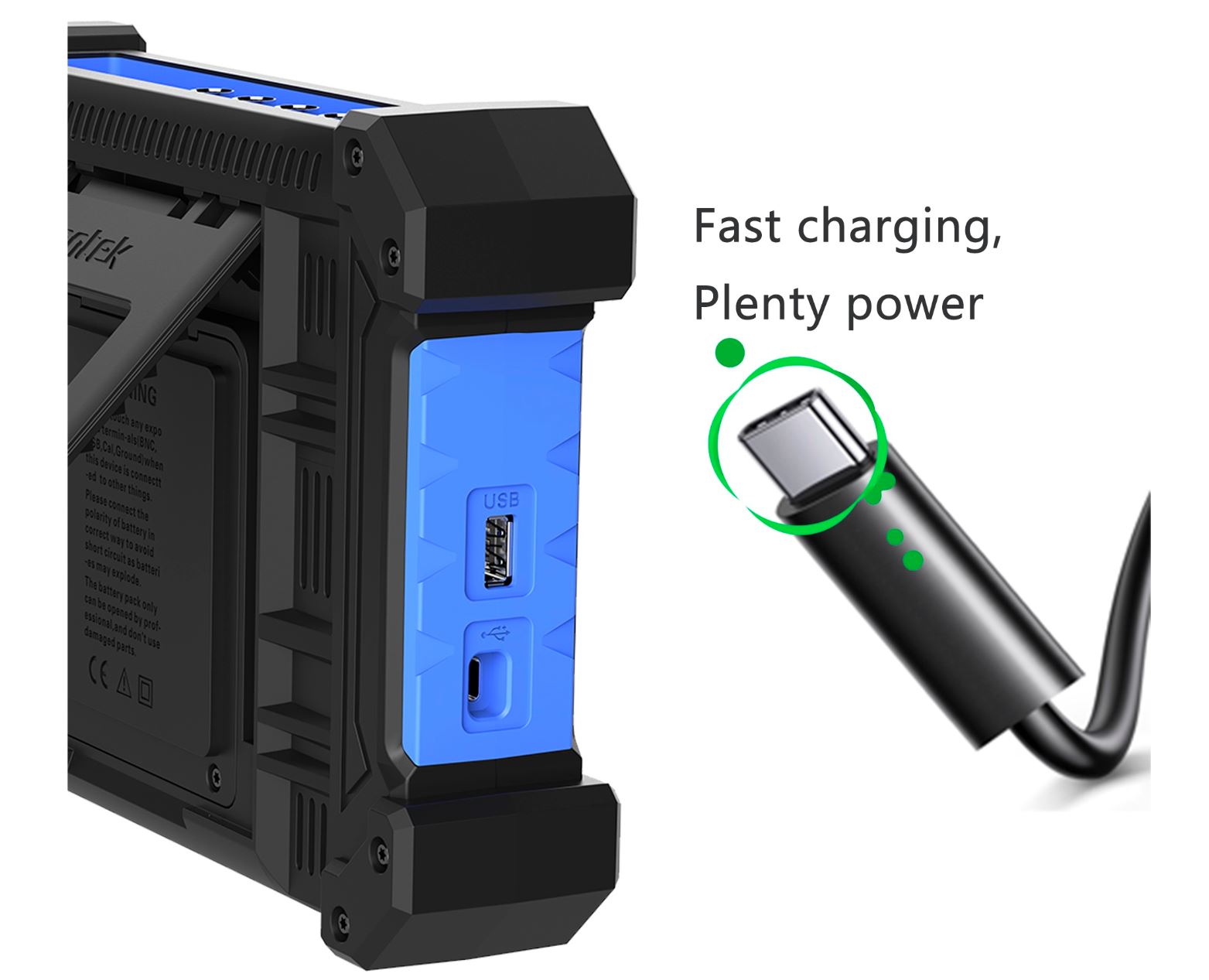

• Charging connector: USB-C
• Input voltages:

  • 5 V / 3 A

  • 9 V / 2 A

  • 12 V / 1.5 A

• Fast charging support
• Built-in battery: 4 × 3.7 V 2600 mAh

Function generator

• Output connector: BNC
  (applies to versions with a built-in generator)

Operating conditions and physical data

• Operating temperature: 0°C – 60°C
• Dimensions: 248 × 176 × 54 mm
• Weight: 1.2 kg

Multimeter specifications

• Type: digital multimeter / universal meter
• Maximum display: 4000 counts
• Measurement functions:

  • AC/DC voltage

  • AC/DC current

  • resistance

  • capacitance

  • diode test

  • continuity test

• Maximum input voltage:

  • AC: 600 V

  • DC: 600 V

• Maximum input current:

  • AC: 10 A

  • DC: 10 A

• Input impedance: 10 MΩ
• Diode test range: 0 – 1.0 V
• Continuity test threshold: < 50 Ω

DC Voltage Measurement

AC Voltage Measurement

Frequency range:

• 4 V – 400 V: 40 Hz – 400 Hz
• 400 V – 600 V: 40 Hz – 100 Hz

DC Current Measurement

Protection:

• Fuse: 200 mA / 25 V
• 4 A and 10 A ranges – unfused

AC Current Measurement

Frequency range: 40 Hz – 400 Hz

Protection:

• Fuse: 200 mA / 25 V
• 4 A and 10 A ranges – unfused

Resistance Measurement

Capacitance Measurement

Package includes:

1 × TO1154D digital oscilloscope
1 × carrying bag / protective case for the oscilloscope and accessories
2 × probes with 1:1 / 1:10 attenuation
2 × BNC to alligator clip probes
1 × test leads for the multimeter
1 × power adapter / charger
1 × USB-C cable for charging and communication with a computer
