Pico WPS500X Maxi Pressure Sensor Kit – PQ038

Pico WPS500X Maxi Pressure Sensor Kit – PQ038

Pico WPS500X is an advanced pressure sensor kit designed for maximum precision and user convenience. It is ideal for professionals who require reliability and accuracy in their measurements.

Features and Benefits:

• WPS500X Pressure Sensor: allows for precise real-time measurements.
• Three measurement ranges: enabling adaptation to different types of measurements.
• Fast response time: provides immediate readings.
• High accuracy: ensures precise results, even in challenging conditions.
• Ergonomic case: offers convenience for storing and transporting the kit.

Technical Specification:

• Measurement range: -15 psi to 500 psi (-1 bar to 34 bar).
• Sampling frequency: up to 1 MS/s.
• Interface: BNC connector.
• Weight: 1.2 kg (sensor), 4 kg (kit with case).

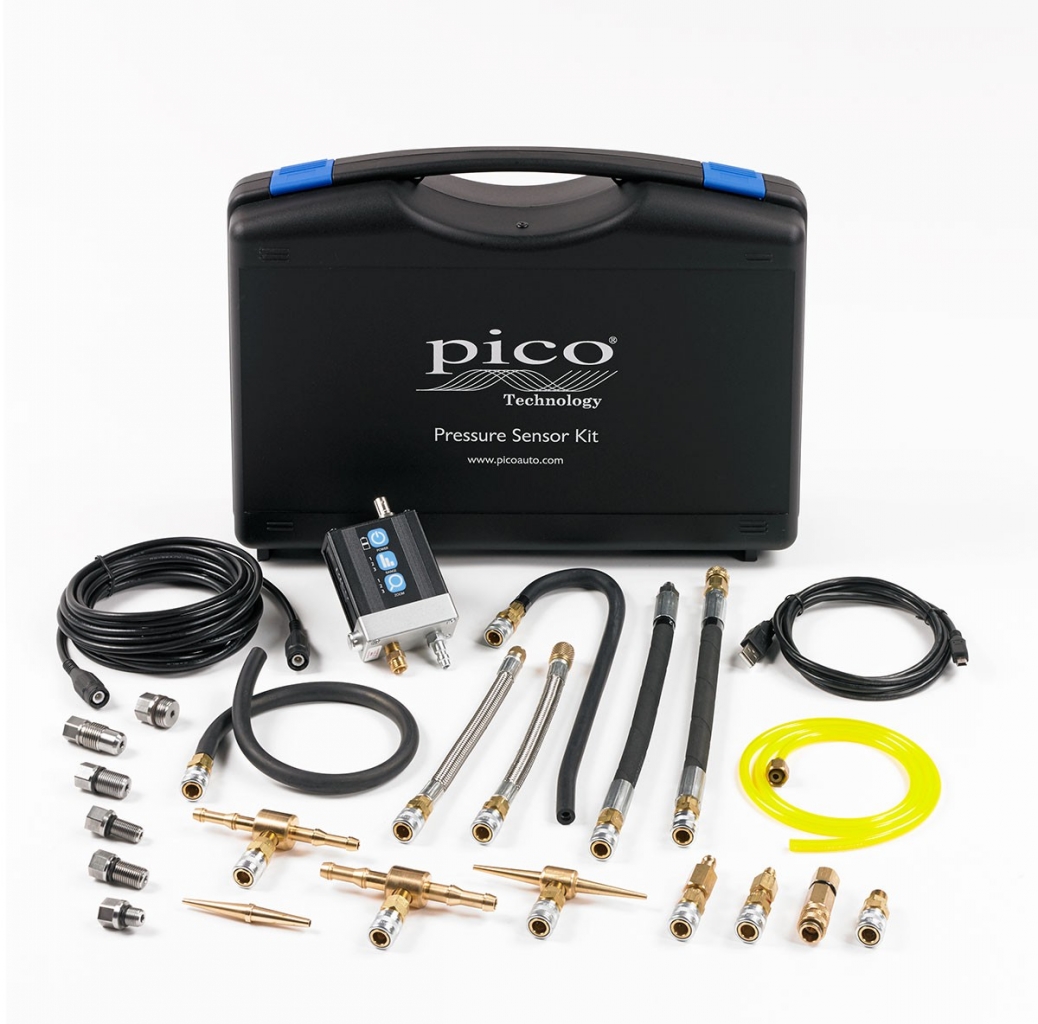

The kit includes:

• WPS500X pressure sensor
• Transport case with foam insert
• Complete range of adapters and cables
• User manual

The Pico WPS500X Maxi Pressure Sensor Kit is a reliable tool for any professional who needs accurate and fast measurements. With its ergonomic design and high precision, it is the perfect solution for automotive workshops and diagnostic laboratories.

Tests that can be performed using the pressure sensor:

Engine:

• Cylinder compression test (cranking)
• Cylinder compression test (idle)
• Cylinder compression test (instant WOT test)
• Intake manifold pressure for gasoline and diesel
• Exhaust gas pressure pulsations
• Exhaust backpressure testing
• Crankcase pressure pulsations
• PCV valve operation under high crankcase pressure
• Camshaft timing evaluation (belt, chain, and driven gear)
• Cylinder head valve seal integrity
• Engine oil pressure testing
• Cooling system pressure assessment: head gasket failure
• Radiator cap evaluation in pressurized cooling systems
• Vacuum pump performance

Turbo:

• Boost pressure assessment (turbocharger variable geometry faults)
• Vacuum circuit and solenoid control
• Gateway operation

Engine maintenance:

• Variable induction system actuator/control integrity test.
• Idle throttle integrity test.
• Cruise control actuators, vacuum circuits, and solenoids.

Powertrain:

• Automatic transmission pressure test
• Automatic transmission regulator pressure test

Fuel:

• Fuel supply pressure, gasoline
• Fuel pressure regulator test, gasoline
• Fuel residual pressure test in the fuel system, gasoline
• Fuel pump/suction pump performance, gasoline and diesel
• Preliminary fuel overpressure, diesel
• Negative fuel priming pressure, diesel
• Fuel supply residual pressure, diesel
• Diesel fuel injector return seal test
• Fuel injector contribution test, gasoline
• Vacuum circuits and solenoid valves controlling “evaporative loss”

Suspension:

• Air suspension pump performance
• Air suspension residual pressure test
• Pneumatic circuits and solenoids controlling air suspension
• Servo test, brake assessment, and integrity test

Mechanics:

• Head gasket
• Broken/blocked valves
• Blocked exhaust / DPF

The kit includes:

Transducer:

• WPS500X (TA071)

Compression:

• Standard compression hose (with universal nozzle) (TA212)
• M10 short reach adapter for standard compression hose (TA213)
• M10 deep reach adapter for standard compression hose (TA214)
• M12 deep reach adapter for standard compression hose (TA216)
• M14 short reach adapter for standard compression hose (TA217)
• M14 deep reach adapter for standard compression hose (TA218)
• M16 Ford Trition adapter for standard compression hose (TA219)
• M18 short reach adapter for standard compression hose (TA220)

Exhaust:

• Exhaust adapter for WPS500X (TA087)

Vacuum:

• Vacuum valve for WPS500X (PP972)
• Vacuum hose adapter for WPS500X (TA085)
• Universal vacuum hose adapter (TA129)

Fuel:

• Fuel hose pressure valve for WPS500X (small) (PP973)
• Fuel hose pressure valve for WPS500X (medium) (PP974)
• Fuel pressure test hose for WPS500, large Schrader valve (TA083)
• Fuel pressure test hose, small Schrader valve (TA117)

Adapters:

• Bleed hose for WPS500X pressure transducer (TA086)
• Foster 2 series 1/8″ connector with valve, male NPT (TA142)
• WPS500X Adapter Set A (PP970)
• WPS500X Adapter Set B (TA250)

Accessories:

• Cable: insulated BNC to insulated BNC 5m (TA081)
• Charging cable: USB A male to mini 5pin 2m (TA130)
• WPS500X pressure transducer user manual (DO157)

Storage:

• WPS500X transport case (PA094)
