OTOFIX IM1

OTOFIX IM1 by Autel

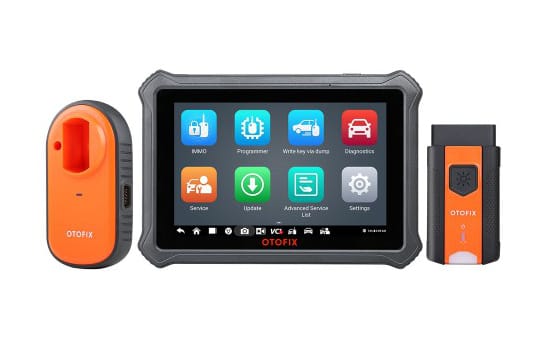

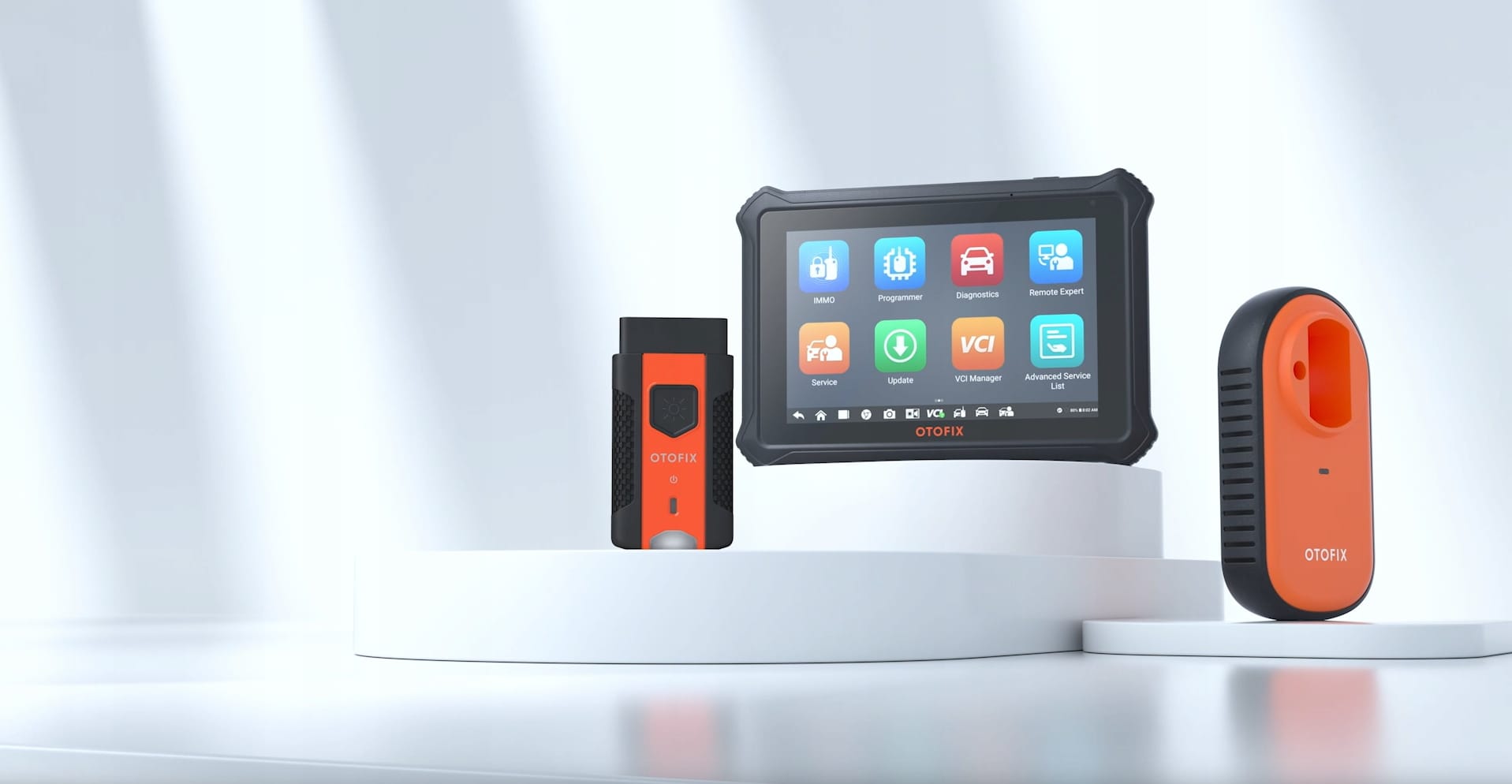

OTOFIX IM1 is a professional and easy-to-use key programming tool that combines high performance with intuitive operation. It allows you to work with immobilizer systems – including key programming via OBD, adding new keys, programming in case of all keys lost, PIN code reading, and remote adaptation. Access to IMMO functions as well as full system diagnostics and service functions requires an active paid subscription. The device price includes only basic immobilizer functionality.

2 year’s of free upgrade!

Device Features:

• Key programming via OBD (including “All Keys Lost” function)
• PIN code reading and writing
• Key adding and adaptation
• Immobilizer (IMMO) support for multiple vehicle brands
• Remote key learning

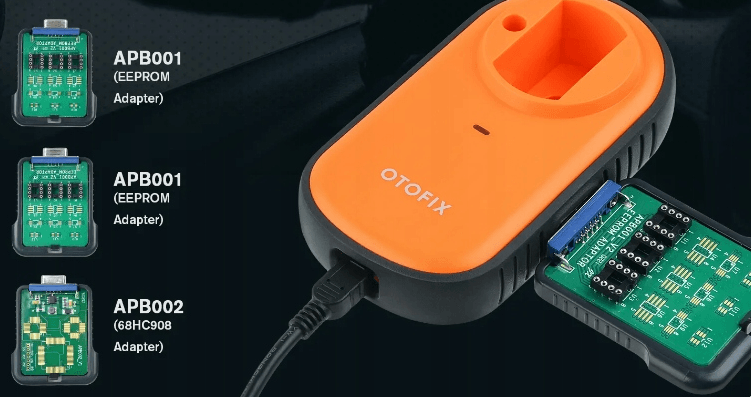

• EEPROM/MCU support (with XP1 adapter)
• Automatic VIN recognition

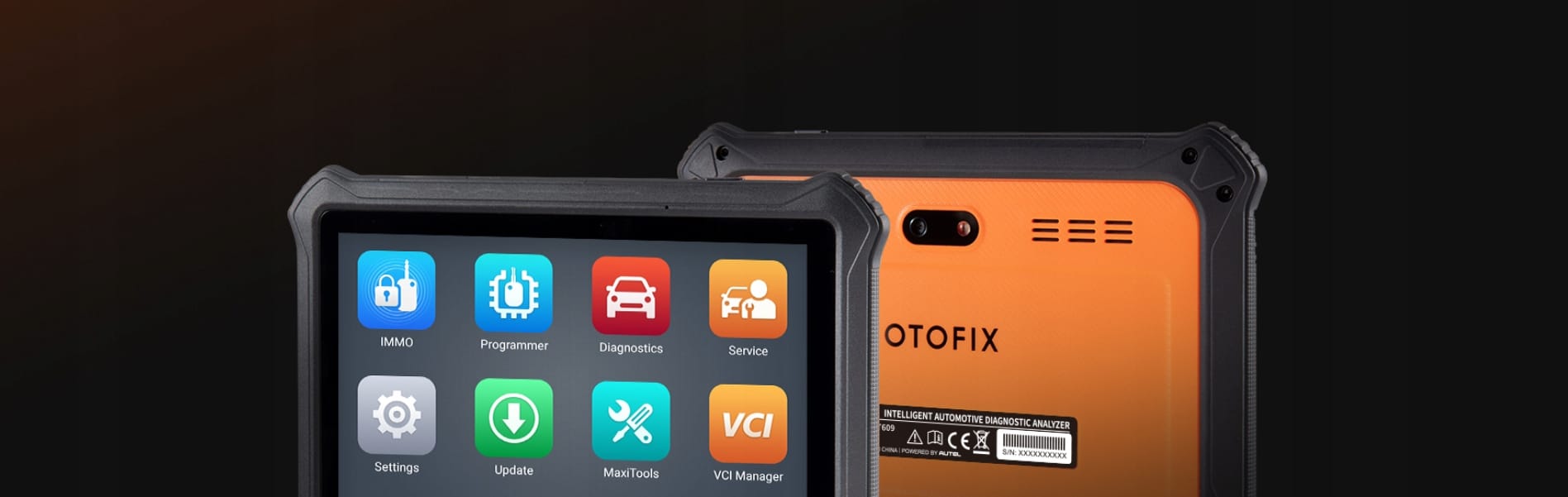

• 7-inch touchscreen, Android system
• Expandable to full diagnostics and service functions (paid subscription)
• Built-in 64 GB memory, fast processor, and high-capacity battery
• Compact, mobile design – ideal for field work

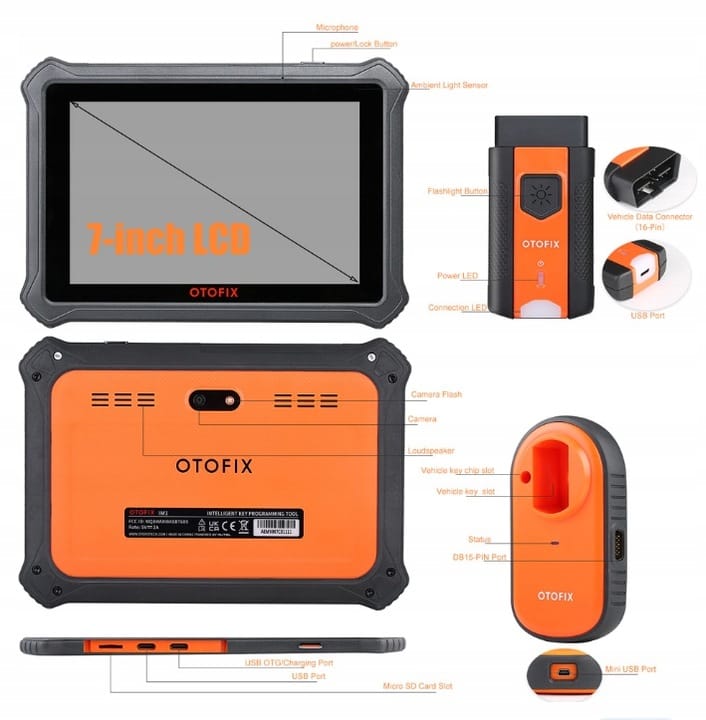

Technical Specifications:

• Operating system: Android 9.0
• Processor: Quad-core ARM Cortex-A35, 1.5 GHz
• Memory: 64 GB
• Display: 7″ LCD touchscreen, 1280 × 800 resolution
• Connectivity: Wi-Fi, Bluetooth, USB Type-C, TF card slot (up to 32 GB)
• Camera: 8 MP
• Sensors: Ambient light sensor
• Audio: Input – Microphone; Output – Speaker
• Battery: 5800 mAh lithium-polymer (3.85 V)
• Power supply: Charging via 5 V DC / 2 A adapter
• Power consumption: 700 mA (with screen and Wi-Fi on)
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Dimensions: 207 × 144 × 14.8 mm
• Weight: 463 g

Smart IMMO Functions:

• OBD key programming for 80% of vehicle models
• OBD key programming for Volkswagen IMMO systems IV, V, and MQB
• Add Key and All Keys Lost programming via OBD for BMW CAS1–CAS4 and FEM/BDC systems
• PIN-free key programming for all Ford models (2005–2020)
• PIN-free key programming for 2019–2020 Promaster, DT-RAM, Jeep Commander, etc.
• Supports key password reading for Hyundai/Kia ID46, 47, 4A, 8A, and more

Device Capabilities:

• Key programming for all frequencies
• Immobilizer PIN code reading
• Remote key (fob) programming for all frequencies
• Transponder programming
• Instrument cluster (odometer) programming
• Full key function support, including latest 4th and 5th generation immobilizers
• EEPROM memory editing across nearly all types
• Fault code reading and clearing (DTCs)
• Live data monitoring
• Service and oil interval reset
• Injector coding
• Full DPF support: soot level check, reset, regeneration, adaptation after replacement
• Full EPB support: caliper retraction, piston pressure adjustment, brake pad thickness setting
• Automatic scanning of all vehicle modules
• ECU information reading
• VIN reading
• Brake pump bleeding
• Suspension level calibration
• Steering angle sensor calibration
• Ignition timing adjustment
• and much more…

Supported Modules:

• Engine
• ABS braking system
• Airbags
• Automatic transmission
• Comfort module
• Brake electronics
• Traction control (ESP/ASR/EBD)
• Tire Pressure Monitoring System (TPMS)
• Air conditioning
• Power steering
• Instrument cluster
• Navigation
• Audio system
• Central locking
• Anti-theft system
• Lighting electronics
• 4×4 drivetrain
• Seat memory
• Door electronics
• Parking assistance
• Lane keeping assist
• Rear-view camera
• Cruise control
• and many other vehicle systems…

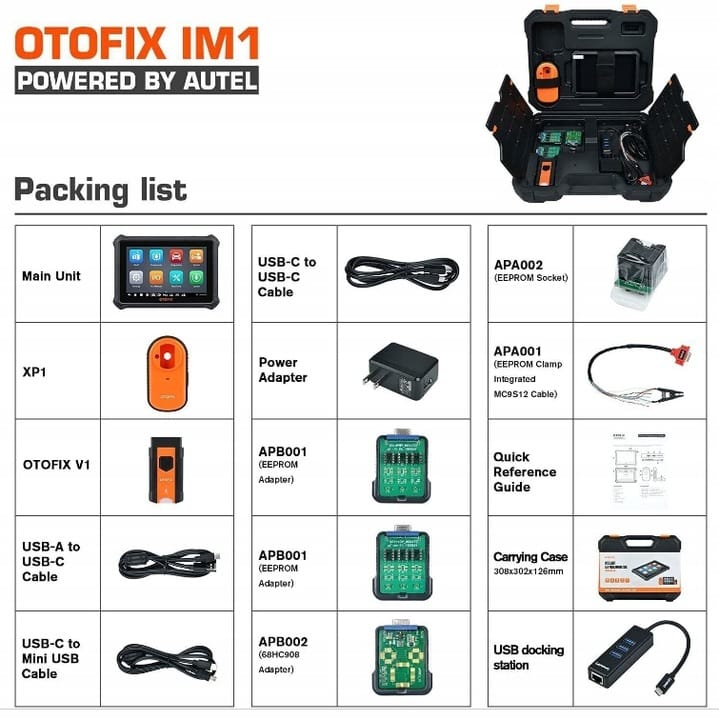

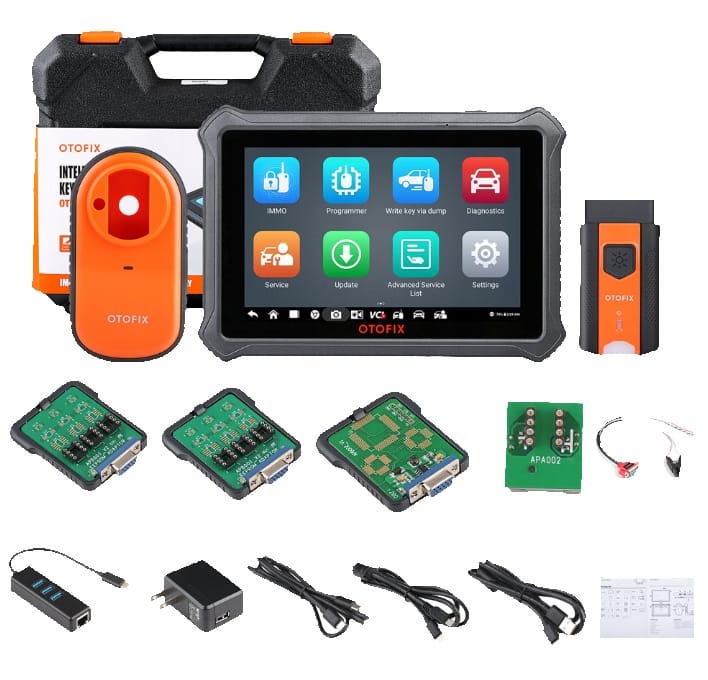

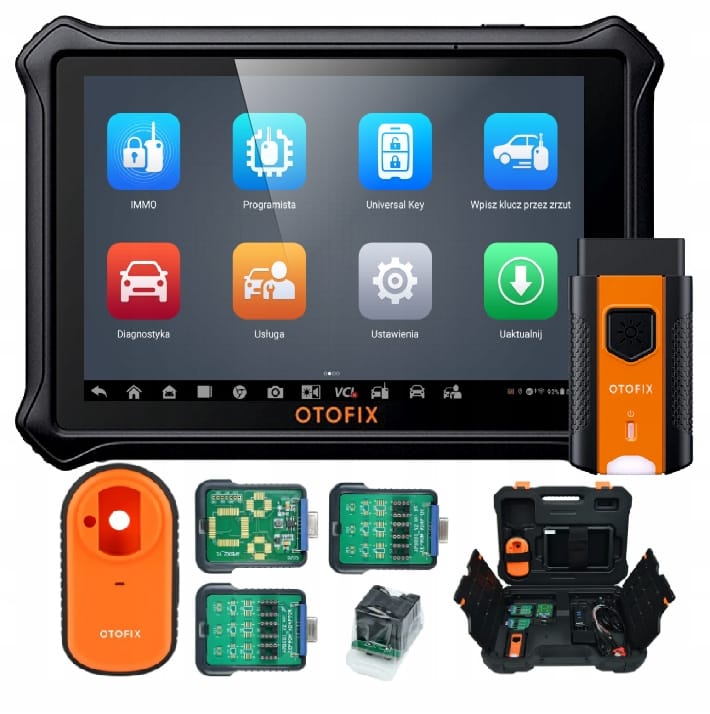

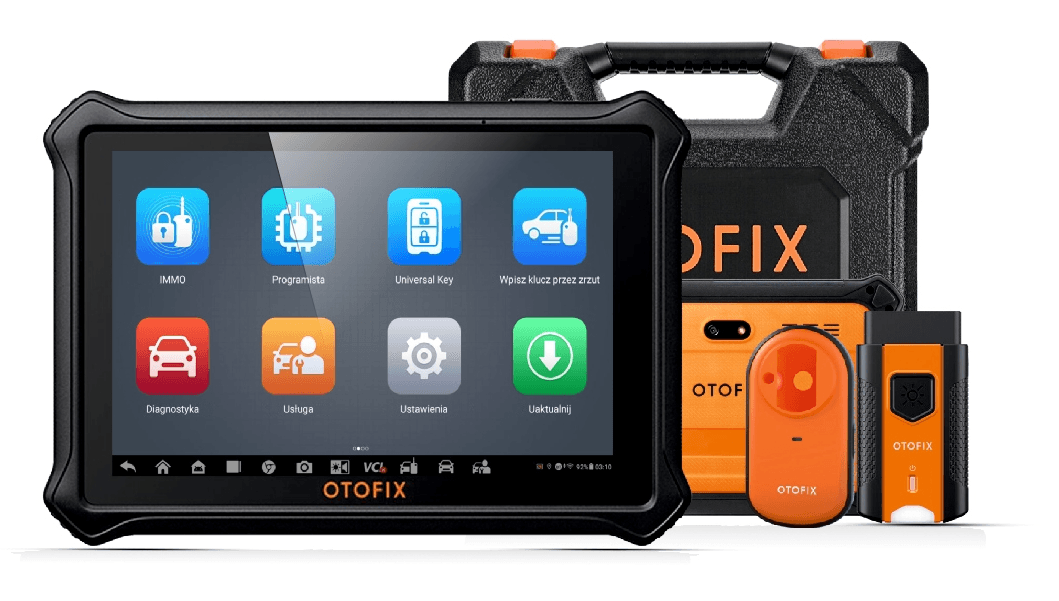

Package Includes:

1. OTOFIX IM1 by AUTEL with 7-inch touchscreen

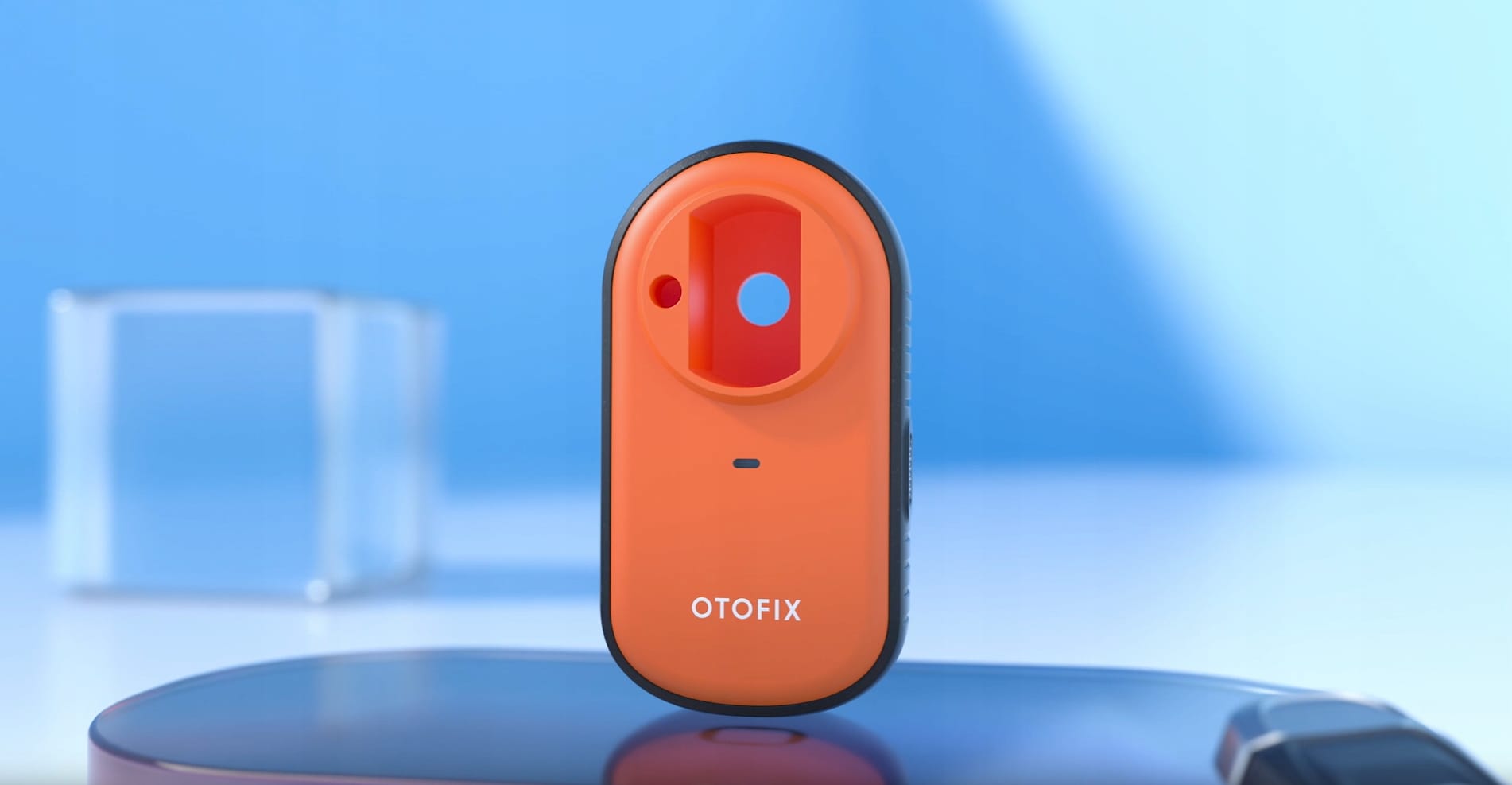

2. XP1 key programming adapter
3. 3 EEPROM memory adapters
4. Case with compartments
5. Main diagnostic cable
6. OBDII adapter
7. Wall charger
8. Power cable with clamps and cigarette lighter plug

The diagnostic tool is equipped with an OBDII port and 4 OBDI adapters for diagnosing older vehicles.

1. Kia/Hyundai 10-pin
2. Honda 3-pin
3. Kia 20-pin
4. Mazda 17-pin
