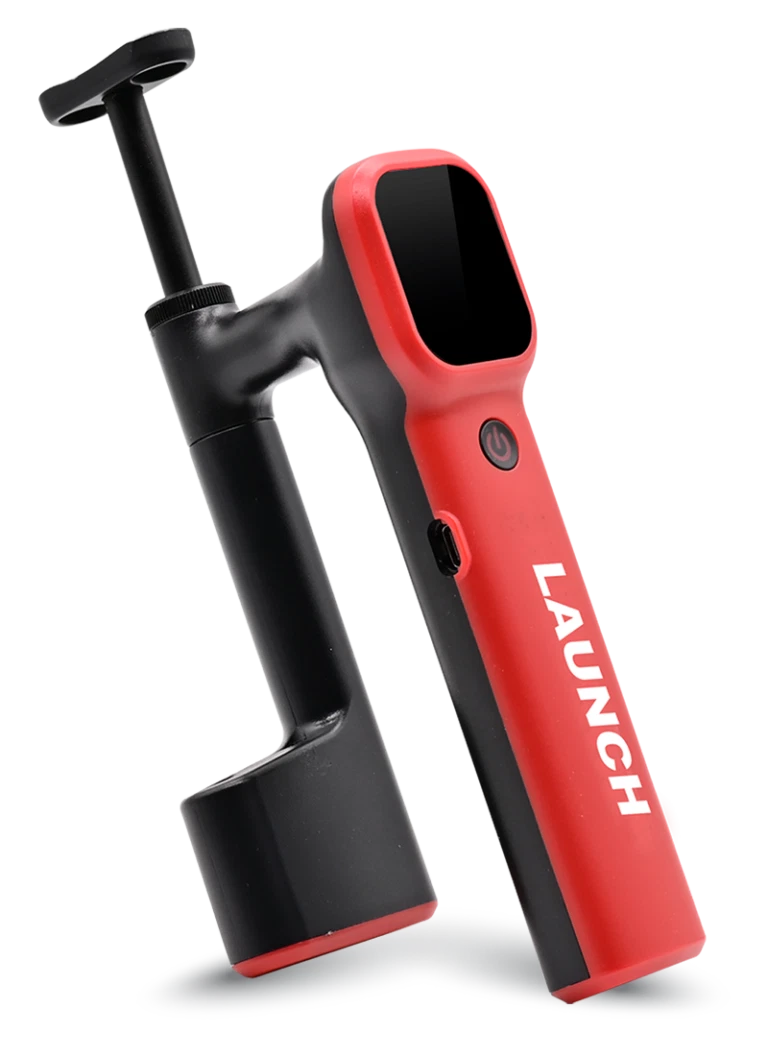

Skaner kontroli bieżnika opon Launch TTM113
Launch TTM313 Tyre Tread Depth Measurement Device - Image 2
Launch TTM313 Tyre Tread Depth Measurement Device - Image 3
Launch TTM313 Tyre Tread Depth Measurement Device - Image 4
Skaner kontroli bieżnika opon Launch TTM113
, , , ,

Launch TTM313 Tyre Tread Depth Measurement Device

Availability:

Dostępny w 4 dni/ Avaliable in 4 days

LAUNCH TTM-113 is a compact device for fast and precise tire tread depth measurement (0.1 mm in 3 seconds). The 1.7″ LCD screen displays real-time results and analyzes tire wear, while Wi-Fi and QR codes make data sharing easy.

1,252.51zł +VAT

Dostępny w 4 dni/ Avaliable in 4 days

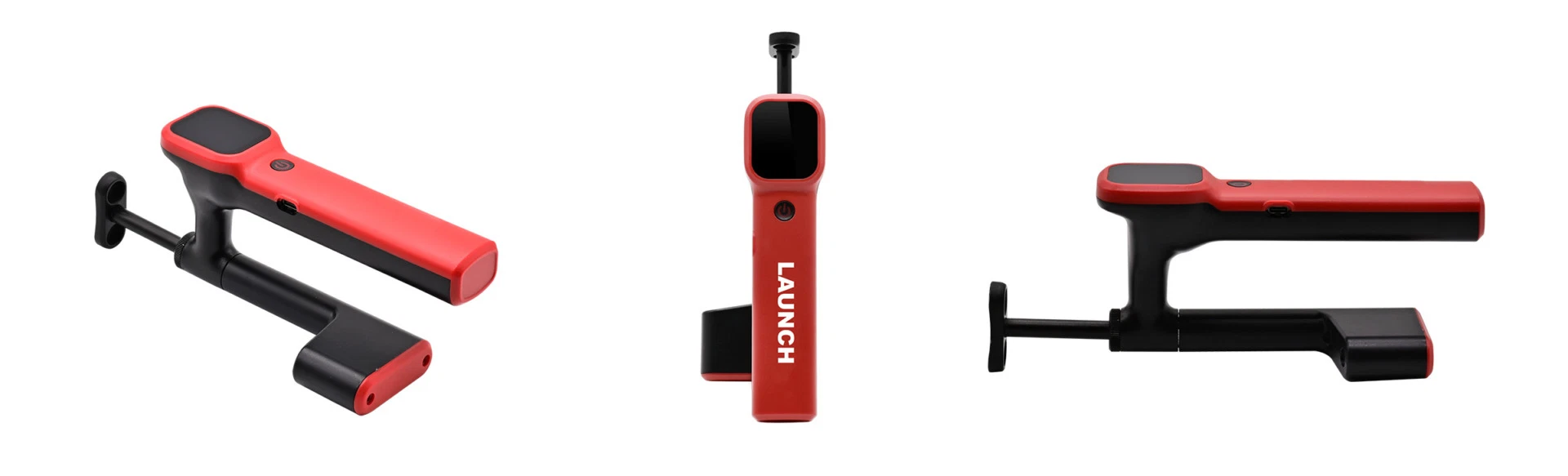

Launch TTM313 Tyre Tread Depth Measurement Device

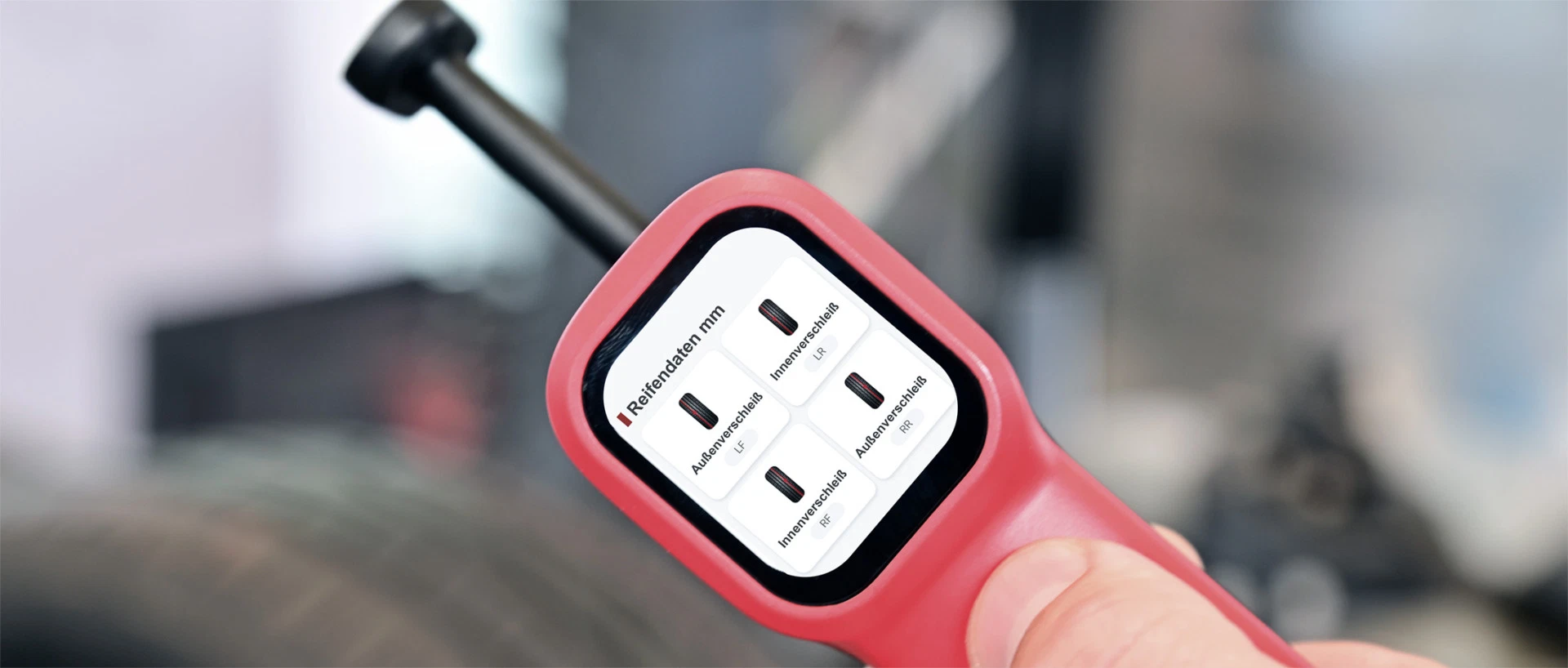

The LAUNCH TTM-113 is an innovative, compact device for precise tread depth measurement, allowing you to capture the entire tyre condition in just one scan. The measurement is fast and highly accurate, taking only 3 seconds with a precision of 0.1 mm. The 1.7-inch LCD touchscreen display not only shows real-time measurement values but also provides a detailed analysis of tyre wear along with well-founded maintenance and replacement recommendations. Thanks to Wi-Fi and QR code functionality, results can be easily shared and evaluated.

Laser Measurement – Fast and Precise:

Our measurement system guarantees exceptional accuracy of 0.1 mm, reliably detecting even the smallest deviations. In just 3 seconds, the entire tyre tread is captured – efficiently and without any time loss. The measurement is contactless and requires no disassembly, eliminating the need to lift or remove components. By analysing multiple measurement points, the device generates a precise profile, providing valuable insights into tyre quality, safety, and maintenance.

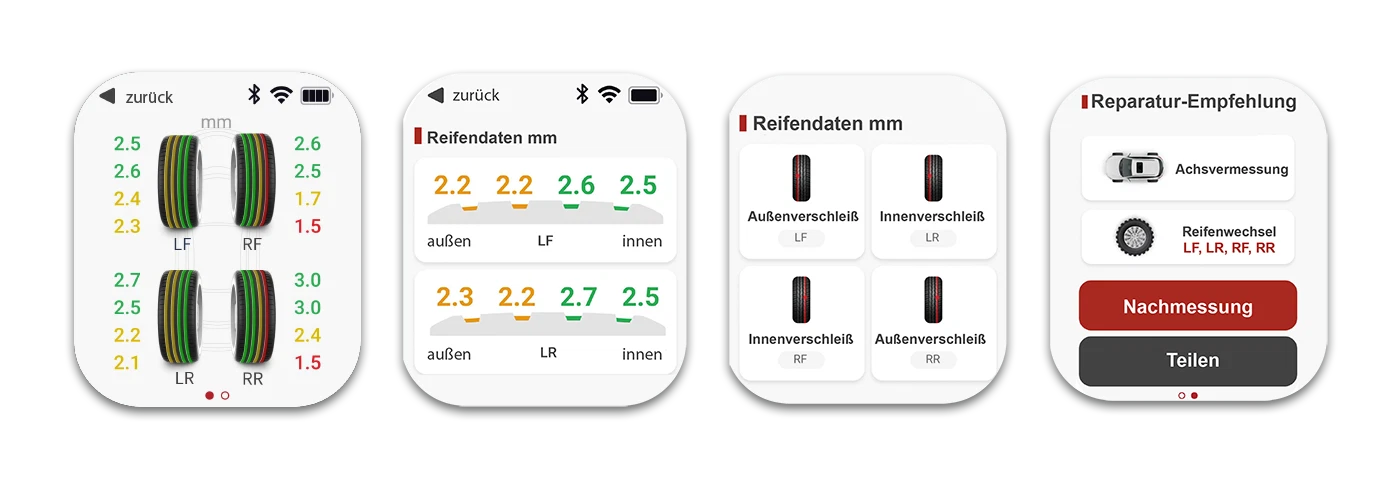

Comprehensive Analysis of Tyre Condition:

Our system precisely detects tyre tread wear and provides detailed analyses of the current condition. Based on this data, it offers targeted recommendations for replacement or repair. In addition to general wear, the system also identifies specific wear patterns that may indicate issues such as misaligned axles or mechanical defects. By detecting these causes early, costly repairs can be avoided, while safety and tyre lifespan are optimised.

Automated Reports:

Our system generates detailed real-time analyses of the test results. By scanning the QR code, reports can be shared quickly and effortlessly. Additionally, the automatic Wi-Fi upload enables direct data transfer and storage. This ensures that maintenance and repair measures are efficiently documented, always accessible, and facilitate quick, well-informed decisions.

Key Features Launch TTM113:

  • Complete Tread Depth Measurement: The system scans the entire tyre tread in seconds, providing a precise analysis of its current condition.
  • Measurement Without Tyre Removal: Measures the tread depth directly on the vehicle without the need to remove or lift the tyre.
  • Precise Laser Measurement: The cutting-edge laser technology ensures precise measurement results with an accuracy of up to 0.1 mm.
  • Compatible with the X-431 Series: Seamlessly connects with the X-431 series, enabling a comprehensive vehicle diagnosis.
  • Tyre Tread Analysis: Detects uneven wear at an early stage and helps reliably identify chassis issues.
  • Replacement and Maintenance Recommendations: Provides clear recommendations for optimal tyre replacement, ensuring maximum road safety.

Technical specifications:

  • Measurement Accuracy: 0.1 mm
  • Measurement Duration: 3 s
  • Processor: 4-core A53
  • Memory: 2G DDR & 8GB Flash
  • Display: 1.7″ LCD, Touchscreen
  • Bluetooth: Yes
  • WLAN: Yes
  • Camera: 2 million px, 30 fps
  • Battery: 3.7 V, 3,000 mAh
  • USB: Type-C
  • Reports: via QR-Code
  • Dimensions: 224 x 97 x 70 mm

The set includes:

  • Launch TTM113
  • Case
  • USB cable
