Scanmatik 3 + Bench cable + CAT 9/14 pin + Deutsch 6/9 pin + JDC216A9 Cummins

Scanmatik 3 + Bench cable + CAT 9/14 pin + Deutsch 6/9 pin + JDC216A9 Cummins

Professional multi-brand automatic scanner designed to diagnose the electronic control systems of modern cars. Works with a personal computer, tablet or smartphone, includes software for Windows and Android.
During the installation of the controller (included in the kit), it works with third-party diagnostic software made for SAE J2534 and RP1210 standards, as well as bootloaders, applying voltages for programming to various leads of the diagnostic connector.

USB or Bluetooth interfaces (built into the SM3-PRO adapter) can be used to connect to the adapter.

All kits include the full current version of the software (all currently available software modules):

It is compatible with many diagnostic programs and loaders made for standard SAE J2534 and RP1210 interfaces.

List of programmes tested:

Allison DOC
BMW ISTA / Rheingold
Caterpillar Electronic Technician (CAT ET)
Chrysler Flash Application
Combiloader
Chiploader
Cummins Calterm III
Cummins Insite
Detroit DDDL
Eaton Service Ranger
ECU Flasher
Ford Module Programming Tool
Forscan
GM GDS-2/SPS
Honda HDS
Hino Diagnostic Explorer DX2
Jaguar/Land Rover SDD
JCB Service Master 4
MDFLASHER
Mercedes Xentry/DAS PassThru
MMC Flasher
Nissan Consult 3
Noregon JPRO
OpenBox
PCMFlash
Toyota Techstream
VAG ODIS Service
Volvo Premium Tech Tool
Volvo Vida
Wabco Toolbox

Specifications of the SM3-PRO adapter

• Interfaces for communication with a PC (tablet, smartphone) – USB or Bluetooth
• Supports USB or Wi-Fi connection to a PC
• Stable, easy-to-use Wi-Fi connection running on our proprietary Wi-Fi module firmware (no serial port emulation)
• Fully protected transceiver lines (surges, short circuits)
• Supply voltage: 5 … 36V from vehicle electrical system or USB (galvanic isolation with power supply)
• Current consumption, max. 350 mA
• Internal switch-mode power supply of own design (no heating, wide input voltage range from 5 to 55V)
• ‘Load-Dump’ surge protection (when the generator is switched off while the motor is running)
• Full support for SAE J2534-1 (V0404, V0202) and SAE J2534-2
• Full support for TMC RP1210C (heavy duty vehicles)
• Supported data buses:
  -13 x ISO-9141 / ISO-14230 (K-LINE)
  -1 x J1850VPW
  -1 x J1850PWM
  -5X CAN2.0/CAN-FD channels multiplexed to OBD port pins 6-14, 3-11, 12H-13L or 12L-13H (polarity swap), 1-9, 2-10
  1 x single CAN cable
• Built-in multiplexer for switching diagnostic lines
• Widest support for J2534-1 / 2 standards
• Programming voltage supply (5-24V) – to OBD2 connector legs: 6, 8, 11, 12, 13, 14
• AUX programming voltage output (you need an optional OBD2 Aux cable )
• Bluetooth range, no less: 10 m (class 2)
• Adapter dimensions (L X W X H), no more: 97x75x22mm
• Weight of device in basic configuration, no more than: 1 kg

Differences between Scanmatik adapters:

Cable Scanmatik Bench/Boot – EDC17/MED17 MD/MG1 PCM Flash Module 53 71 77 92

Designed For Scanmatik 2 Pro and PCMFlash

Scanmatik 2 Pro Compatible bench flashing cable, designed for use with PCMFlash software Modules 53 & 71, 77

Also compatible with BitBox MG1 and MD1 Bench module

Superior components

High-Quality components all sourced from reputable electronics blue-chip companies in the UK. Superior automotive connectors have been specifically chosen for this application.

Protection

Reverse polarity protection with high-quality components.

• Cable Markers make selecting cables easy without needing to refer to a colour chart
• 3 LED indicators showing Main power, ECU power and Boot/ Config selection.
• L-Line Control enabling automatic ECU power switching controlled by the Scanmatic 2 Pro device and PCMFlash software.
• Automatic generation of BOOT & CNF Signals (for PCMFlash Module 71 )

Scanmatik COBD Full Boot Cable signage:

• Red – 12V+
• Black – GND
•  White – CAN H
• Green – CAN L
• Pink – K-Line
•  Yellow – GPT1
• Orange – GPT2
• Purple – VPP+
• Blue – CNF1
• Grey – BOOT1
• Brown – BOOT2

Cable Scanmatik OBD – CAT 9+14 PIN

Compatible with Scanmatik 2 PRO and Scanmatik 3, it allows communication via both J1939 and CDL protocols using CAT ET software.

The CAT 9+14 cable is a specialized diagnostic cable designed for Caterpillar (CAT) machines.

This cable enables communication between the SM3 interface and a Caterpillar machine equipped with a 9-pin or 14-pin diagnostic connector.

Cable Scanmatik OBD – Deutsch 6+9 PIN

The Deutsch 6+9 connector cable is a diagnostic adapter designed for the Scanmatik 3 (SM3) device, allowing diagnostic tools to connect to vehicles equipped with 6-pin and 9-pin Deutsch connectors.

Compatibility: Scanmatik 3 (SM3)
Connectors: 6-pin and 9-pin
Application: Diagnostics of trucks, heavy machinery, and other industrial equipment
Communication protocols: J1708, J1939, CAN

Przewód diagnostyczny Jaltest Cummins J1939 Backbone JDC216A9

The accessory cable for the Jaltest diagnostic tester allows the simultaneous connection of two connectors, e.g., in Cummins engines.

(Iveco/Irisbus bus – R120SPINE connector)

Link version: V9
Length: 28-30 cm

Package contents:

1. Scanmatik 3 device

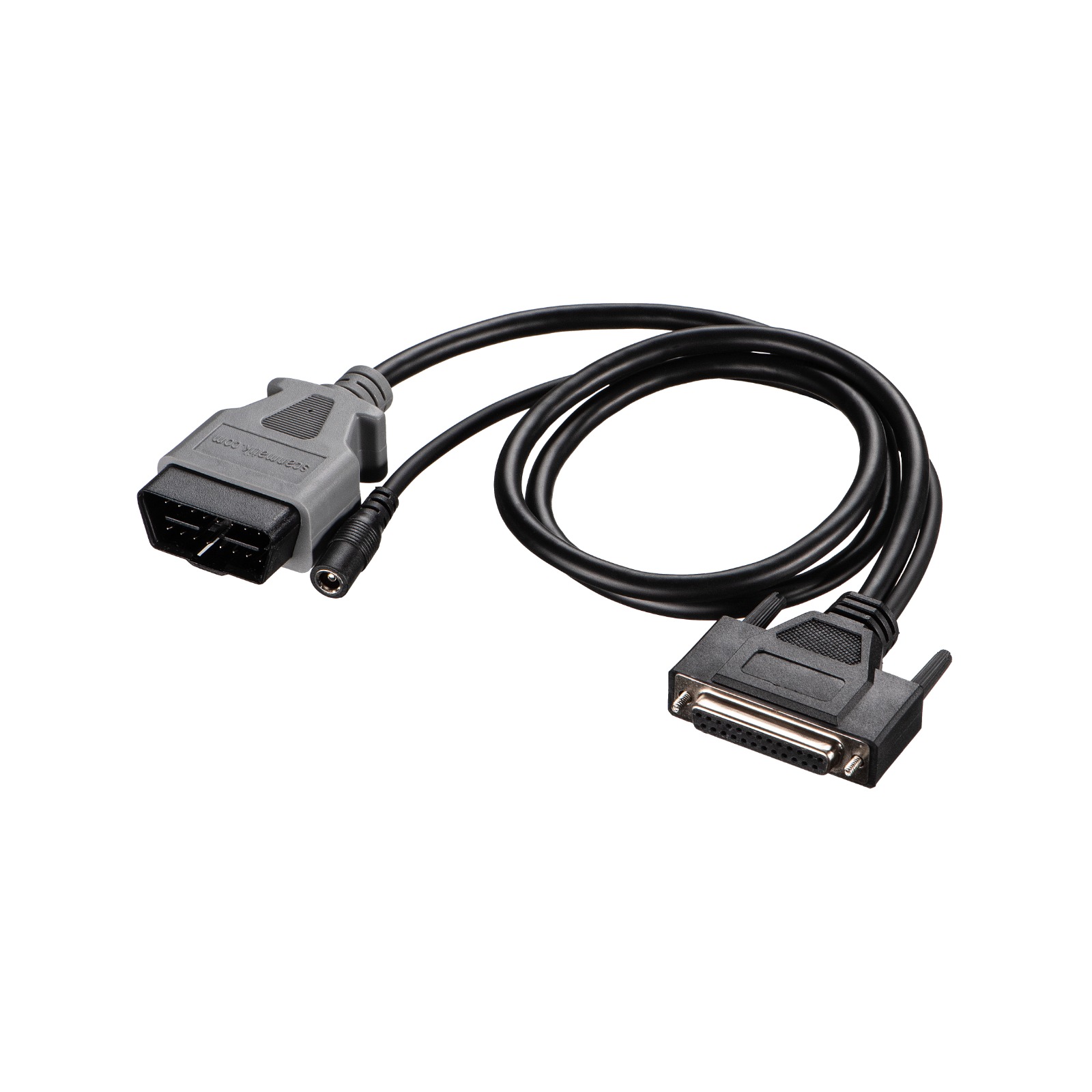

2. OBDII with AUX cable

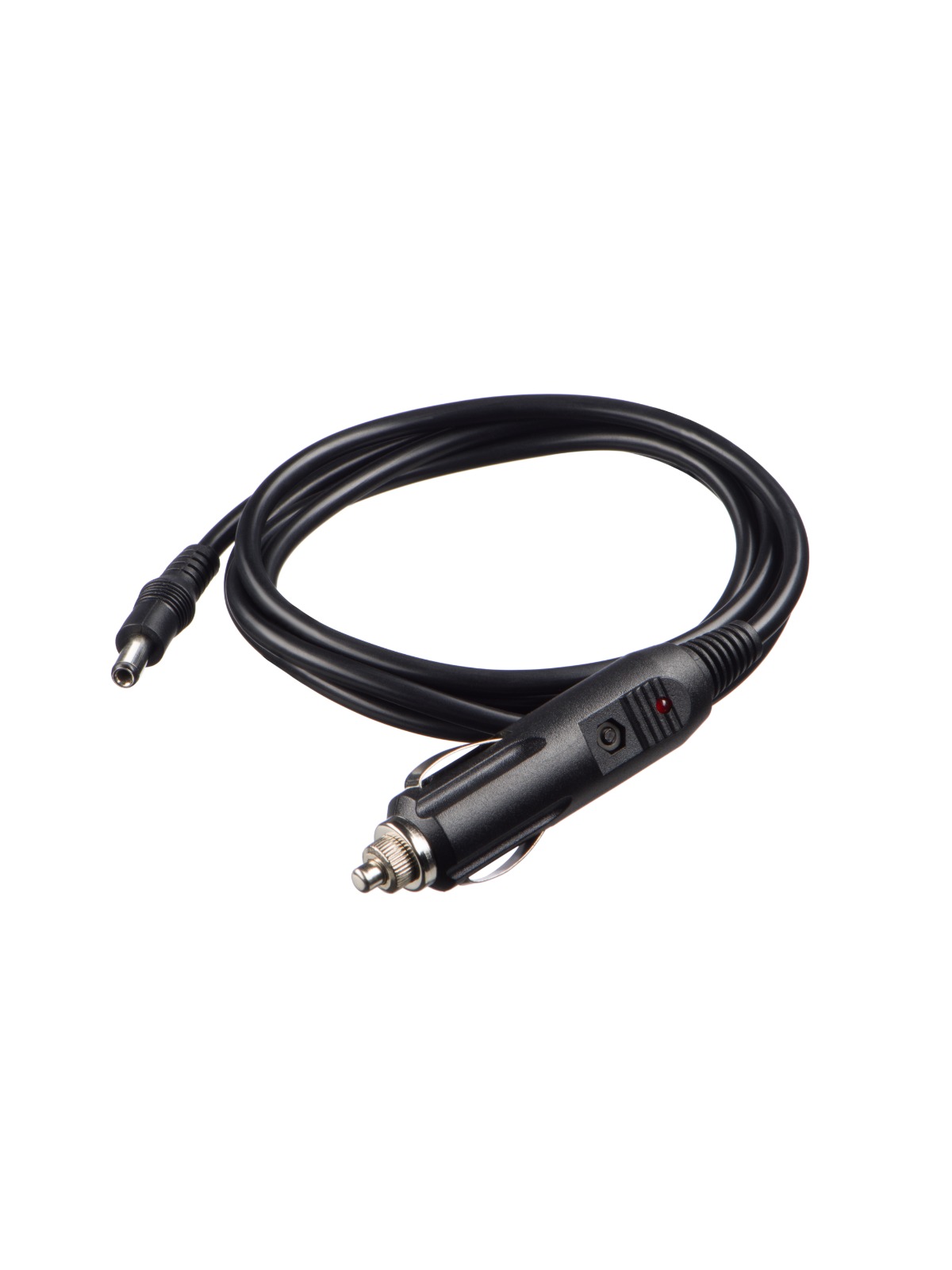

3. Cigarette lighter cable
4. USB AB cable
5. Cable Scanmatik Bench/Boot
6. Cable Scanmatik OBD – CAT 9+14 PIN
7. Cable Scanmatik OBD – Deutsch 6+9 PIN
8. Jaltest diagnostic cable Cummins J1939 Backbone JDC216A9
9. Scanmatik carrying case (with vertical handle)

Scanmatik 3 PRO compatibility list

Configuration instructions as J2534 / RP1210: HERE
