Autel MaxiIM IM608 PRO II

Autel MaxiIM IM608 PRO II

The IM608 PRO II tester is an advanced, fast, easy-to-use, and portable device designed for immobilizer servicing and key programming. The new version of the tablet, based on Android 10, features a powerful octa-core processor, an intuitive design, and a user-friendly interface. Thanks to the advanced XP400 PRO key programmer, the IM608 PRO II offers a full range of IMMO system service functions. The set also includes the JVCI+ PassThru interface, which enables fast and comprehensive diagnostics of all modules in most makes and models available on the market. The IM608 PRO II provides an exceptionally wide range of special functions, making it the ideal solution for workshops and technicians who require reliable immobilizer system support and top-level vehicle diagnostics.

2 years of free updates included in the price!

Main highlights:

• Extremely powerful six-core Cortex A7 + A15 processor
• 10.1-inch capacitive LED touchscreen with 1920 x 1200 resolution
• Reliable built-in 64 GB internal memory for improved performance

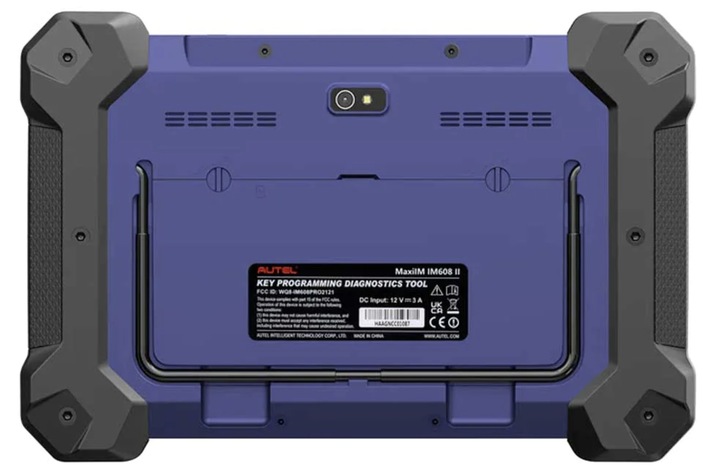

• Built-in 16-megapixel rear camera with autofocus and flashlight
• Wi-Fi 802.11 a / b / g / n / ac for access to favorite online resources
• Open-source Android operating system for fast boot and multitasking
• Powerful combination of advanced key programming / all-systems diagnostics / advanced service functions

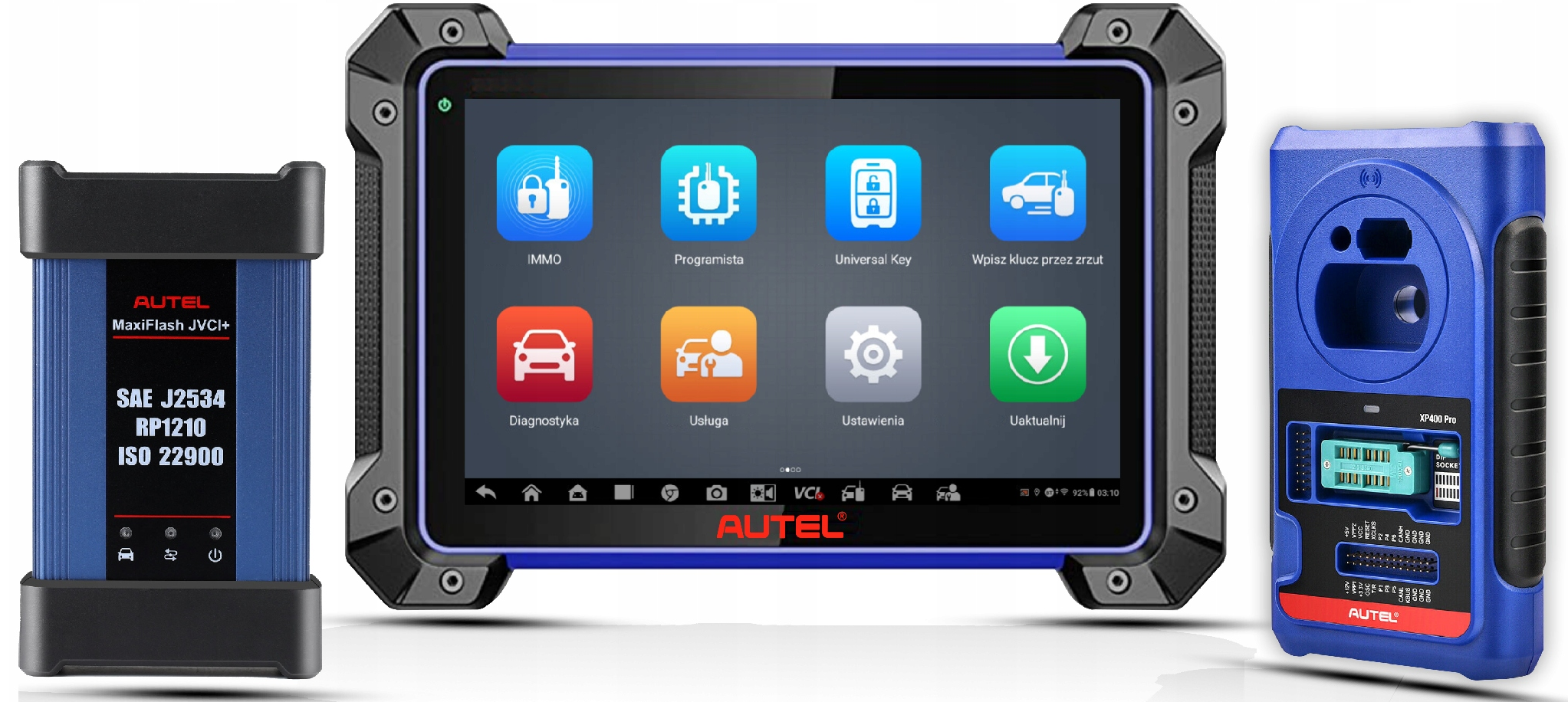

• Professional key programming equipped with XP400Pro key programmer and MaxiFlash JVCI+ ECU programmer for full IMMO support
• Smart Mode for guided and automated key programming
• Expert Mode for advanced key programming
• Read PIN / CS (all keys lost), key generation, key programming, remote control programming
• ECU IMMO reset / adaptation, refresh / coding
• Read / write transponder data, ECU / MCU / EEPROM data (e.g. 9S12 encryption chip), IC card, remote frequency detection
• Powerful OE-level diagnostics for over 80 brands and models from the USA, Asia, and Europe
• Full capabilities: codes, live data, active tests, ECU information, adaptations, matching, coding, etc.
• All special functions, 36+ service functions including EPB, DPF, SAS, oil reset, BMS, TPMS sensor ID relearn, etc.
• And much more…

IMMO Functions:

• Professional key programming using the XP400 key programmer and MaxiFlash JVCI+ ECU programmer for full IMMO support
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN / CS (all keys lost), key generation, key learning, remote learning
• IMMO ECU reset / adaptation, refresh / coding
• Read / write transponder data, ECU / MCU / EEPROM data (e.g. 9S12 encryption chip), IC card, remote frequency detection

Diagnostic Functions:

• Diagnosis of all vehicle electronic systems (K-line and CAN), including: Engine, ABS, Airbag, DPF, SAS, EPB, air conditioning, automatic transmission, comfort modules, etc.
• ECU information
• Read fault codes
• Clear fault codes
• Full live data support during operation (Live Data)
• ECU programming
• Adaptations
• Coding
• Actuator tests
• Basic settings
• Resetting oil service reminders (Oil Service reset)
• EPB parking brake service (retracting calipers for brake pad replacement)
• DPF service (diesel particulate filter)
• SAS service (steering angle sensor)
• BMS service (battery management system)
• Throttle adaptation
• ECU flashing, PassThru system support

Technical specifications:

• Operating System: Android™ 10.0
  Processor: Qualcomm SDM660 Octa-core Processor4x 2.2 GHz(A73) 4x 1.8 GHz(A53)
• Memory: 4 GB RAM & 128 GB internal storage
  Display: 10.1-inch LED capacitive touchscreen, 1920×1200 resolution
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac) USB: BT V5.0 + BR/EDR, SD Card (supports up to 62 GB), HDMI
• Camera: 8.0 Megapixel, Auto Focus with flash
  Audio: Built-in microphone, dual speakers, 3.5 mm standard stereo headphone jack (3-pole)
• Sensors: Gravity accelerometer, Ambient light sensor (ALS)
• Power & Battery: 15000 mAh 3.8 V lithium-polymer battery, Charging via 12 V AC/DC power adapter, Operating temperature: 0°C to 45°C
• Input Voltage: 12 V (range: 9–24 V)
• Power Consumption: 6.5 W
• Operating Temperature: 0 to 50°C
• Storage Temperature: -20 to 60°C
• Housing: Durable plastic casing with rubber protection
• Dimensions: 300 mm x 220 mm x 50 mm
• Weight:: 1.42 kg, MaxiSys GW: 8.655 kg
• Supported Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, RP1210, ISO22900 K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

The tester supports virtually all control modules installed in a given vehicle, including the latest models from the current year:

• Engine
• ABS braking system
• Airbags
• Automatic transmission
• Comfort module
• Brake electronics
• Traction control (ESP/ASR/EBD)
• Tire pressure monitoring system (TPMS)
• Air conditioning
• Power steering assistance
• Dashboard
• Navigation system
• Audio system
• Central locking
• Anti-theft system
• Lighting electronics
• 4×4 drivetrain
• Seat memory
• Door electronics
• Parking assistance
• Lane keeping assistant
• Rearview camera
• Cruise control

Supported Brands: https://pro.autel.com/measurecarApp-1-1.html?m=94&operatorType=1

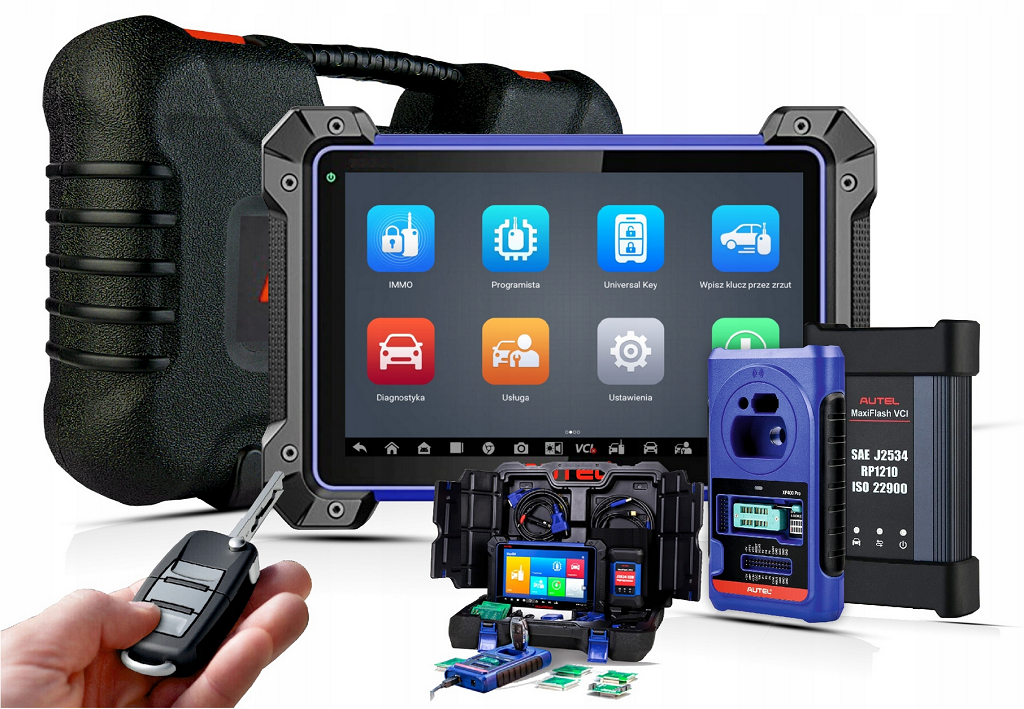

The set includes:

• Autel MaxiIM IM608 PRO II
• XP400 Key Programmer
• Protective Case
• Main Cable
• Power Cable with Clamp and Cigarette Lighter Adapter
• Mini USB Cable
• 6x30mm Fuse (2 pcs)

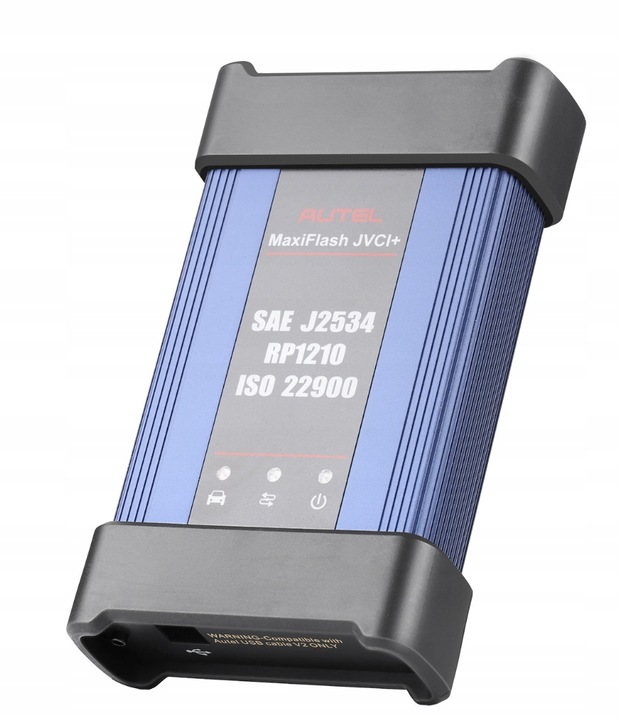

• MaxiFlash JVCI+
• AC/DC Power Adapter (12V)
• User Manual
• USB Cable
• APA107 (Connection Cable)
• APA105 (MCU Clamp)
• APA103 (EEPROM Clamp)
• APA002 (EEPROM Socket)
• APB107 (MCU_FQFP144)
• APB105 (MCU_FQFP80)
• APB102 (MB Infrared Cable)
• APC101 (USB Cable)
• APA106 (MC9S12 Clamp)
• APA104 (ECU Clamp)
• APA101 (Single Cable)
• APB108 (MCU_FQFP176)
• APB106 (MCU_FQFP112)
• APB104 (MCU_FQFP64)
• APB101 + APD101 (EEPROM Adapter + EEPROM)
• AAC001 (MED17 Cable)
