Launch X-431 Euro Link HD

Launch X-431 Euro Link HD

LAUNCH X-431 EURO LINK HD is the latest diagnostic solution for vans, trucks and buses (12V and 24V). The system consists of the X-431 EURO LINK diagnostic unit and the new X-431 SmartLink HD BOX with Bluetooth, featuring comprehensive software for over 20 truck manufacturers. The device stands out with a 10.1-inch display, a powerful 4-core 2.0 GHz processor, 4 GB of RAM, 64 GB of ROM, and a long-lasting battery. The entire system runs on Android 10.0, ensuring faster performance, greater stability, and reliability in truck diagnostics. X-431 EURO LINK HD allows full vehicle system diagnostics, including reading and clearing error codes (DTCs), viewing live data streams, performing special functions, and activation tests. The device also supports DoIP and Pass-Thru, and with a stable internet connection, it enables remote diagnostics via LAUNCH SRDs.

1 year of updates included in the device price!

Key Features X-431 Euro Link HD:

• 12 powerful service functions: The new service features allow fast and efficient completion of common maintenance tasks.
• Diagnostic coverage: Access controller software information, full system scanning, DTC clearing, live data viewing, actuator testing, and advanced special functions.
• Supported vehicle range: Device compatibility verification with over 20 truck manufacturers.
• Comprehensive accessories: The kit includes all commonly used adapters for truck diagnostics, enabling immediate use.
• SRD remote diagnostics: For specialized diagnostic and maintenance work on trucks, LAUNCH SRD remote diagnostics is also available.
• Live data analysis: Reading live data streams allows real-time monitoring of control unit parameters.
• Wide vehicle model coverage: With support for a broad range of models, it’s possible to successfully diagnose faults on all major truck brands.

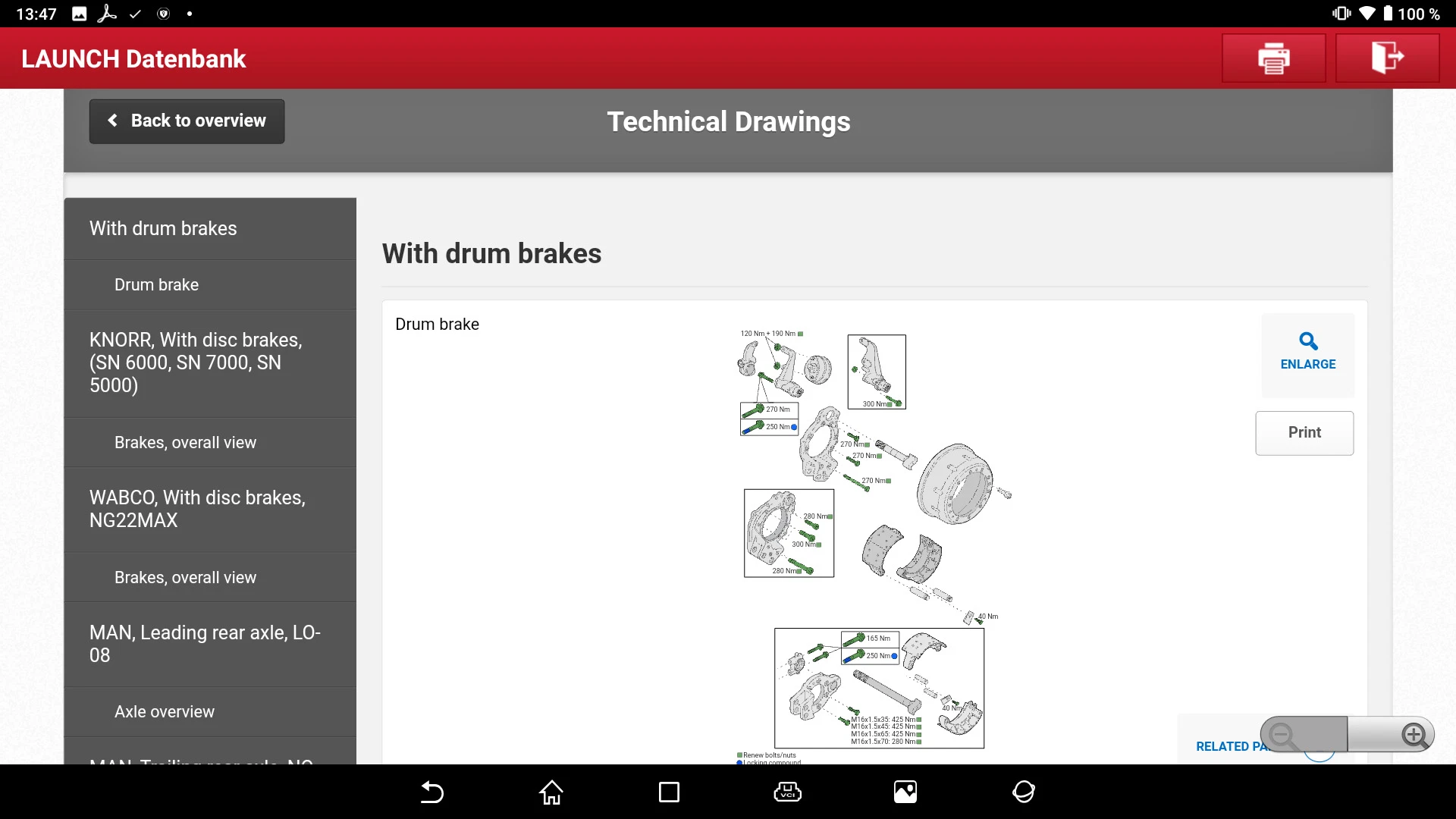

• TruckSET database: LAUNCH database packages powered by HaynesPro assist in locating and repairing faults.
• The equipment comes from the official Launch Europe distribution.

Technical specifications:

• Processor: 2.0 GHz, quad-core
• RAM: 4 GB
• Storage: 128 GB
• Operating System: Android 10.0
• Battery: 47.88 Wh (7.6 V, 6300 mAh)
• Display: 10.1″
• Resolution: 1280 × 800
• Front Camera: 5 MP
• Rear Camera: 8 MP
• WiFi: 2.4 GHz / 5 GHz
• Ports: USB Type-C x1, Type-A x1
• Dimensions: 274 × 190.5 × 40.5 mm

Wireless SmartLink C Module:

Functions:

• Fast local diagnostics via Bluetooth
• Remote diagnostics (LAUNCH SRDs) via Wi-Fi or Ethernet cable
• DoIP compatibility
• Pass-Thru mode

Technical Specifications:

• Display: 3.97-inch, monochrome
• Resolution: 320 × 480
• Operating Voltage: DC 9–36 V
• Communication: Ethernet / Wi-Fi
• Wi-Fi: 5G
• USB: USB 2.0 Type-B
• Internal Storage: 8 GB
• RAM: 256 MB
• Dimensions: 204 × 110 × 45 mm

12 Service Functions:

• DPF (Diesel Particulate Filter) Regeneration
• Parameter Settings
• Cylinder Deactivation
• Compression Test
• Service Reset
• Injector Coding
• Speed Limiter Adjustment
• Idle Speed Adjustment
• Fan Calibration
• Remote Throttle Control
• AdBlue (DEF) System Management
• DTC (Diagnostic Trouble Codes) Clearing
• NOx Sensor

User Interface:

The kit includes:

• Launch X-431 Euro Link HD
• VCI SmartLink C HD BOX diagnostic module
• Carrying case
• OBD II diagnostic cable
• Power adapter/charger
• USB-C cable
• OBD I adapter
• Cigarette lighter cable
• Battery cables
• LAN cable
