DynoPRO GPS hamownia drogowa
, , ,

DynoPRO GPS Road Dyno

Availability:

Dostępny w 1 dzień / Avaliable in 1 day

DynoPRO GPS Road Dyno

  • The device features a compact and robust housing made of aluminium and high-quality plastics.
  • Installation takes approximately 2 minutes, after which the system is ready to perform measurements.
  • To perform a measurement, the vehicle weight must be entered – weighing the vehicle is recommended for the most accurate results.
  • The device is equipped with a built-in weather station for measuring temperature and atmospheric pressure (-40°C to +105°C, 300 hPa–1100 hPa).
  • Communication with the dynoPRO GPS sensor is carried out via Bluetooth. The dynoPRO GPS sensor features a built-in battery providing approximately 5 hours of operation.
  • Measurement results are presented in both real and standardized versions according to DIN 70020, SAE J1349 and EWG standards. The measurement repeatability error, when maintaining the same procedure and conditions, is below 1%.
  • The device has no time or quantity limitations regarding the number of measurements performed. Free software updates and technical support are included.

4,842.50zł +VAT

Dostępny w 1 dzień / Avaliable in 1 day

DynoPRO GPS Road Dyno

DynoPro GPS is a road dyno designed for measuring vehicle power, torque and acceleration. Measurements can be performed on vehicles with any type of drivetrain. The device is designed for professional use in motorsport and vehicle diagnostics.

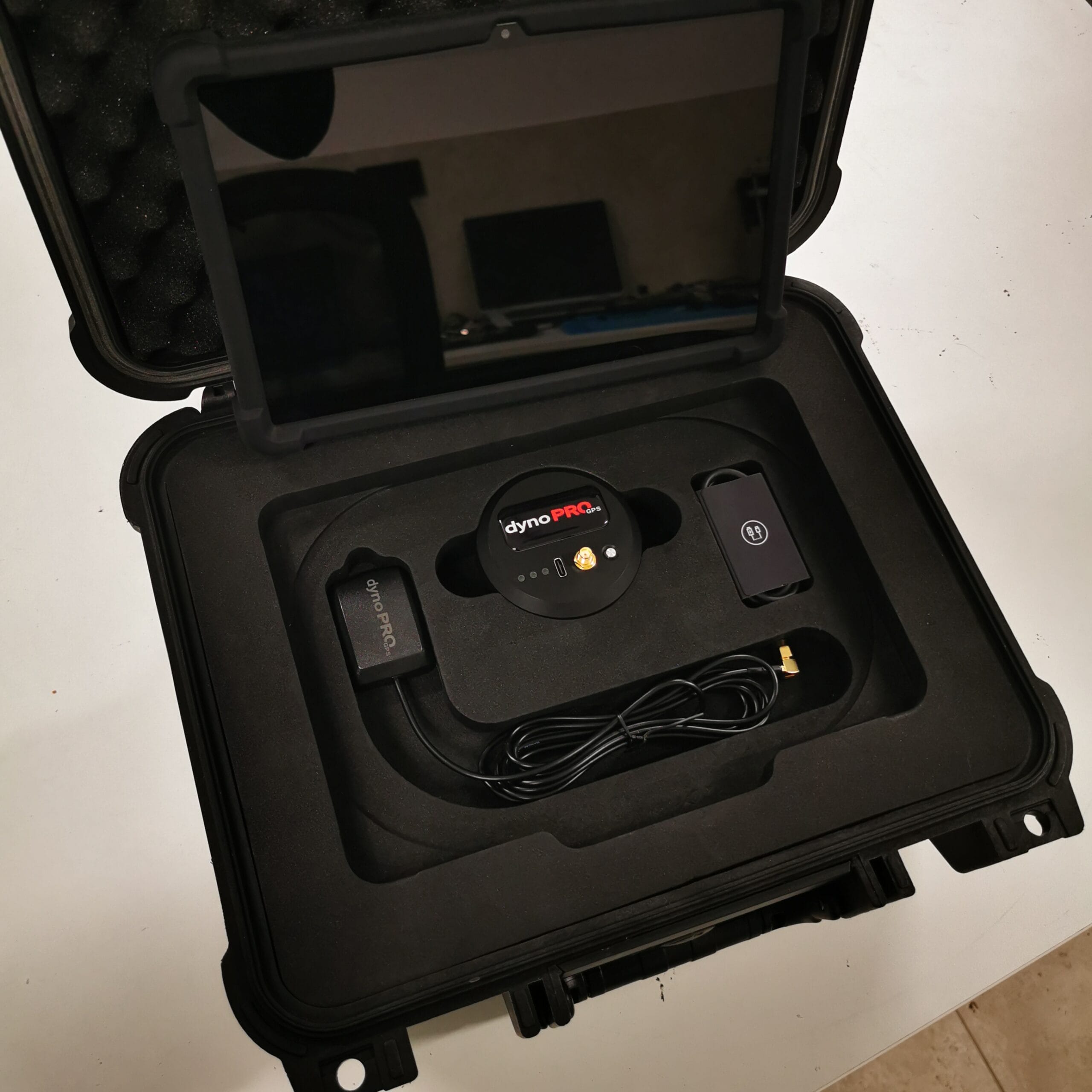

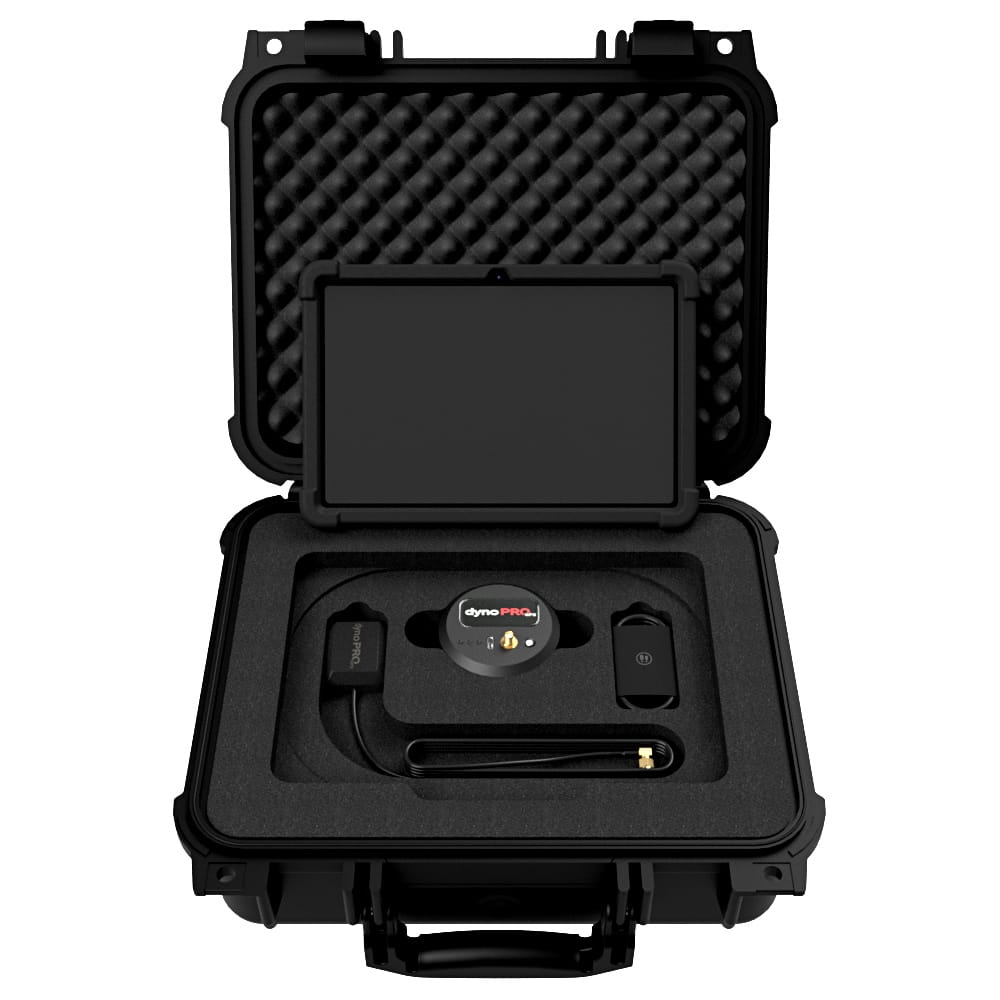

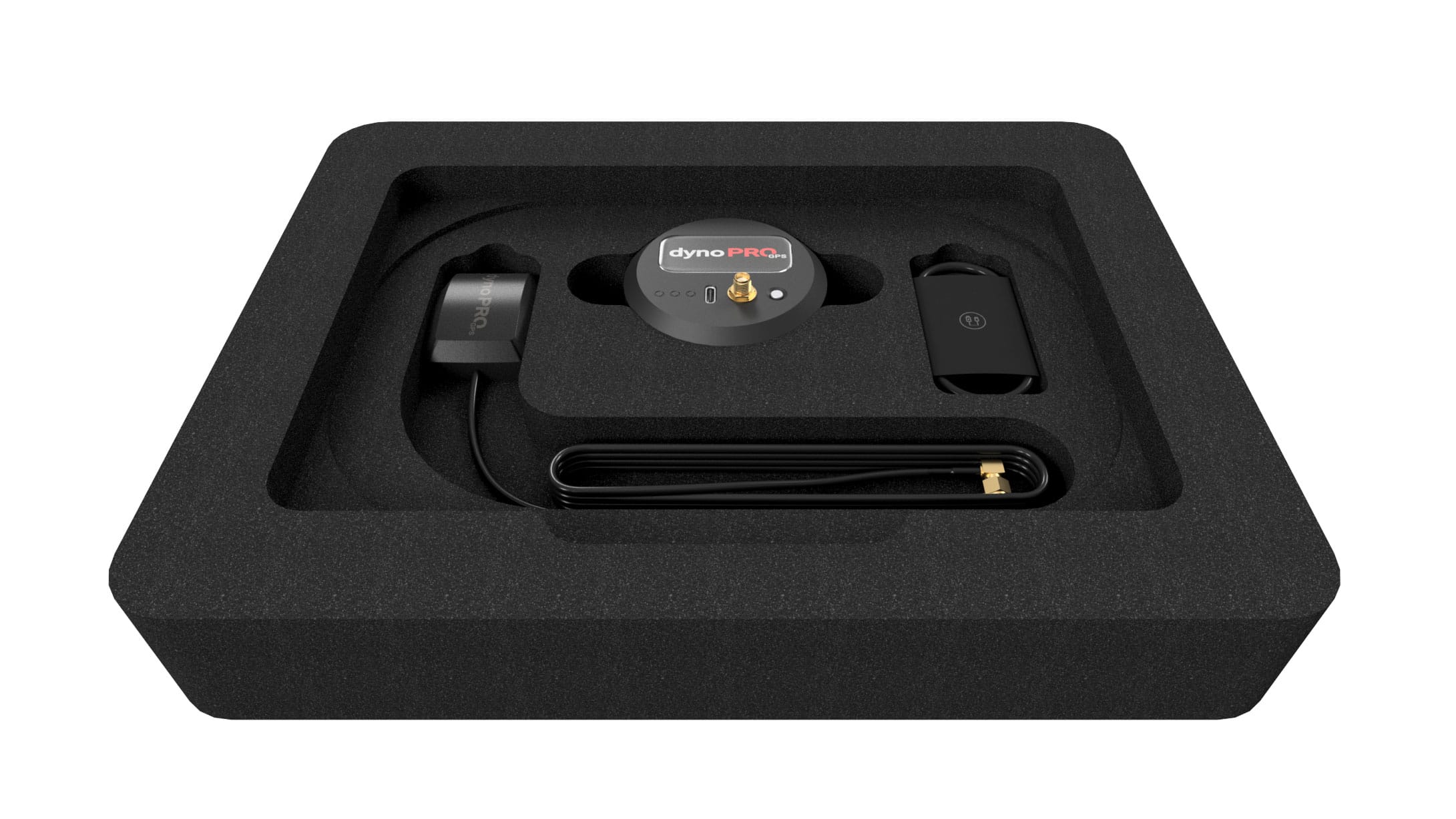

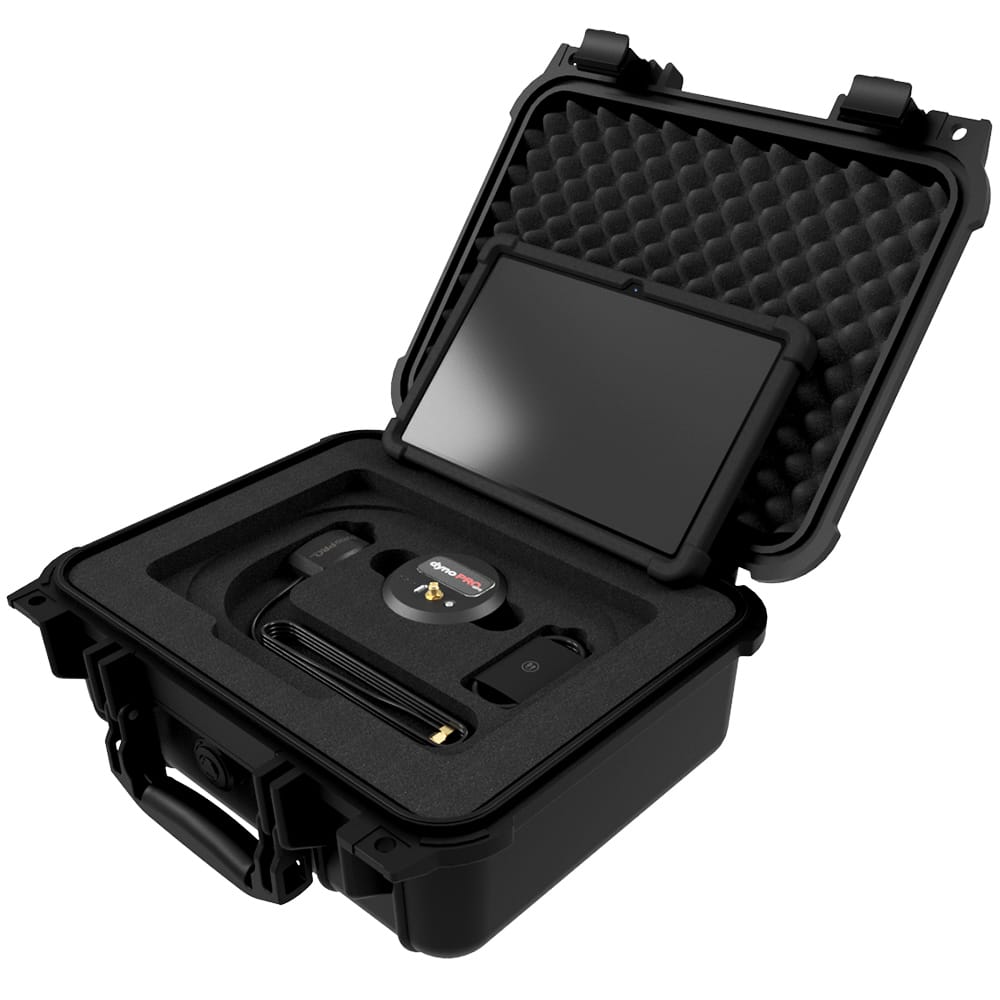

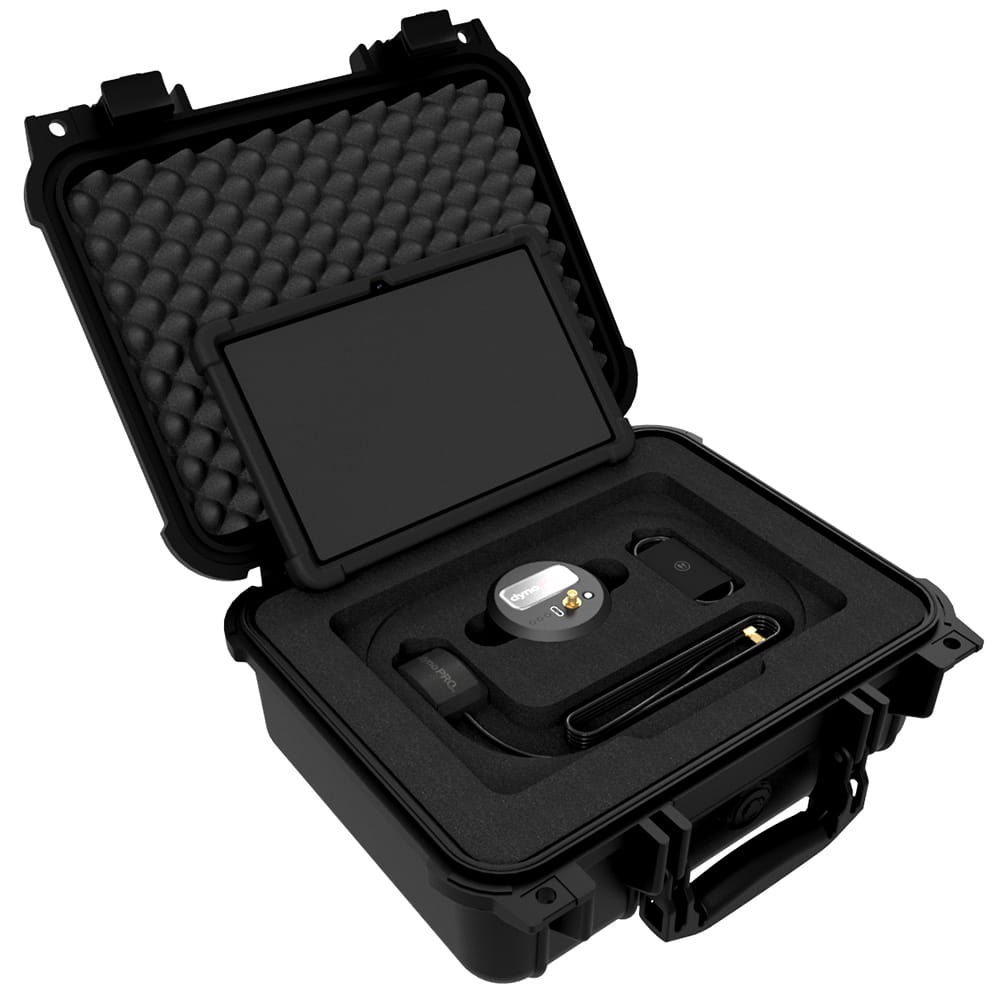

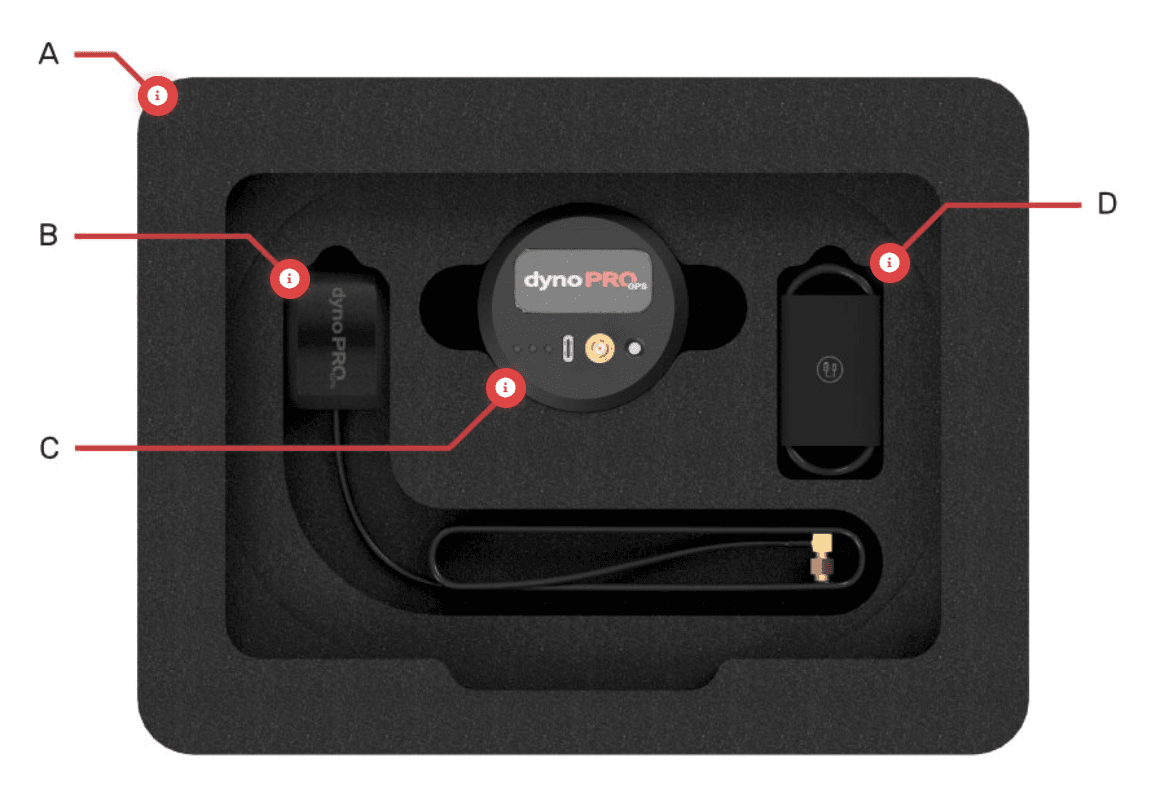

Description of the kit components:

Discover a complete all-in-one solution with versatile applications, quick and easy to use, ensuring reliable performance. A professional mobile road dyno designed for advanced applications.

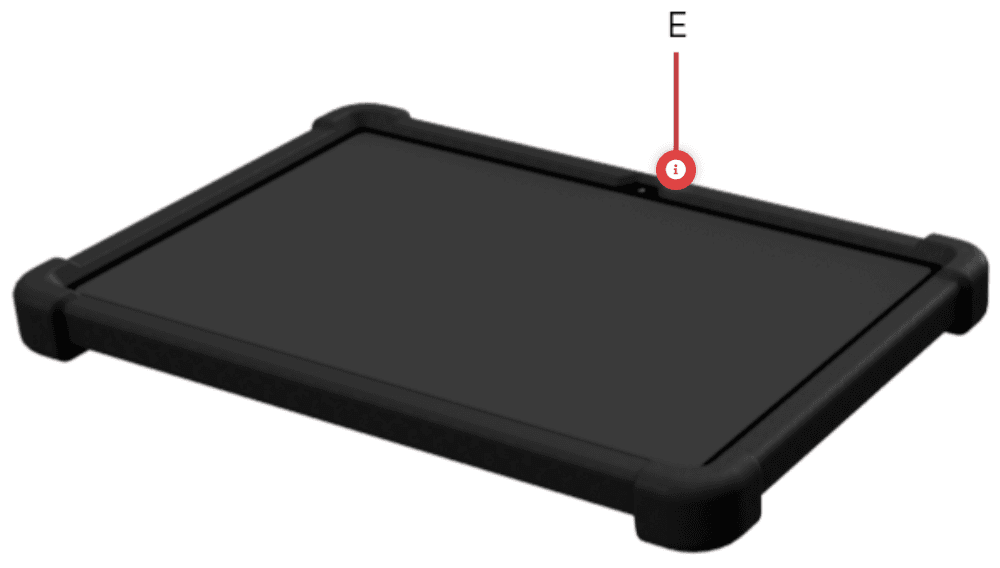

A – Protective case with foam insert   B – GPS antenna   C – dynoPRO GPS sensor   D – Charging / power cable    E – Tablet (with dynoPRO GPS application) in a protective case

DynoPRO GPS – a fast and effective solution:

  • The device features a compact and robust housing made of aluminium and high-quality plastics.
  • Installation takes approximately 2 minutes, after which the system is ready to perform measurements.
  • To perform a measurement, the vehicle weight must be entered – weighing the vehicle is recommended for the most accurate results.
  • The device is equipped with a built-in weather station for measuring temperature and atmospheric pressure (-40°C to +105°C, 300 hPa–1100 hPa).
  • Communication with the dynoPRO GPS sensor is carried out via Bluetooth. The dynoPRO GPS sensor features a built-in battery providing approximately 5 hours of operation.
  • Measurement results are presented in both real and standardized versions according to DIN 70020, SAE J1349 and EWG standards. The measurement repeatability error, when maintaining the same procedure and conditions, is below 1%.
  • The device has no time or quantity limitations regarding the number of measurements performed. Free software updates and technical support are included.
  • The device is covered by a 2-year warranty with the option to extend it.

Device installation:

The quick installation and removal of the dyno allows measurements to be performed anywhere and at any time, which will be especially appreciated by mobile workshops.

Installation and measurement with the dynoPRO dyno:

The device installation consists of several steps.

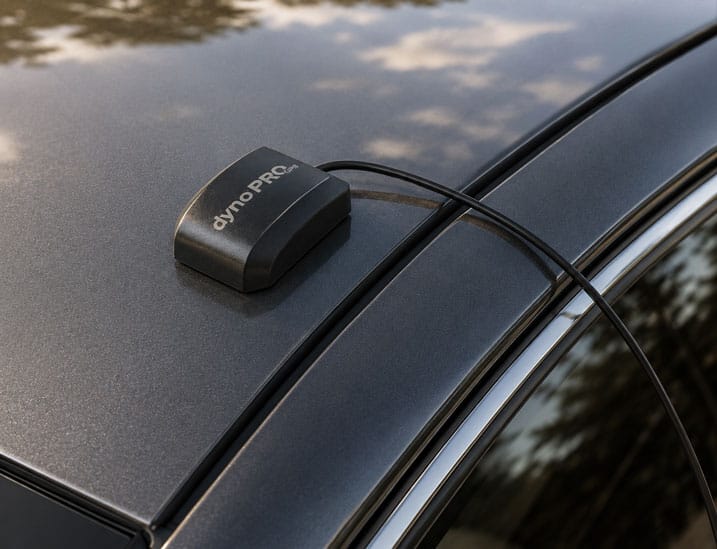

  1. Installation of the GPS antenna on the vehicle roof

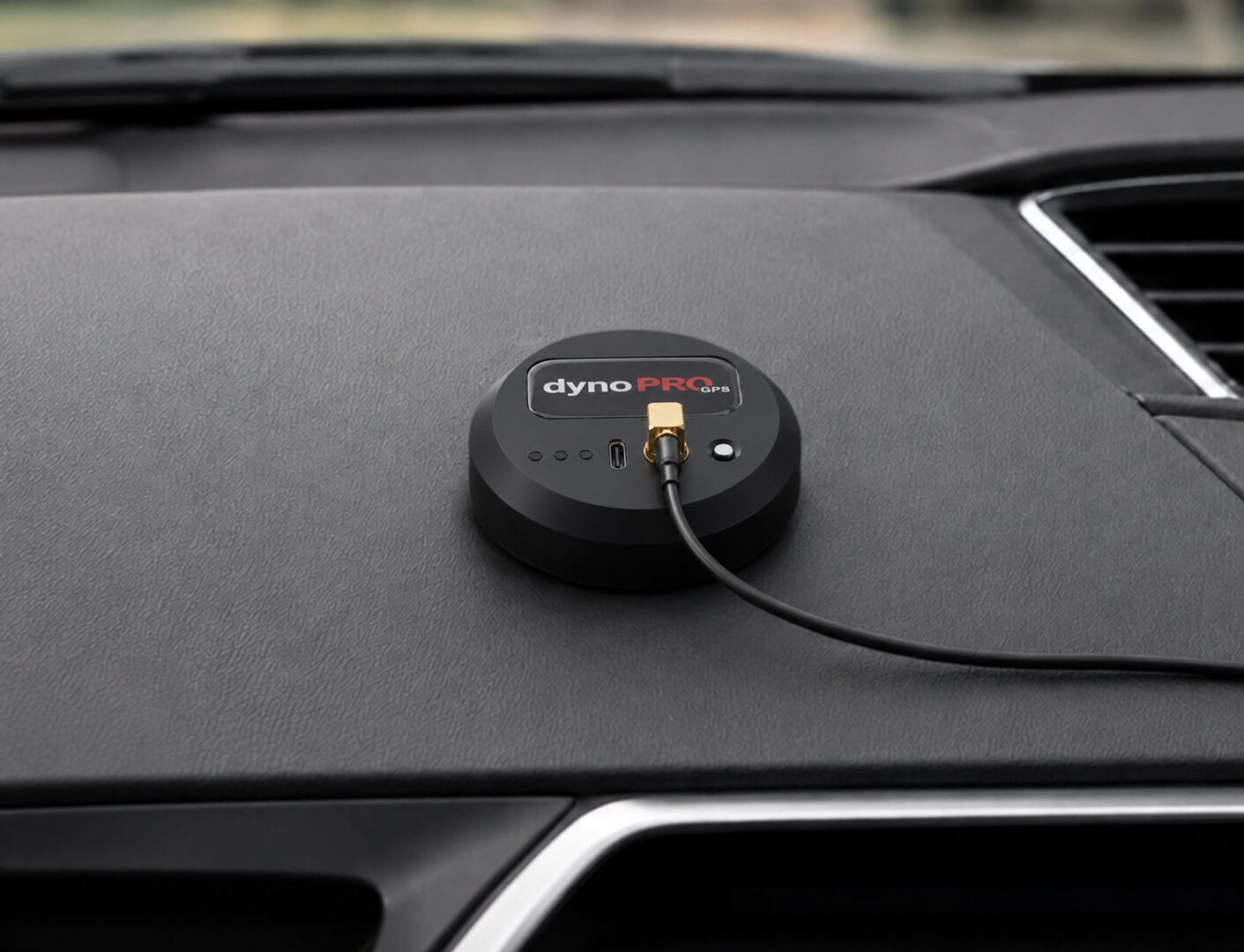

  2. Connecting the antenna to the dynoPRO GPS measurement sensor and placing the sensor in a safe location
  3. Starting the tablet and software

Power measurement usually requires a road section of approximately 1 km, preferably without significant elevation changes.

The measurement procedure consists of the following stages:

  1. Selecting the MEASUREMENT menu

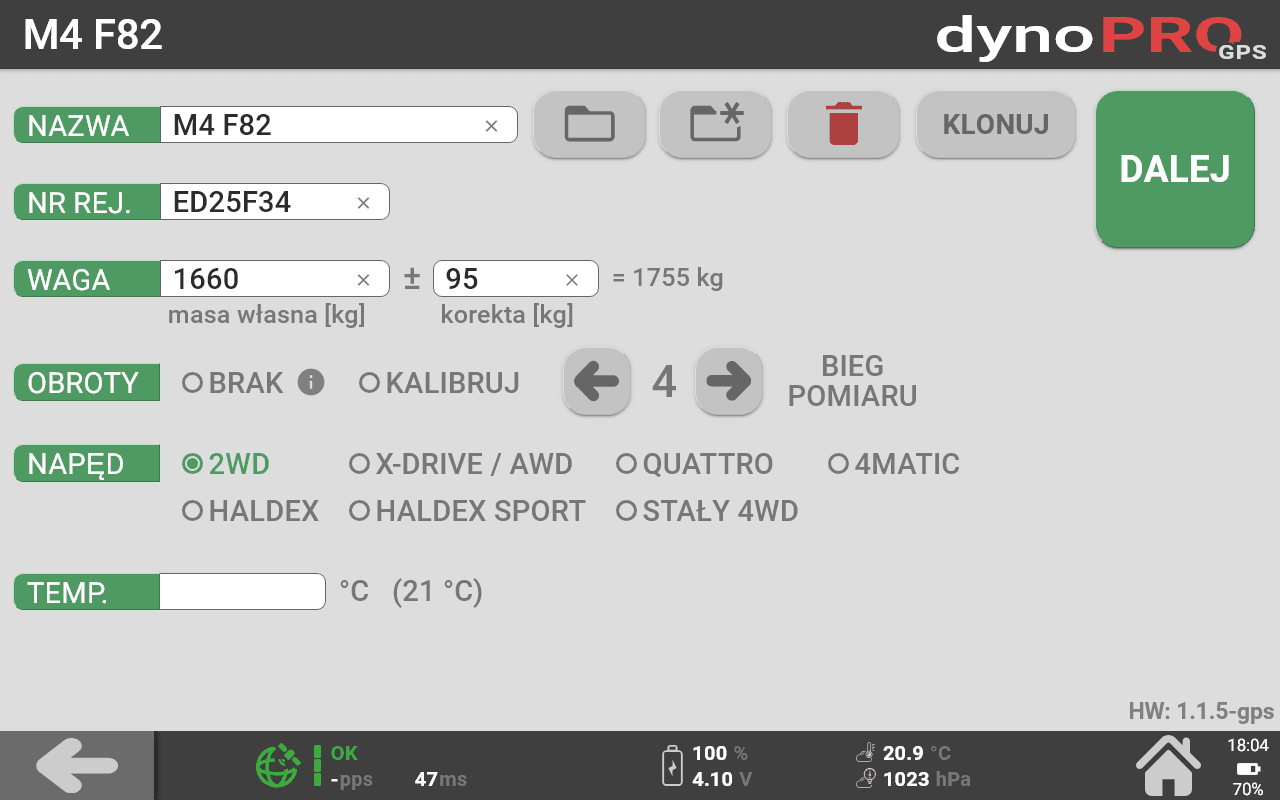

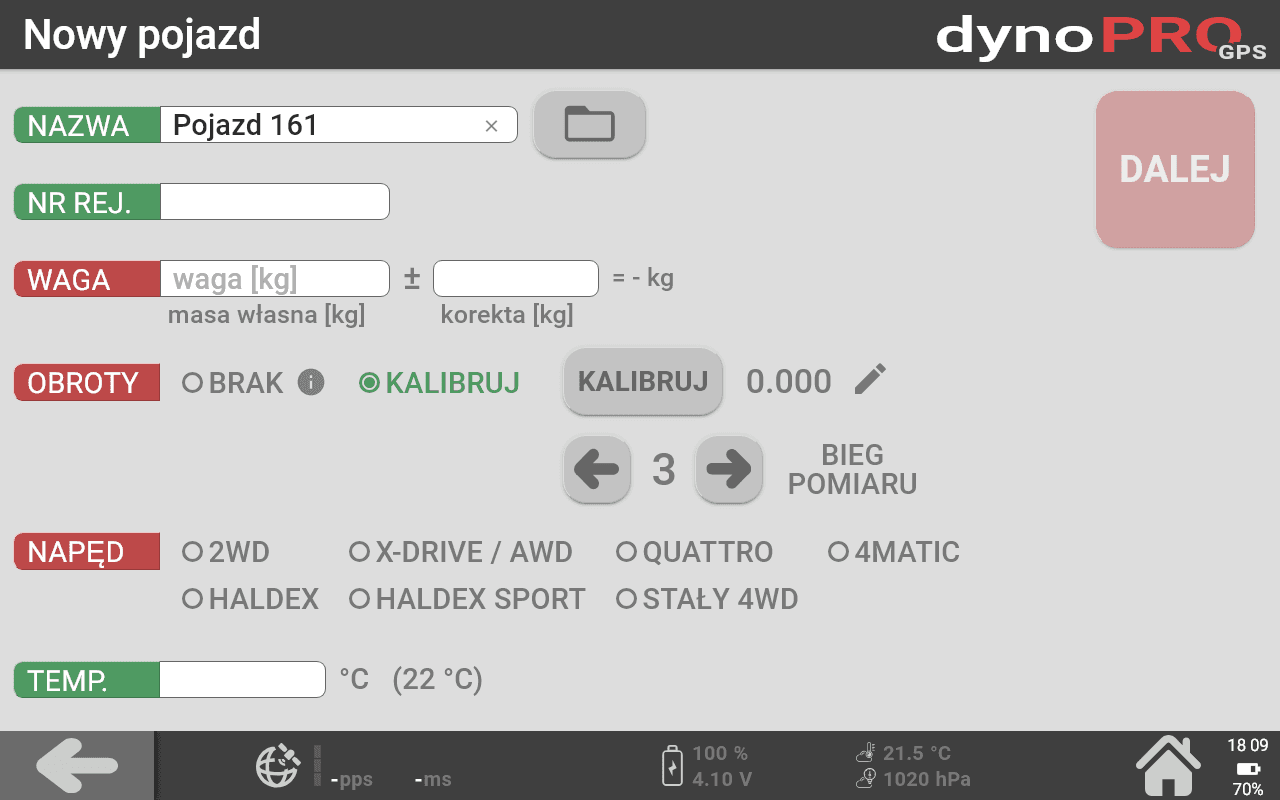

  2. Defining the measured vehicle profile (name, vehicle weight, drivetrain type)
  3. Performing the actual measurement
  • start pomiaru w oprogramowaniu
  • spokojny start pojazdem
  • Engaging 3rd, 4th or 5th gear and accelerating rapidly to the end of the RPM range, then shifting into neutral. The software will begin a 10-second countdown to calculate rolling resistance and aerodynamic drag. There are several additional options available for modifying the measurement method.
  • The software calculates the vehicle’s power and torque and presents the results to the user.

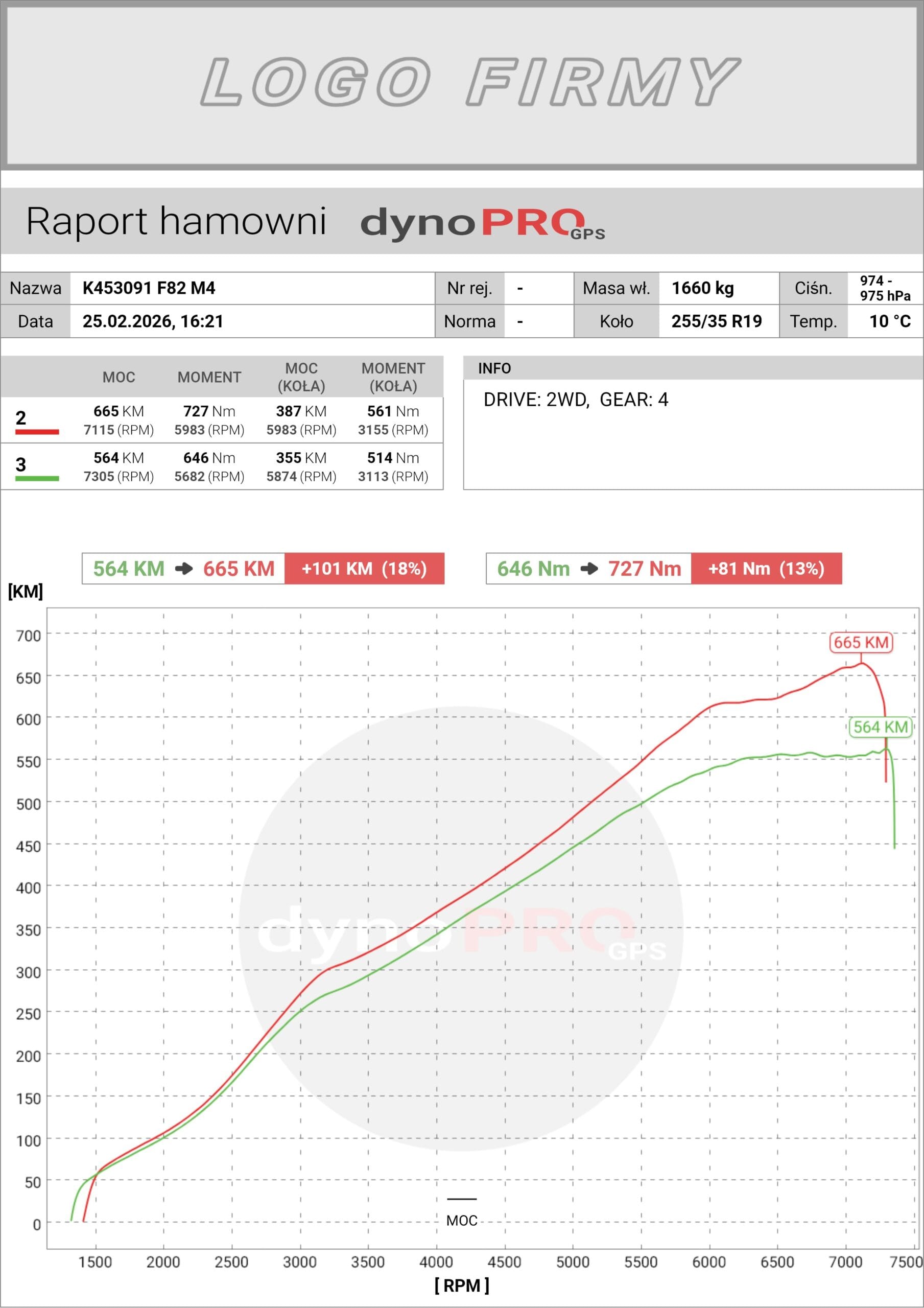

  1. Generating a measurement report (the software creates reports in PDF, JPG and CSV formats and allows them to be sent via email or shared through any messaging application).

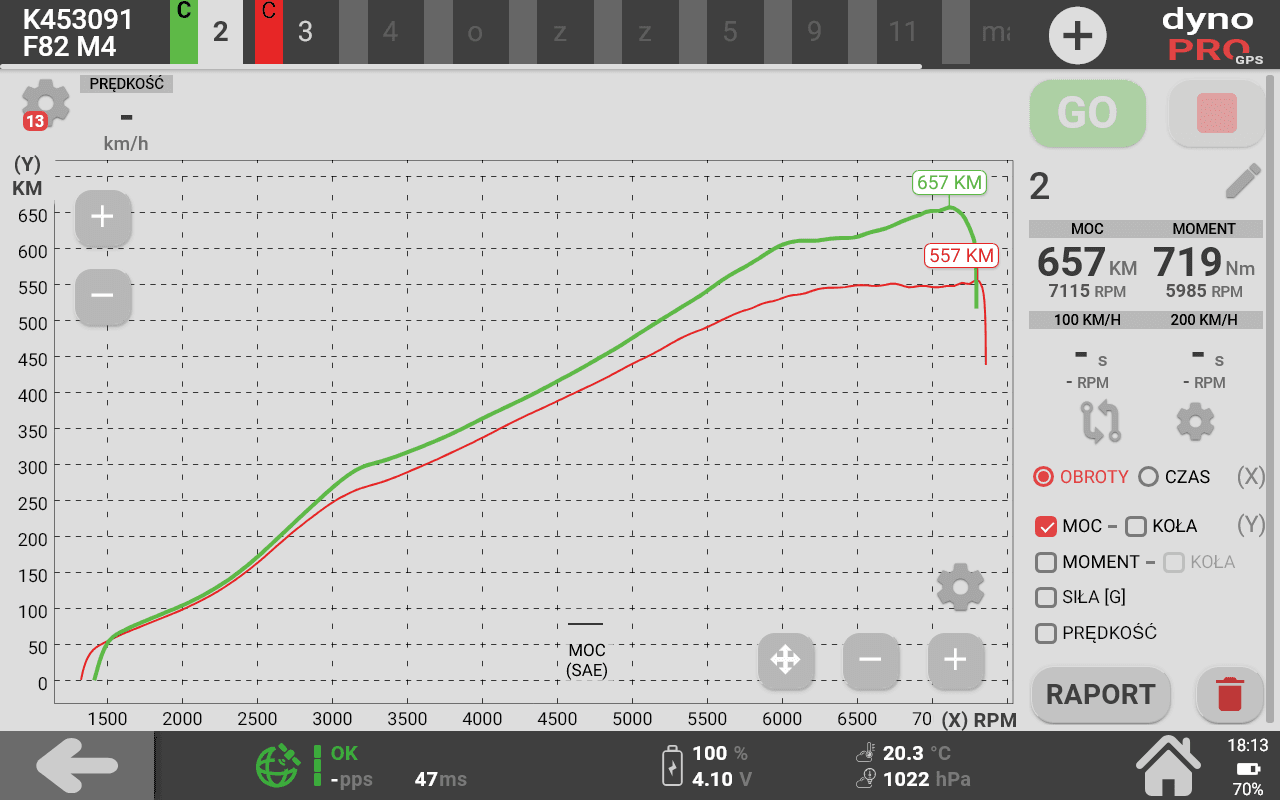

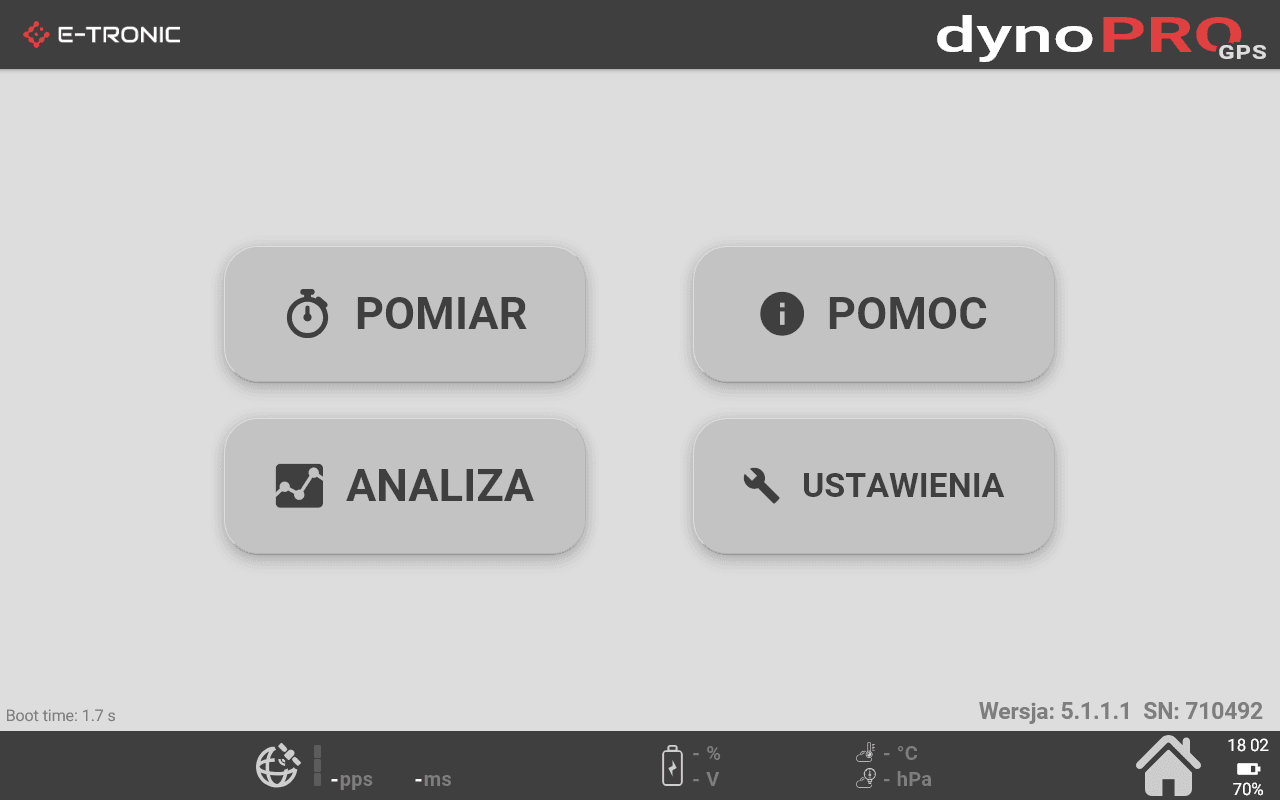

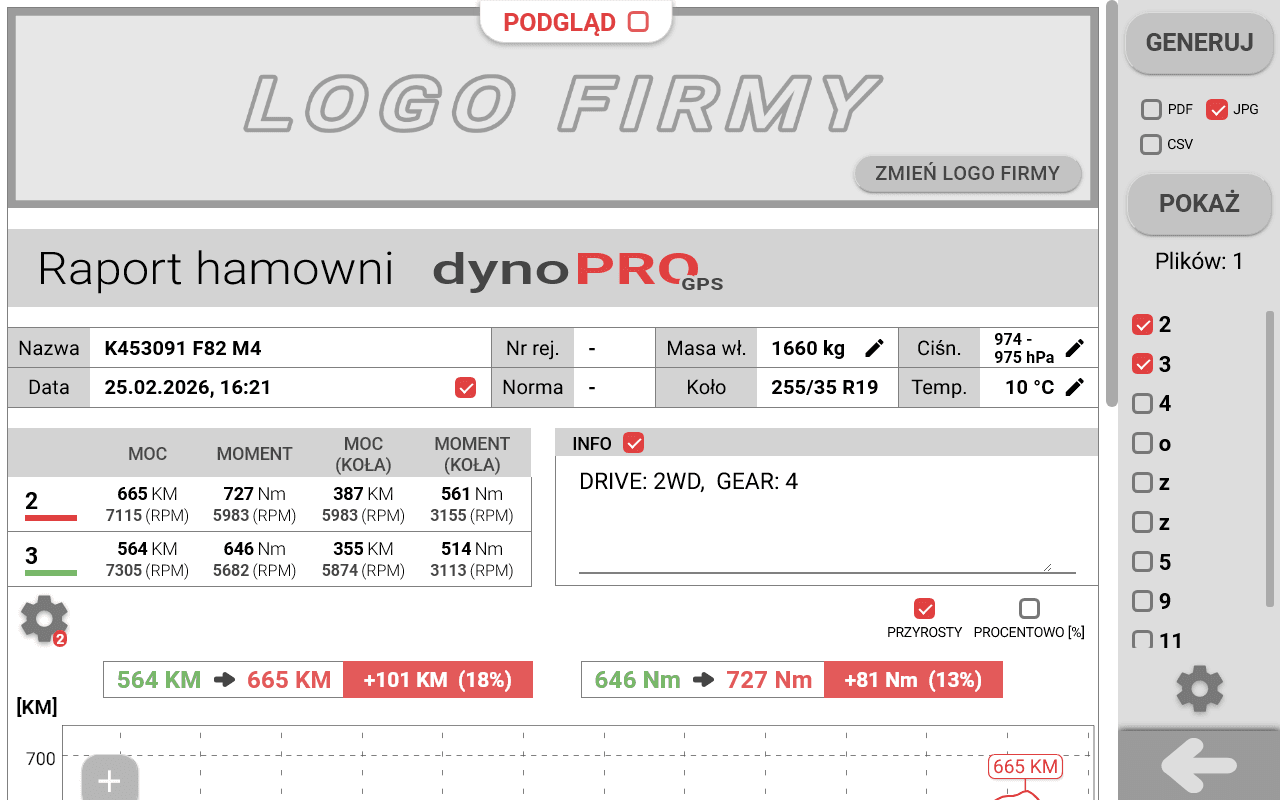

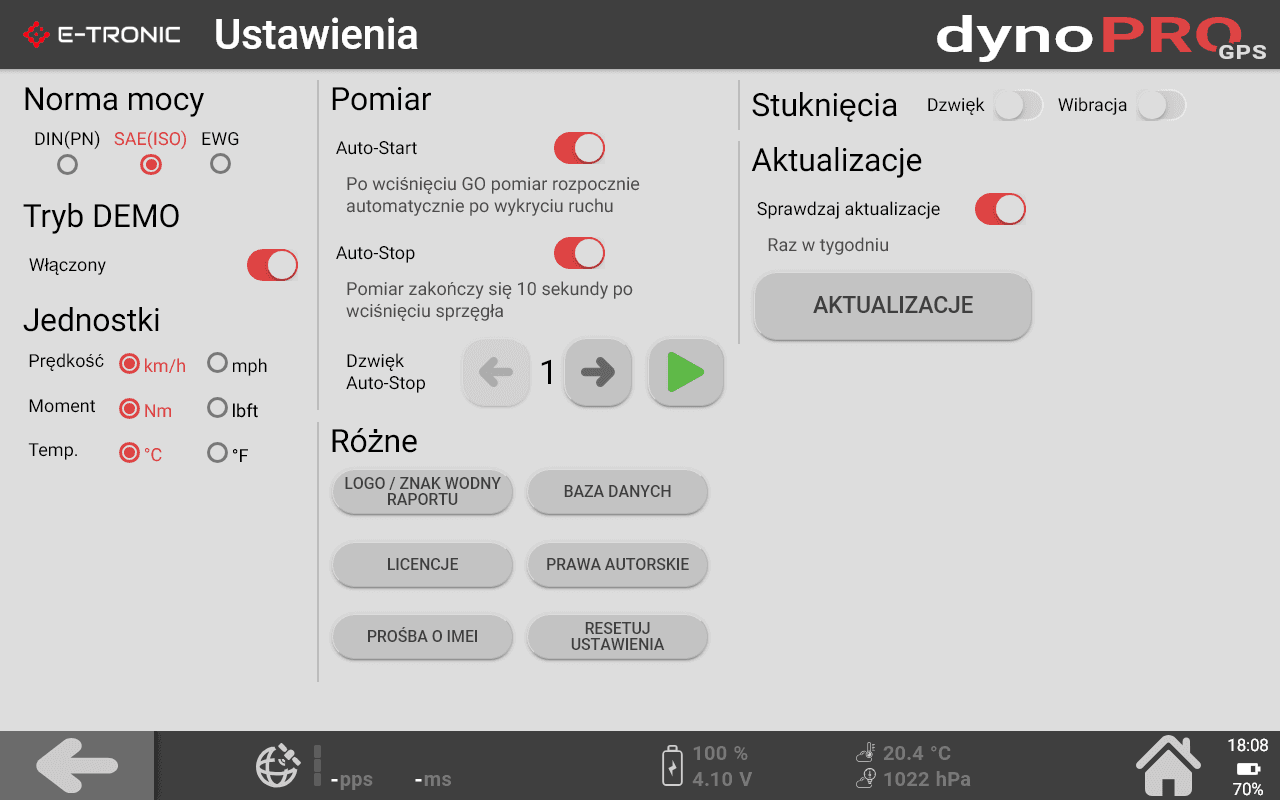

User Interface – Sample dynoPRO Measurements

The kit includes:

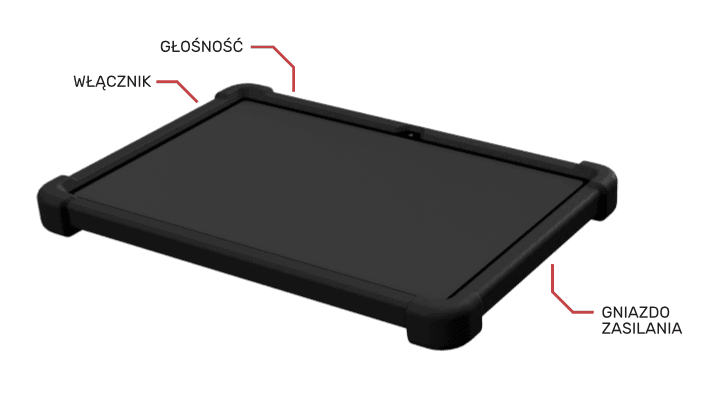

Tablet

Lenovo Tab with a 10.1″ display, 4 GB RAM, 64 GB storage, Wi-Fi, pre-installed with the dynoPRO GPS software.

The tablet included in the kit features a durable aluminium enclosure and an additional protective plastic case for enhanced durability.

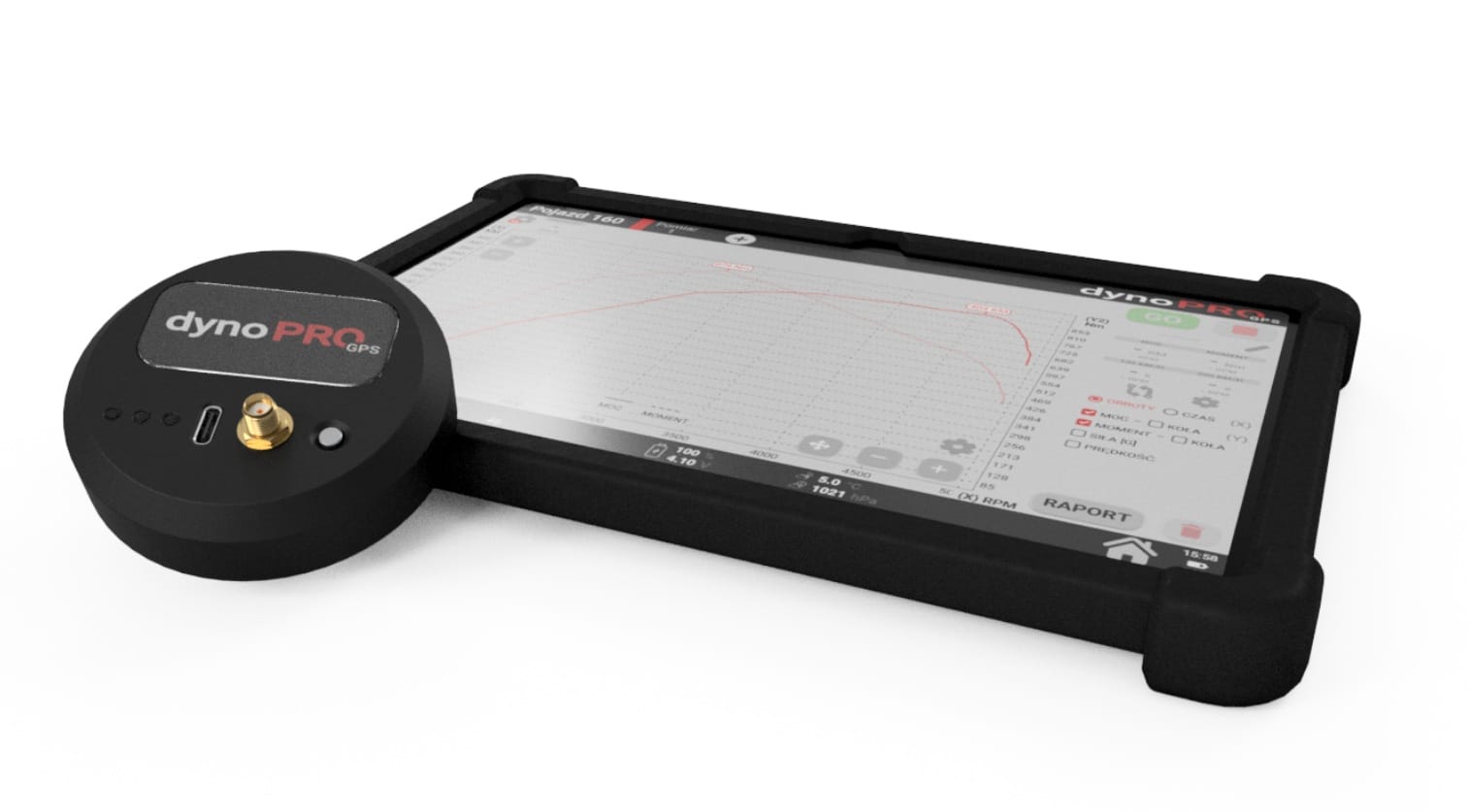

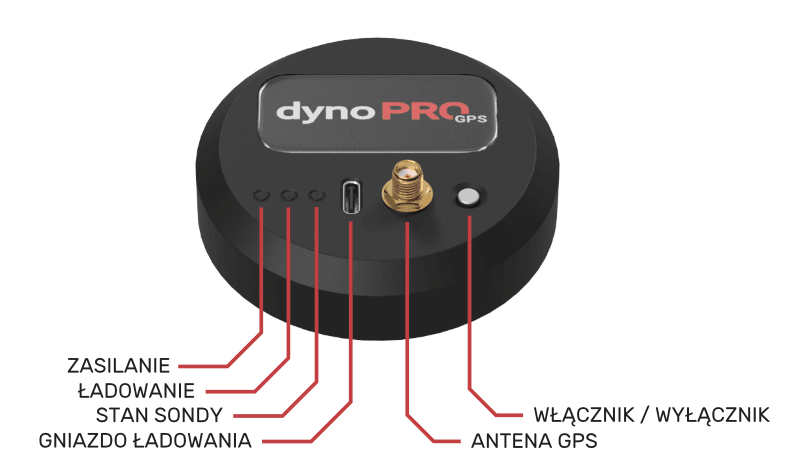

dynoPRO GPS Sensor

Wireless dynoPRO GPS Bluetooth sensor with a built-in weather station.

The dynoPRO GPS sensor features a durable aluminium housing and communicates via Bluetooth. It is equipped with an integrated GPS receiver, an ambient temperature sensor and an atmospheric pressure sensor. The sensor is powered by a built-in rechargeable battery that provides approximately 5 hours of operation. Charging is performed via a USB Type-C connector.

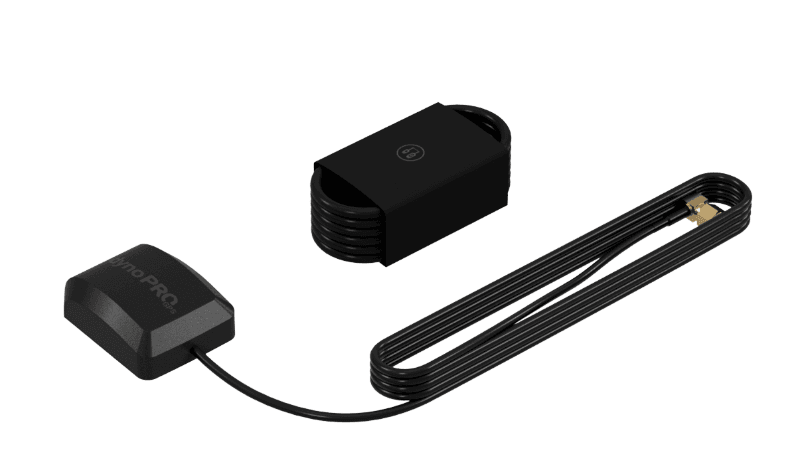

Accessories

Accessory kit – GPS antenna and USB Type-C cable.

The kit includes an active GPS antenna with a magnetic mount, SMA connector and a 2 m cable, as well as a USB Type-C charging cable.

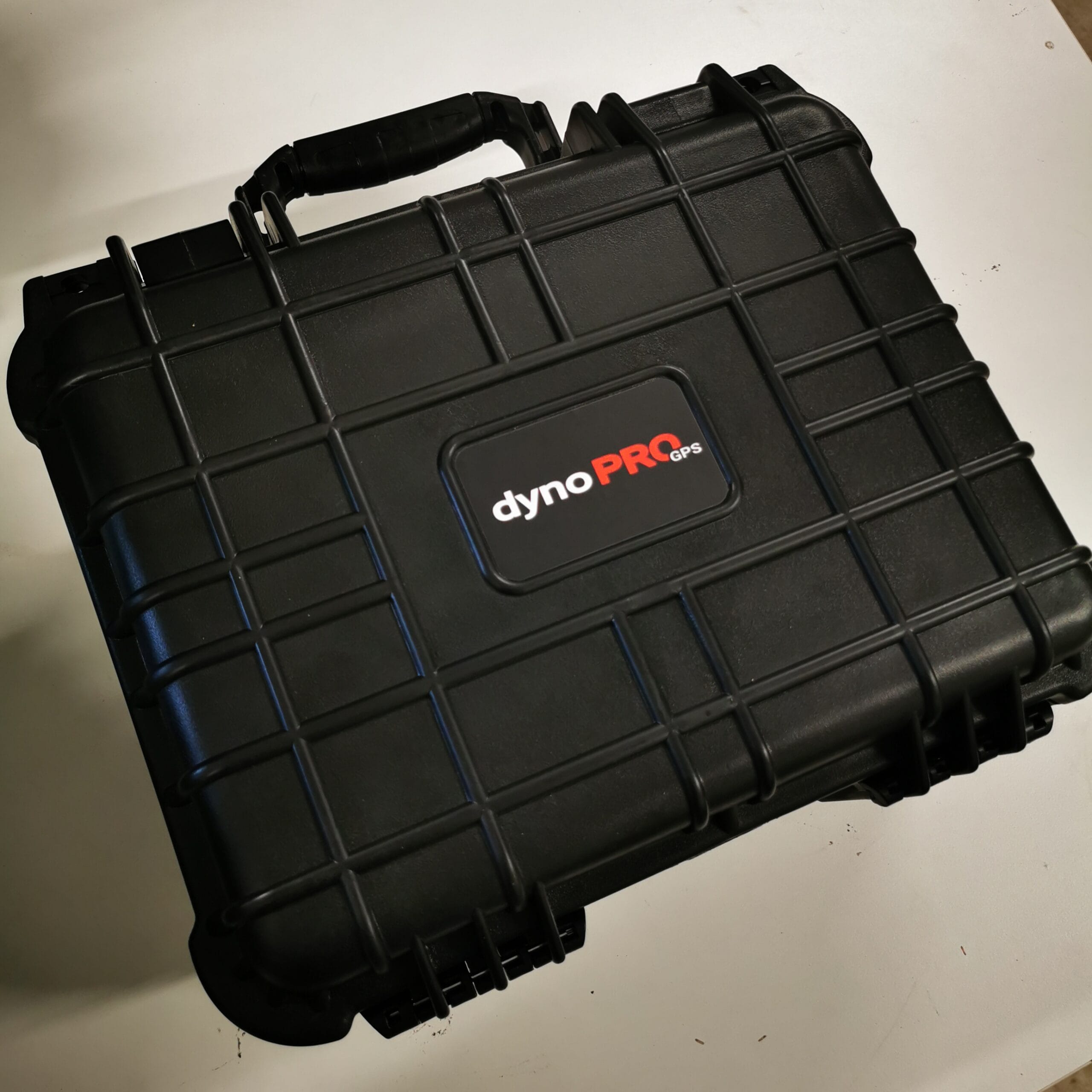

Protective Case

Durable heavy-duty case with a robust construction, made of ABS and polypropylene.

Technical Specifications:

dynoPRO GPS sensor:

  • Sampling rate: 50 Hz + 100 Hz IMU (accelerometer + gyroscope)
  • Wireless communication: Bluetooth
  • Receiver: GPS/GNSS
  • Antenna input: SMA
  • Charging port: USB Type-C
  • Status indicators: 3 LED indicators (USB Type-C power, charging/fully charged, GPS status)
  • Power supply: 3.7 V 1000 mAh Li-Ion rechargeable battery
  • Housing material: Aluminium and plastic
  • Built-in weather station: Temperature range: -40°C to +105°C, pressure range: 500 hPa to 1100 hPa
  • Antenna connector: SMA
  • Compliance and certifications: CE, RED 2014/53/EU, LVD, RoHS, EMC
  • Weight: 115 g

Tablet:

  • Brand and model: Lenovo Tab
  • Display: 10.1″ IPS, 1920 × 1200 px (WUXGA)
  • Processor: MediaTek Helio G85, 2 × Cortex-A75 @ 2.0 GHz + 6 × Cortex-A55 @ 1.8 GHz
  • Operating system: Android 14/15
  • Memory: 4 GB RAM, 64 GB internal storage
  • Positioning systems: GPS, A-GPS, BeiDou, Galileo, GLONASS
  • Connectivity: Wi-Fi 5 (802.11a/b/g/n/ac), Bluetooth 5.3
  • Rear camera: 8 MP with autofocus
  • Front camera: 5 MP with autofocus
  • Battery: 3.7 V, 5100 mAh
  • Charging port: USB Type-C
  • Weight: 425 g

GPS Antenna:

  • Antenna type: Active
  • Supply voltage: 3 V / 5 V
  • Frequency: 1575.42 MHz
  • Connector type: SMA
  • Cable length: 2 m
  • Weight: 50 g

Protective Case:

  • External dimensions: 35 × 29 × 15 cm (L × W × H)
  • Material: ABS + polypropylene
  • Weight: 1.82 kg

Tablet Protective Case:

  • Size: 10.1″
  • Material: Silicone
  • Weight: 205 g

Charging Cable:

  • Connector: USB Type-C
  • Length: 2 m
  • Weight: 30 g

Additional Information:

  • Measurement correction standards:

– SAE J1349
– DIN 70020
– EWG 80/1269

  • Measurement repeatability: < ±1%
  • Free software updates
  • Technical support
  • Available languages: English, German, French, Spanish, Polish
  • Warranty: 24 months (extendable)
  • Total kit weight: 2.64 kg
