Programmer Xhorse Mini Prog XDPPR0EN

Programmer Xhorse Mini Prog XDPPR0EN

Xhorse Mini Prog XDPPR0EN is a compact, portable programmer designed for reading and writing data from EEPROM memories, selected ECUs, and immobilizer modules. The device allows many operations to be performed without soldering or removing the chip from the PCB. Thanks to interchangeable test probes, it is possible to connect directly to the supported memory chip. Mini Prog does not require a computer. The device is operated via the Xhorse application on a smartphone or tablet running Android or iOS, with communication via Bluetooth or Wi-Fi. The programmer is designed for mobile work involving memory reading and writing, IMMO and ECU modules, automotive electronics repair, and data backup.

Key features:

• reading and writing EEPROM – 24Cxx, 93Cxx, 95xxx, 25xxx,
• reading and writing data from selected ECUs,
• support for DFLASH and PFLASH memories in selected ECUs used in BMW, Audi, and Volkswagen vehicles,
• reading and writing IMMO data,
• solder-free operation,
• PIN status and connection detection,
• ability to create data backups,
• reading and writing data from selected instrument clusters,
• cloud data storage,
• operation via the Xhorse application,
• communication via Bluetooth and Wi-Fi.

Supported IMMO modules

Depending on the adapter used and the current device support coverage, Xhorse Mini Prog can work with modules including:

• BMW – BDC, CAS3, CAS3+, CAS4, CAS4+, FEM,
• Mercedes-Benz – EIS / EIZ,
• Porsche – BCM,
• Land Rover – RFA,
• Volvo – CEM, KVM.

Mobile operation

Xhorse Mini Prog is designed for mobile use. A compatible smartphone or tablet with the Xhorse application is sufficient to operate the device.

The device features:

• Bluetooth and Wi-Fi connectivity,
• built-in 2550 mAh battery,
• approximately 5 hours of operating time,
• low weight of approximately 0.21 kg.

The built-in display allows the user to monitor the basic device status, including the battery charge level.

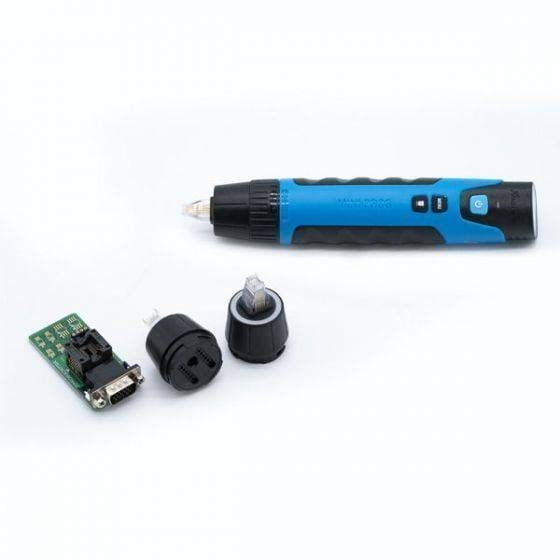

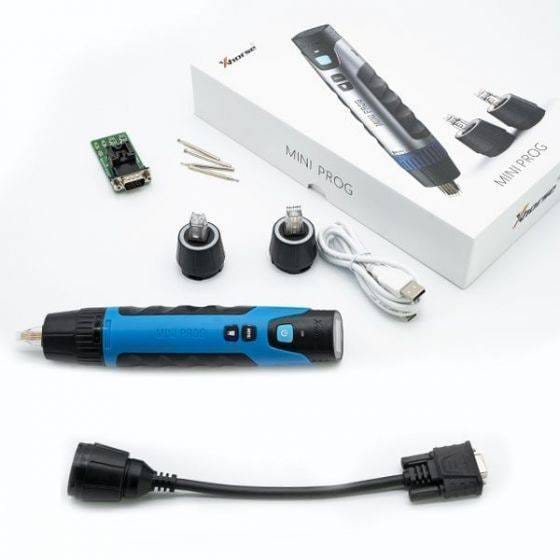

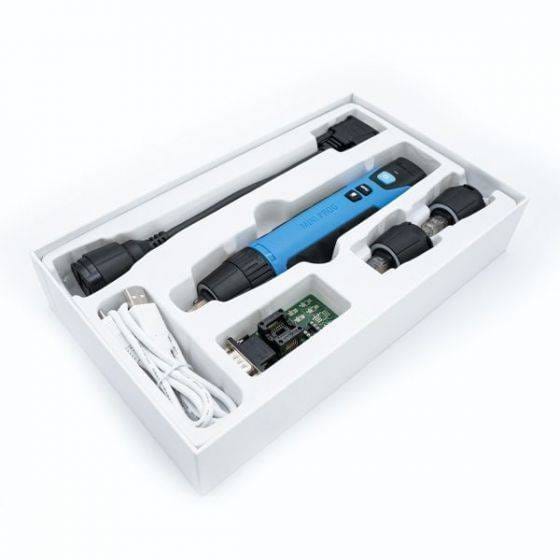

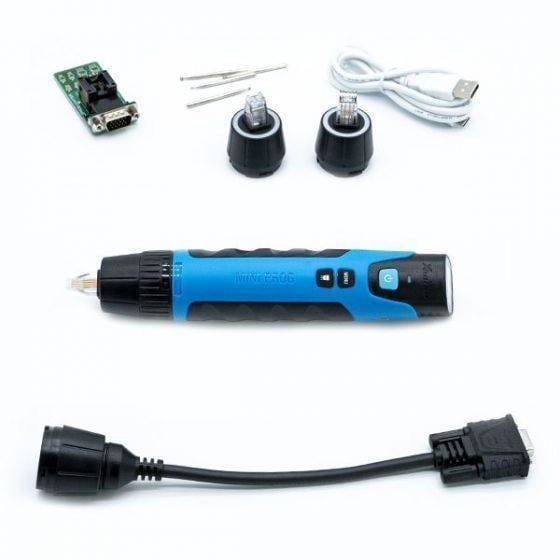

Package contents

• Xhorse Mini Prog programmer,
• 3 detection connectors / test probes:
  • DIP8,
  • wide SOP8,
  • standard SOP8,
• DB15 cable,
• USB cable,
• EEPROM adapter.
