Launch X-431 Euro Tab III + ScopeBox + TSGUN

Launch X-431 Euro Tab III

The X-431 EURO TAB III is the latest diagnostic tool from LAUNCH, designed to meet the demands of European workshops. It runs on a stable Android 9.0 system and combines traditional vehicle diagnostics with remote technical support, making daily work easier for mechanics and service centers. Equipped with a large 13.3-inch clear display and the modern SmartLink C head, the tester offers extensive vehicle and system coverage, access to 40 service functions, and 3 dedicated functions for electric vehicles (EV). The X-431 EURO TAB III allows online programming and coding, ADAS system calibration, TPMS monitoring, supports PassThru and DoIP standards. Additionally, the tester offers intelligent diagnostics, automatic vehicle recognition, access to the HaynesPRO database, and remote diagnostics through Super Remote. The set also includes the TSGUN for TPMS operation with 4 sensors, as well as the Launch Scopebox oscilloscope with a full set of accessories required for operation. This provides a complete diagnostic package ready for professional servicing of all vehicles in the workshop.

Key features of the X-431 Euro Tab III:

• Support for the latest protocols – compatible with DoIP, J2534, and RP-1210 protocols, enabling service for multiple brands and vehicle types.
• Advanced diagnostic functions – built-in oscilloscope, HV battery status analysis, and TPMS sensor support.
• Integrated SmartLink C remote diagnostics – the ability to perform diagnostics remotely, also on commercial and heavy-duty vehicles.
• Large and clear 13.3″ display – Full HD 1920×1080 resolution ensures comfortable and clear work.
• Haynes PRO Electronics technical database – extensive wiring diagrams, service information, diagnostic data, and assistance in identifying and solving faults.
• New Cloud-Print – secure access and archiving of DTC/ADAS reports from anywhere.
• Intelligent Diagnostic Assistant (IDA) – user guide with tips and access to the instruction database.
• Extended CarSet Pro database – detailed connection diagrams and component data supporting diagnostics.
• EV tool package – functions dedicated to electric vehicles, including high-voltage battery diagnostics.
• Built-in O2-2 Scopebox oscilloscope – precise testing and analysis of electrical signals in vehicles
• TSGUN TPMS system – configuration, monitoring, and programming of tire pressure sensors
• Hardware comes from official Launch Europe distribution.

Technical specifications:

• Operating System: Android 9.0
• Processor: Octa-core 2.0 GHz
• RAM: 8 GB
• Storage: 256 GB
• Display: 13.3″ IPS
• Resolution: 1920×1080, 16:9
• Battery: 9360 mAh, 7.6 V / 71.1 Wh
• WiFi: 2.4 GHz and 5 GHz
• Ports: USB Type-C; USB Type-A; HDMI; DC
• Front Camera: 8 MP
• Rear Camera: 13 MP
• Dimensions: 353 x 236 x 71 mm

Wireless SmartLink C Module:

Functions:

• Fast local diagnostics via Bluetooth
• Remote diagnostics (LAUNCH SRDs) via Wi-Fi or Ethernet cable
• DoIP compatibility
• Pass-Thru mode

Technical Specifications:

• Display: 3.97-inch, monochrome
• Resolution: 320 × 480
• Operating Voltage: DC 9–36 V
• Communication: Ethernet / Wi-Fi
• Wi-Fi: 5G
• USB: USB 2.0 Type-B
• Internal Storage: 8 GB
• RAM: 256 MB
• Dimensions: 204 × 110 × 45 mm

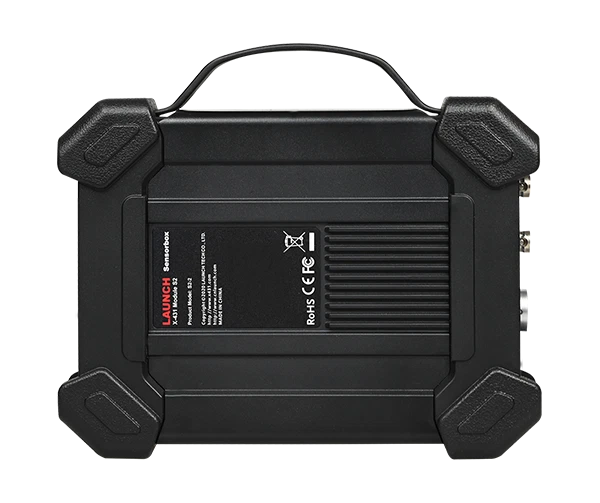

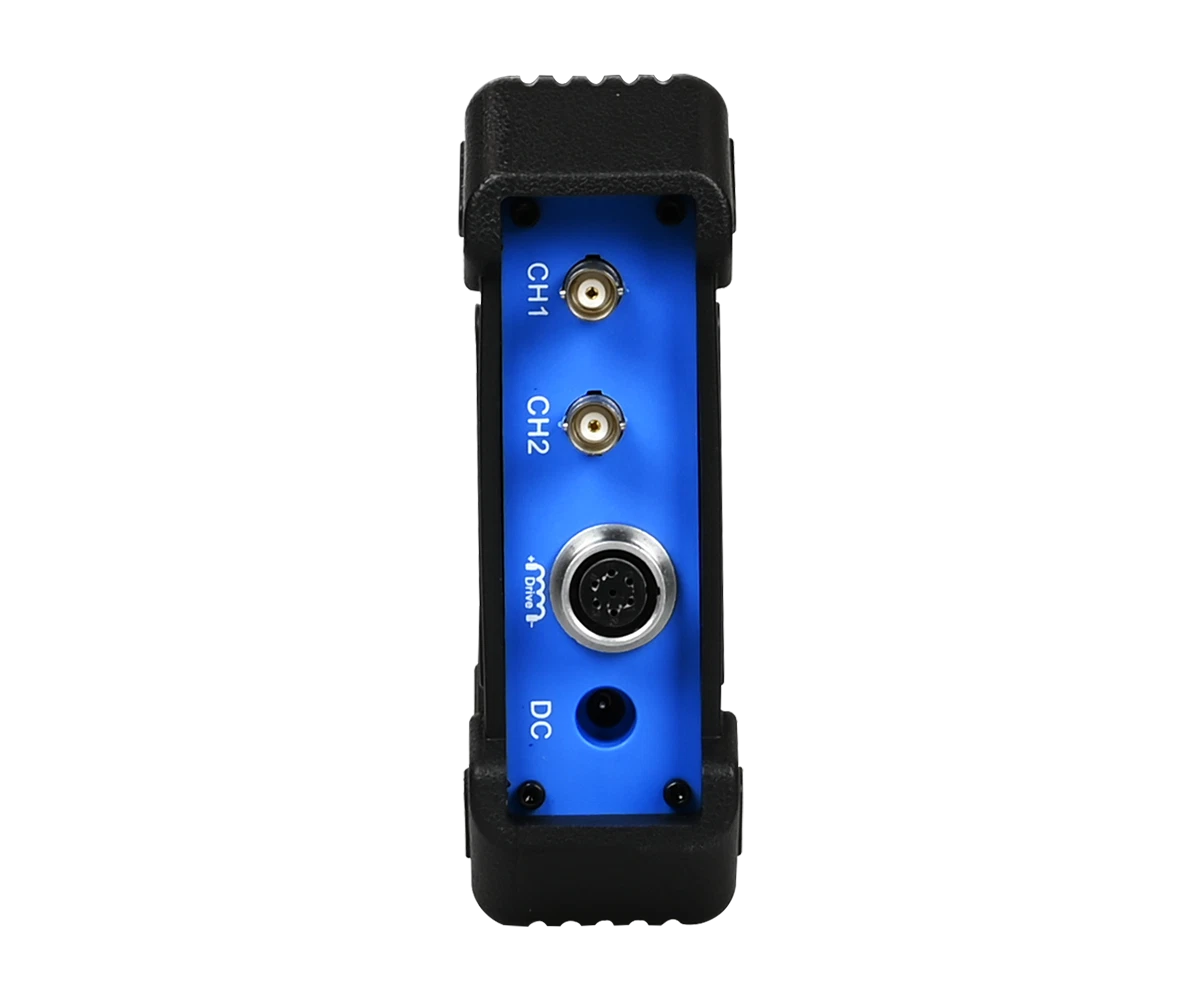

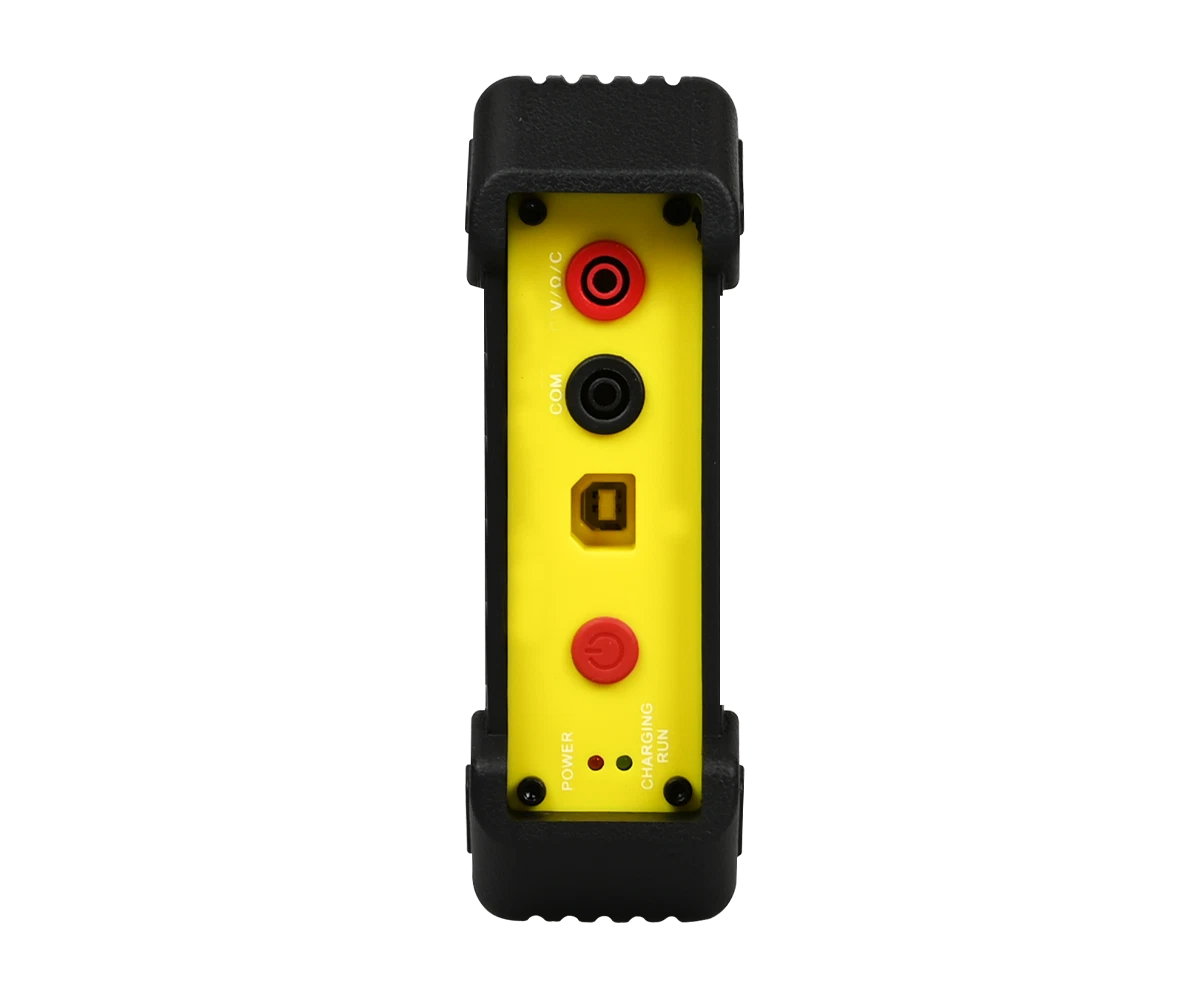

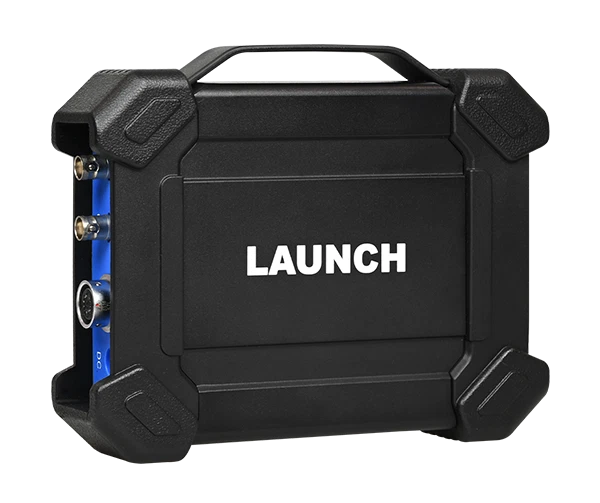

Capabilities of the O2-2 Scopebox oscilloscope:

• The Launch automotive oscilloscope enables quick detection and evaluation of faults in vehicle electronics and wiring.
• The O2-2 Scopebox allows not only fast signal capture in circuits but also slow waveform display for detailed observation and analysis.
• It enables recording and storage of tested circuit signals, which significantly simplifies fault diagnostics.

TSGUN capabilities:

• 433 MHz tire pressure sensors can be activated remotely.
• The function allows copying and assigning sensor IDs to the LAUNCH TPMS system.
• It enables monitoring of tire parameters such as pressure, temperature, and battery level.

40 Service Functions:

• Electric Parking Brake
• Oil Change Service
• Steering Angle Sensor Calibration
• Battery Retraining
• Brake Bleeding System
• Diesel Particle Filter
• Injector Coding
• Retraining Throttle Valve
• Tyre Pressure Monitoring System
• Crankshaft Position Sensor
• Adaptive Driving Light
• Transmission Adaptive Value Reset
• Sunroof
• Start-Stop Reset
• Gas Particulate Filter Regeneration
• Immobiliser
• Turbo Matching
• FRM-Reset
• ECU Reset
• Window Regulator Reset
• Gateway Module Data Calibration
• High Voltage Battery Diagnostic
• Exhaust Gas Recirculation
• Drivers Seat Memory
• Transport Mode
• Intelligent Cruise Control System
• Engine Power Balance Monitoring
• AdBlue Reset
• Clutch Matching
• Immobiliser Reset
• Coolant Venting
• Air/Fuel Reset
• Chassis Calibration
• Rain Light Sensor
• Nitrogen Oxid Sensor Reset
• A/C System Relearn
• Tyre Diameter Reset
• Immo PROG
• Menu Language
• And many more…

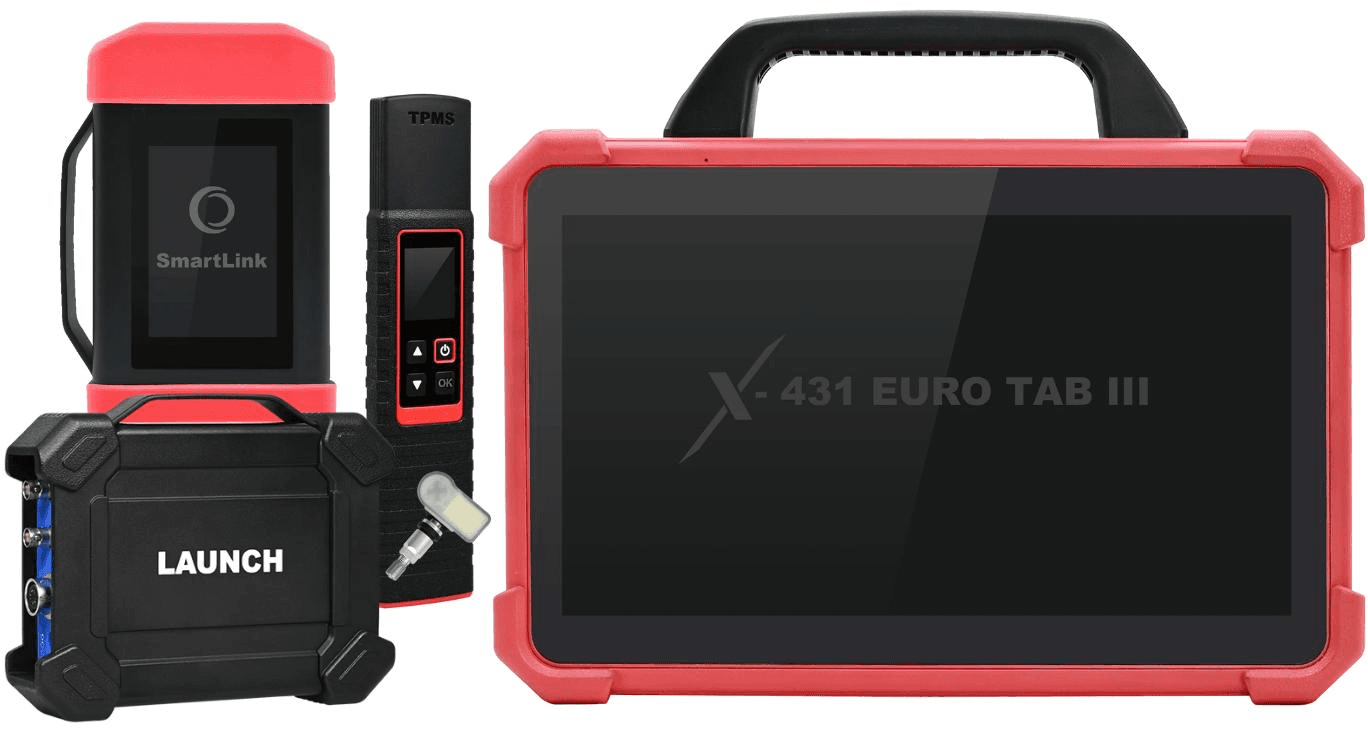

The kit includes:

• Launch X-431 Euro Tab III

• VCI SmartLink C diagnostic module

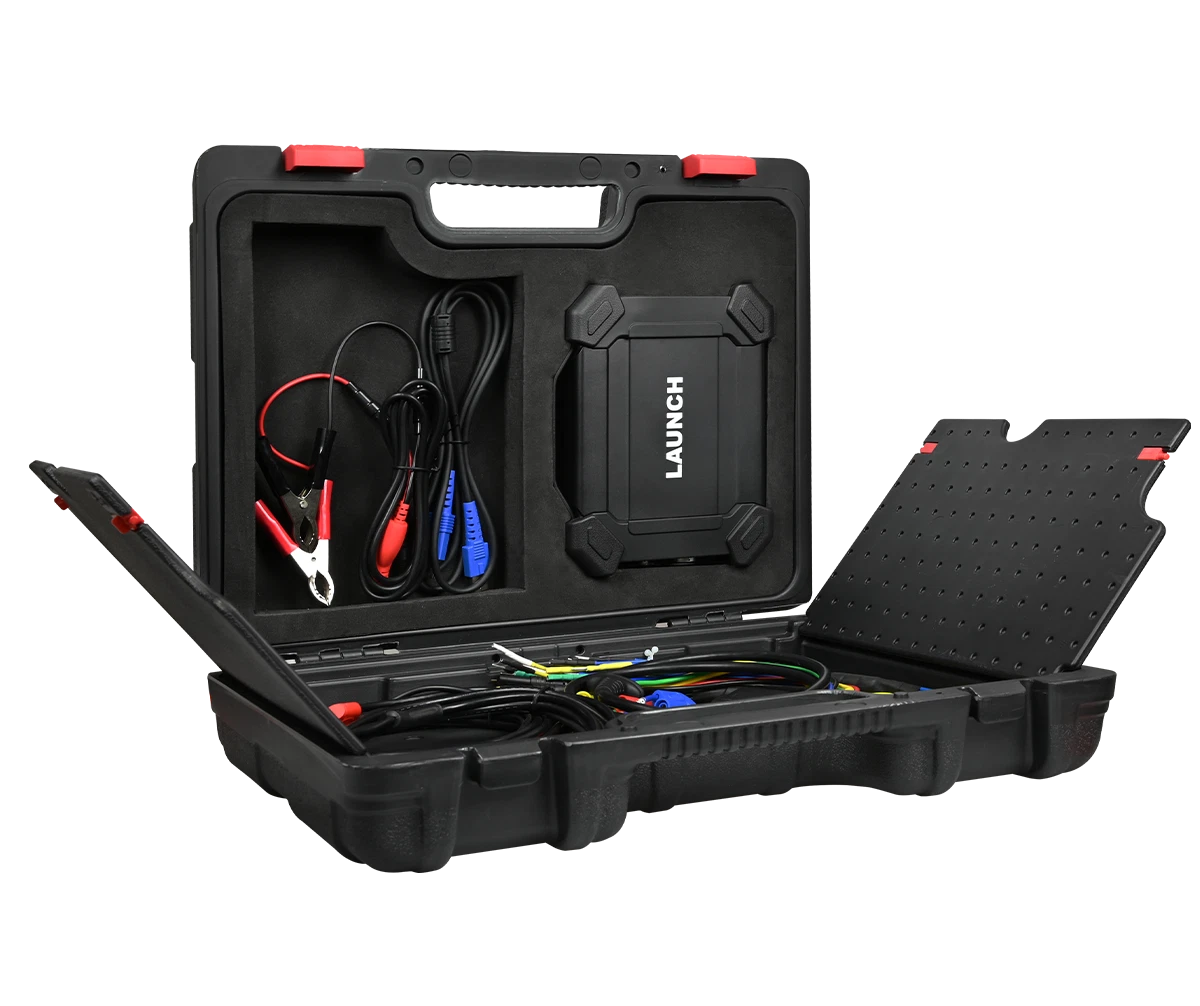

• Launch O2-2 ScopeBox oscilloscope with accessories
• TSGUN TPMS module
• 4 TPMS sensors
• DBScar, diagnostic connector BENZ-38
• DBScar, diagnostic connector BENZ-14
• DBScar, diagnostic connector BMW-20
• HDMI cable
• OBD I adapter
• Double clamp power cable
• Cigarette lighter cable
• USB Type-A to USB Type-C cable
• USB Type-A to USB Type-B cable
• SmartLink C connection cable
• LAN cable
• Power adapter
• AC250V fuse
