LAUNCH X431 O2-2 Scopebox

LAUNCH X431 O2-2 Scopebox

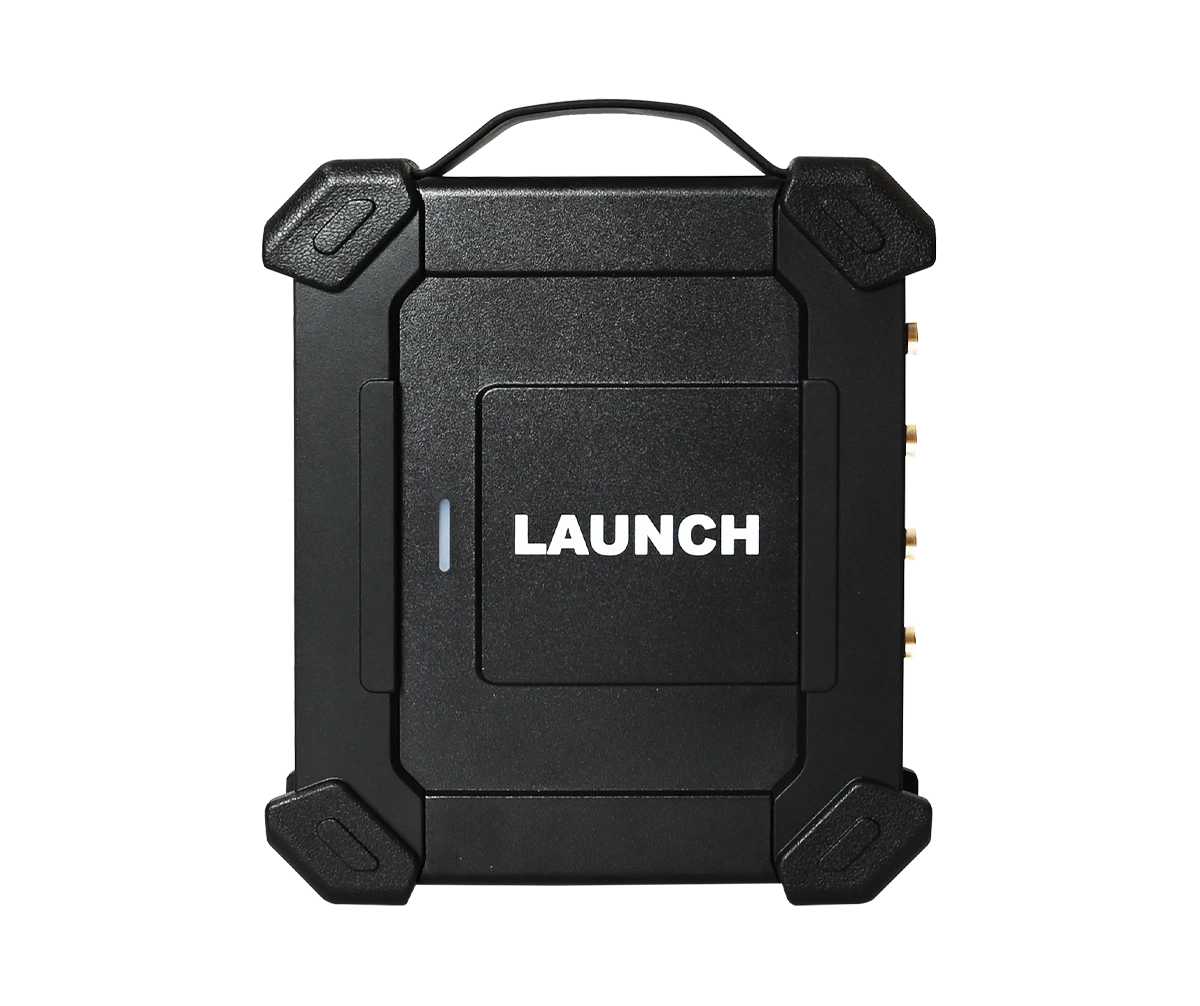

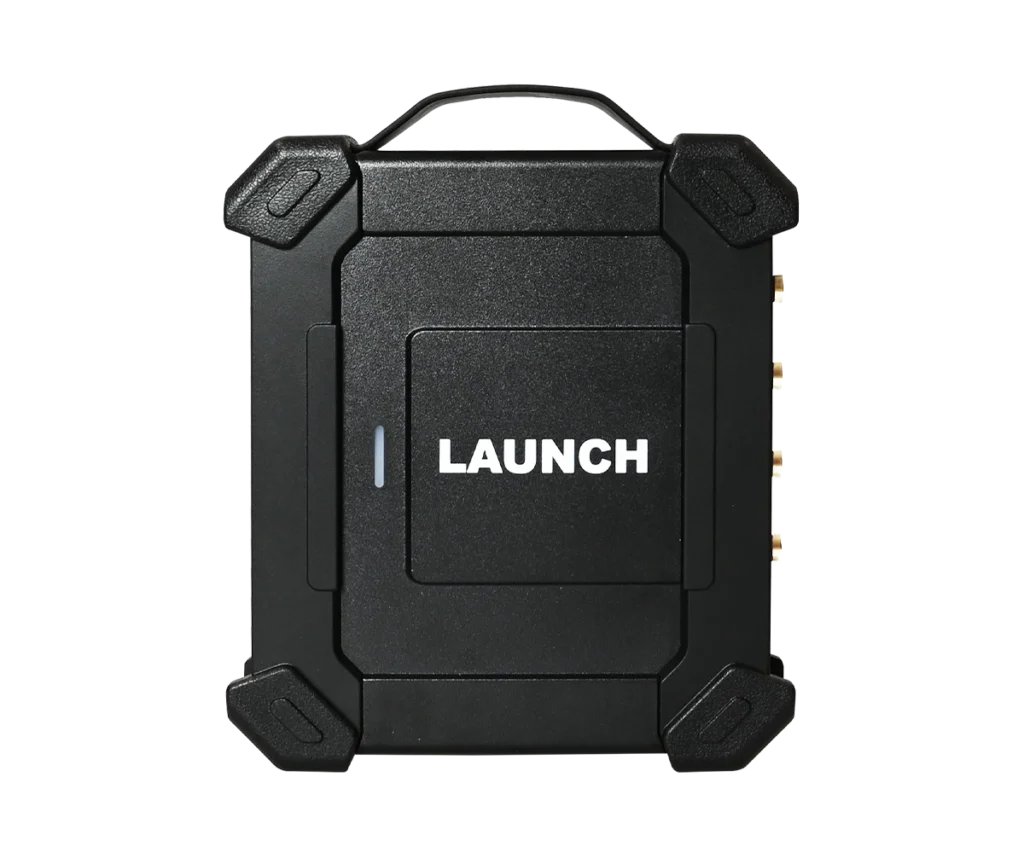

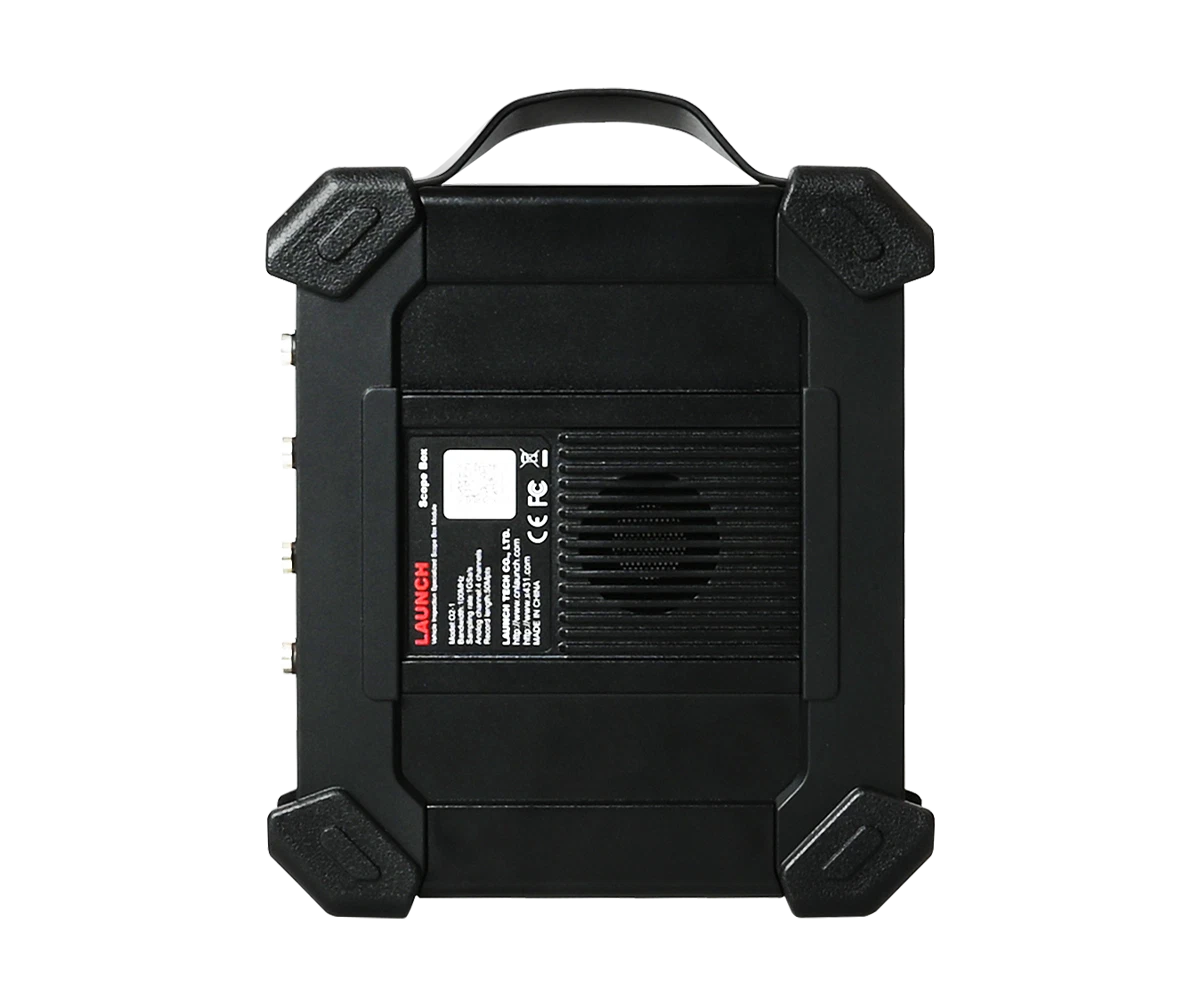

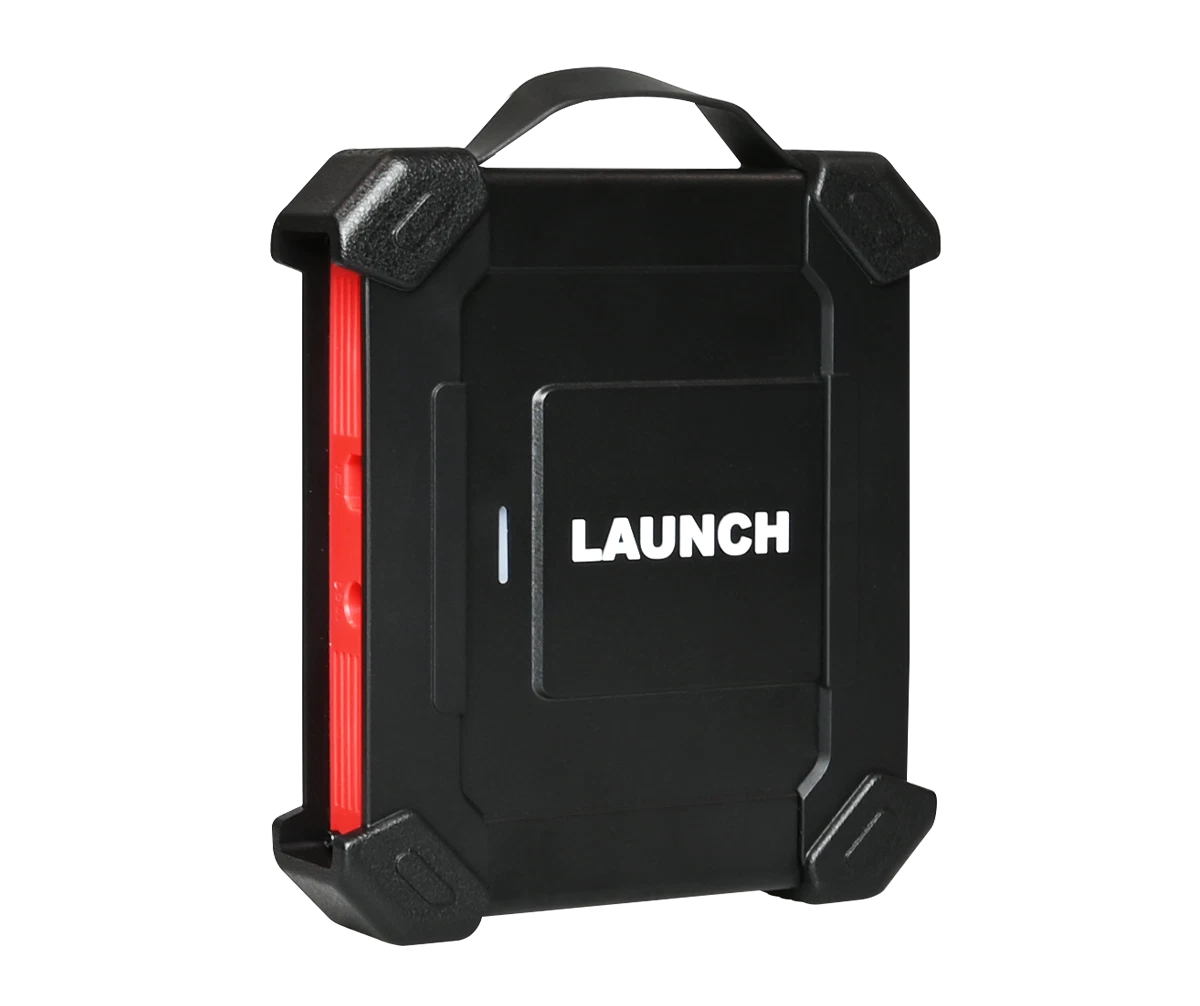

The LAUNCH X-431 O2-2 ScopeBox is a professional 4-channel automotive oscilloscope that expands the capabilities of compatible Launch X-431 diagnostic tools by providing detailed electrical signal analysis. The device allows users to monitor signal waveforms in real time, making it easier to identify faults in sensors, actuators and vehicle electronic systems. The oscilloscope supports simultaneous measurement across four channels, allowing users to compare waveforms and diagnose faults that may be difficult to detect using a standard diagnostic tool. Recorded waveforms can be analyzed directly on the screen of a compatible Launch X-431 device.
With its 100 MHz bandwidth, high sampling rate and advanced measurement functions, the O2-2 ScopeBox is suitable for both routine diagnostics and troubleshooting intermittent electrical and electronic faults.

Diagnostic Capabilities

The LAUNCH O2-2 ScopeBox offers the following functions:

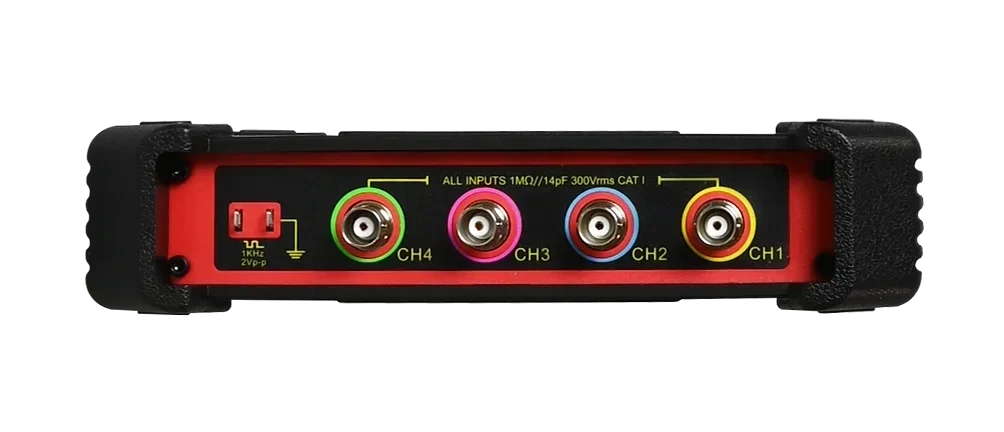

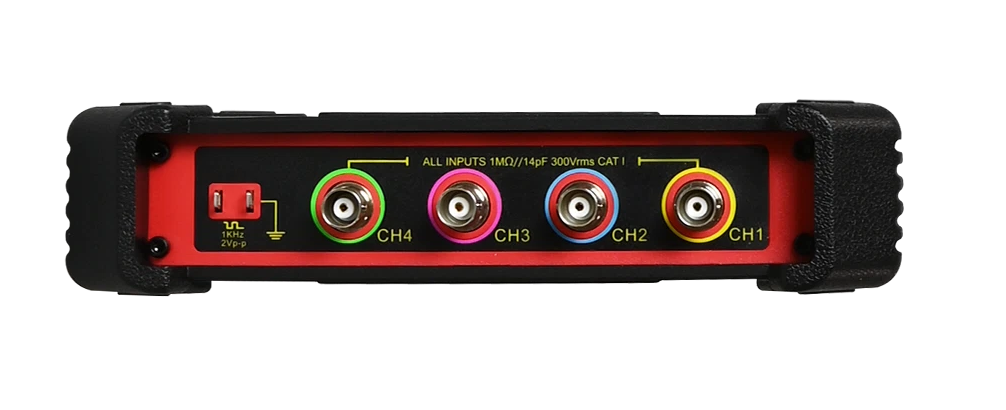

• Simultaneous 4-channel signal analysis – monitor and compare multiple electrical signals.
• Sensor and actuator diagnostics – check signal waveforms and identify operating irregularities.
• Electrical signal and communication bus analysis – monitor waveforms in vehicle electrical systems.
• Intermittent fault detection – capture short-term signal disturbances and irregularities.
• 23 automatic measurements – quickly measure various waveform parameters.
• Advanced triggering functions – capture signals based on specific trigger conditions.
• Waveform recording and analysis – save and review recorded signals for further examination.
• Mathematical functions (MATH) – waveform addition, subtraction, multiplication, division and FFT analysis.

Compatibility with Launch Diagnostic Tools

The O2-2 ScopeBox is compatible with selected Launch X-431 diagnostic tools, including X-431 EURO TAB II and X-431 EURO TAB III.
Compatibility with other devices from the X-431 PRO and PAD series depends on the specific model and its support for the required oscilloscope software.

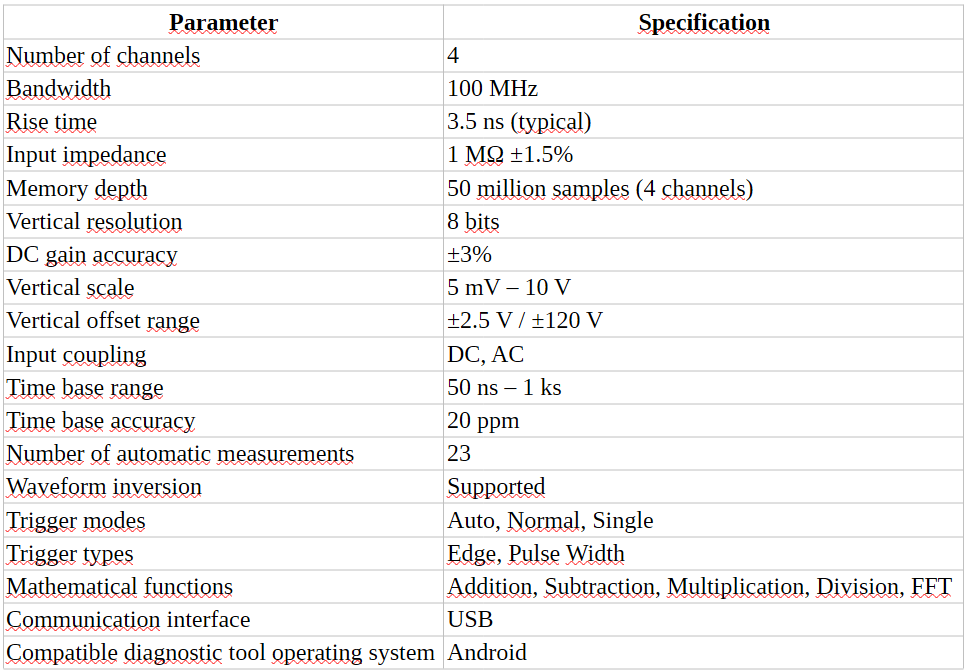

Technical Specifications

Package Contents

• LAUNCH X-431 O2-2 ScopeBox oscilloscope.

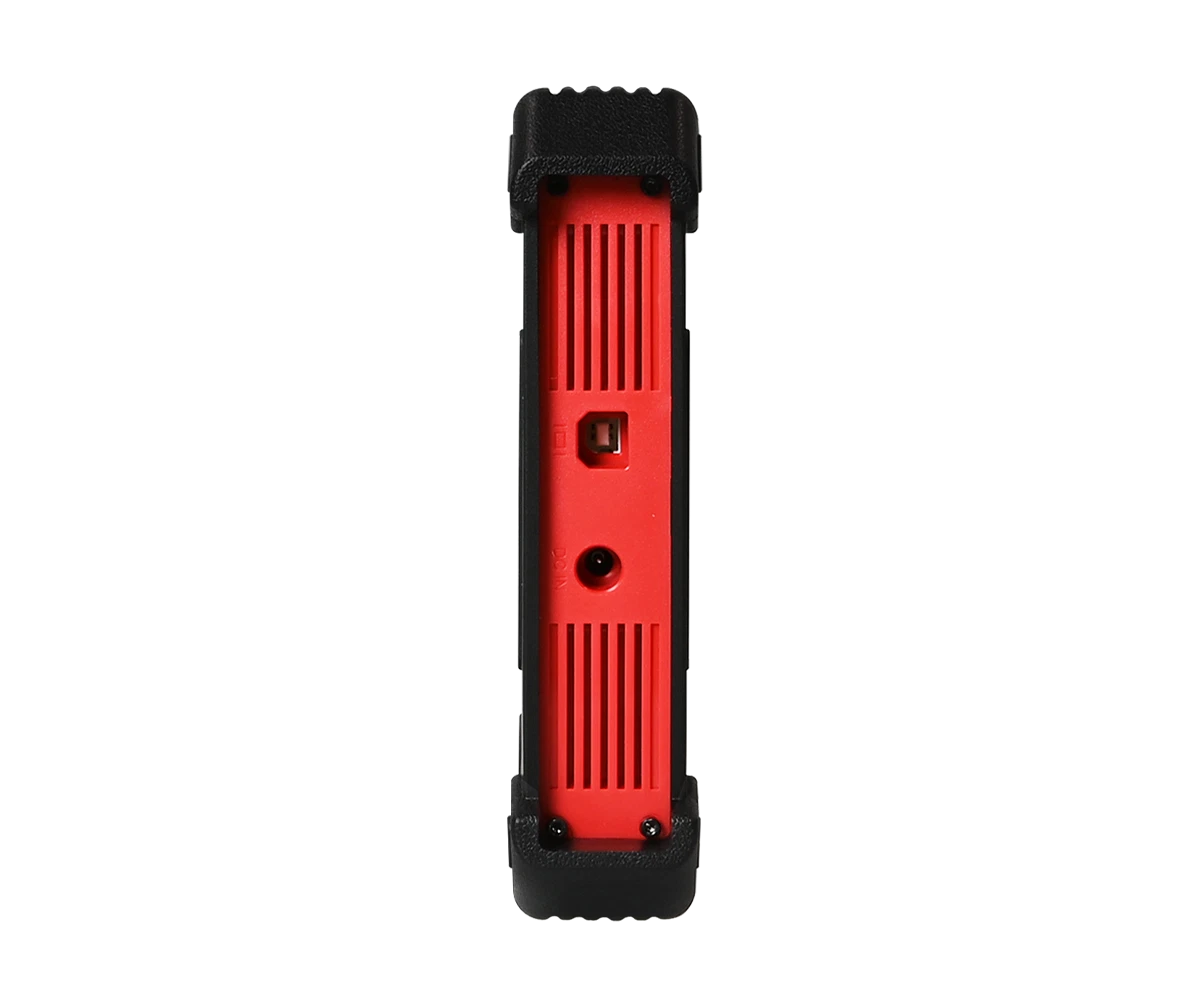

• USB cable.

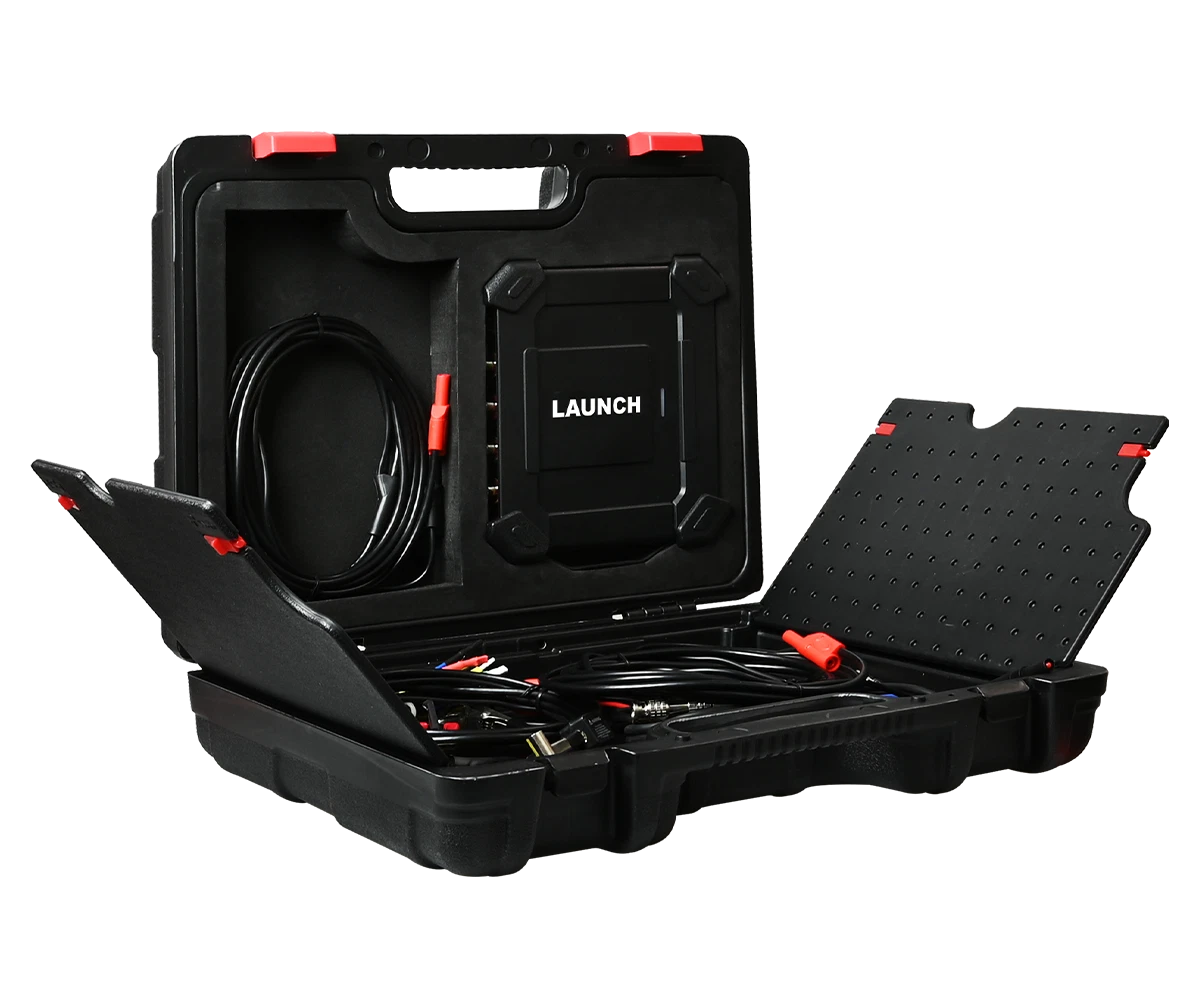

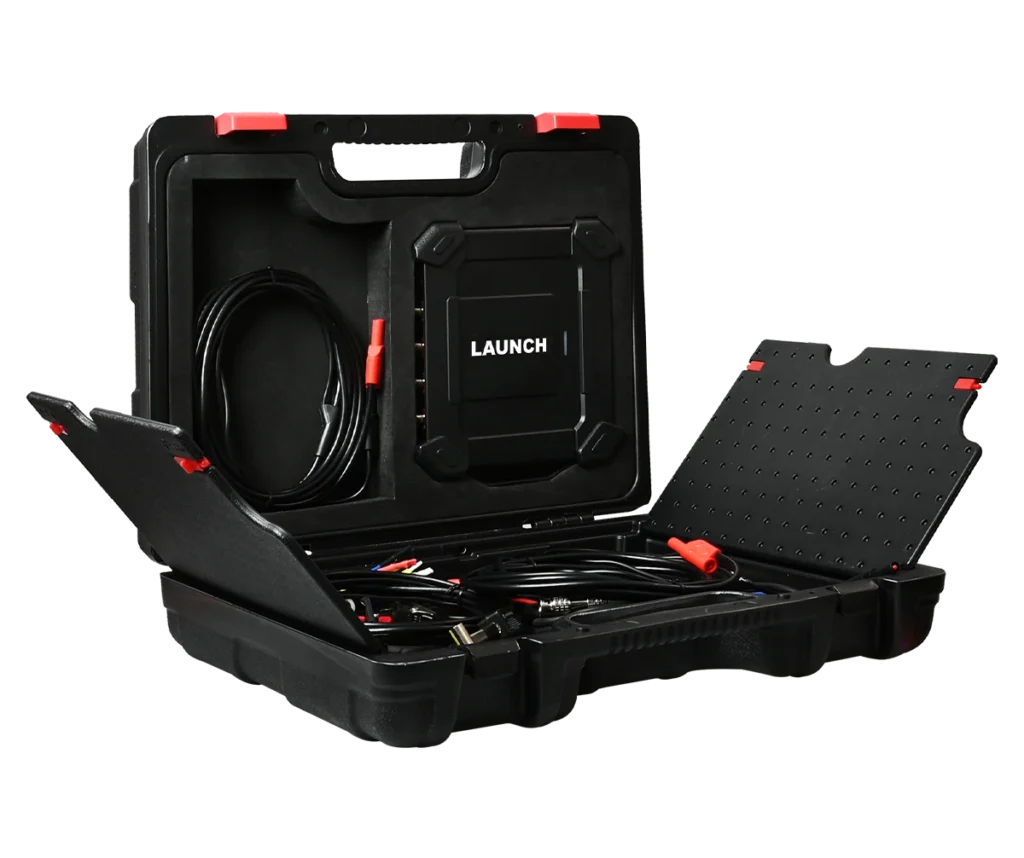

• Carrying case with compartments for accessories.
• 20:1 signal attenuator.
• BNC test cables.
• Test cable with alligator clip.
• Alligator clips.
• Test probes.
• Back-probing pin set for connectors.
• 3 touchscreen styluses.
• Original manufacturer’s packaging.
